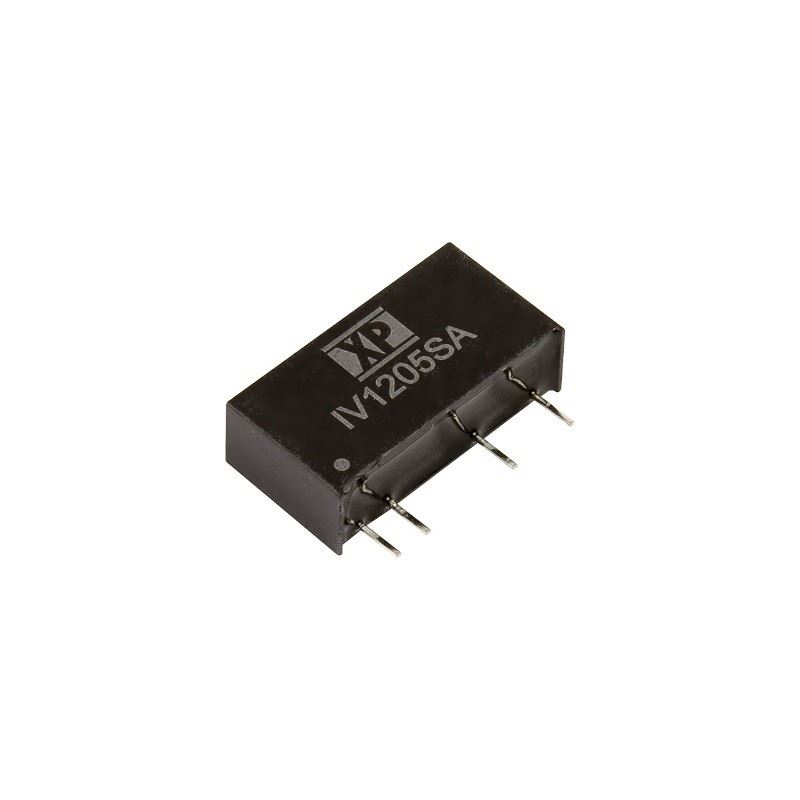

DC/DC Converter XP Power serie IV

Download Documenti

IV.pdf

Caratteristiche:

DC/DC Converter XP Power 1W serie IV


DC/DC Converter XP Power 1W serie IV.

Caratteristiche:

- Uscita singola e doppia
- Temperatura operativa -40 °C - +85 °C
- Formato SIP o DIP
- Isolamento 3000 VDC
- Isolamento opzionale 4000 & 6000 VDC
- MTBF >1.1 MHrs
- 3 anni di garanzia

Model Name Input Output Power
IV0503SA 4.5 to 5.5 Vdc 3.3 V / 0.3 A 1.0W
IV0505SA 4.5 to 5.5 Vdc 5 V / 0.2 A 1.0W
IV0509SA 4.5 to 5.5 Vdc 9 V / 0.112 A 1.0W
IV0512SA 4.5 to 5.5 Vdc 12 V / 0.084 A 1.0W
IV0515SA 4.5 to 5.5 Vdc 15 V / 0.066 A 1.0W
IV0524SA 4.5 to 5.5 Vdc 24 V / 0.042 A 1.0W
IV1203SA 10.8 to 13.2 Vdc 3.3 V / 0.3 A 1.0W
IV1205SA 10.8 to 13.2 Vdc 5 V / 0.2 A 1.0W
IV1209SA 10.8 to 13.2 Vdc 9 V / 0.112 A 1.0W
IV1212SA 10.8 to 13.2 Vdc 12 V / 0.084 A 1.0W
IV1215SA 10.8 to 13.2 Vdc 15 V / 0.066 A 1.0W
IV1224SA 10.8 to 13.2 Vdc 24 V / 0.042 A 1.0W
IV2403SA 21.6 to 26.4 Vdc 3.3 V / 0.3 A 1.0W
IV2405SA 21.6 to 26.4 Vdc 5 V / 0.2 A 1.0W
IV2409SA 21.6 to 26.4 Vdc 9 V / 0.112 A 1.0W
IV2412SA 21.6 to 26.4 Vdc 12 V / 0.084 A 1.0W
IV2415SA 21.6 to 26.4 Vdc 15 V / 0.066 A 1.0W
IV2424SA 21.6 to 26.4 Vdc 24 V / 0.042 A 1.0W
IV4803SA 43.2 to 52.8 Vdc 3.3 V / 0.3 A 1.0W
IV4805SA 43.2 to 52.8 Vdc 5 V / 0.2 A 1.0W
IV4809SA 43.2 to 52.8 Vdc 9 V / 0.112 A 1.0W
IV4812SA 43.2 to 52.8 Vdc 12 V / 0.084 A 1.0W
IV4815SA 43.2 to 52.8 Vdc 15 V / 0.066 A 1.0W
IV4824SA 43.2 to 52.8 Vdc 24 V / 0.042 A 1.0W

Scheda tecnica

APPLICAZIONI
DC-DC
Industriale
POTENZA
1W-5W
USCITA
Doppia
Singola
TIPOLOGIA DI PRODOTTO
DIP
SIP
CAMPI DI APPLICAZIONE
Industriale
