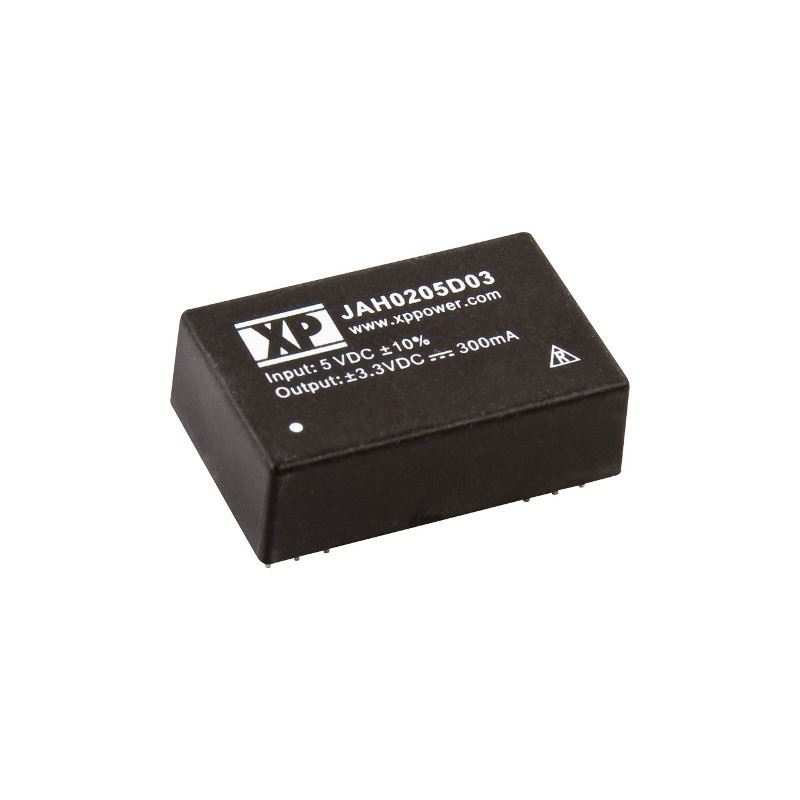

DC/DC Converter XP Power serie JAH02

Download Documenti

JAH02.pdf

Caratteristiche:

DC/DC Converter XP Power 2W serie JAH02


DC/DC Converter XP Power 2W serie JAH02.

Caratteristiche:

- Basso costo
- Formato DIP24
- Temperatura operativa -40 °C to +100 °C
- Uscita singola e doppia
- Involucro metallico opzionale
- Isolamento opzionale 6000 VDC
- 3 anni di garanzia

Model Name Input Output Power
JAH0205D03 4.5 to 5.5 Vdc 3.3 V / 0.3 A 2W
-3.3 V / 0.3 A
JAH0205D05 4.5 to 5.5 Vdc 5 V / 0.2 A 2W
-5 V / 0.2 A
JAH0205D09 4.5 to 5.5 Vdc 9 V / 0.111 A 2W
-9 V / 0.111 A
JAH0205D12 4.5 to 5.5 Vdc 12 V / 0.083 A 2W
-12 V / 0.083 A
JAH0205D15 4.5 to 5.5 Vdc 15 V / 0.067 A 2W
-15 V / 0.067 A
JAH0205D24 4.5 to 5.5 Vdc 24 V / 0.042 A 2W
-24 V / 0.042 A
JAH0205S05 4.5 to 5.5 Vdc 5 V / 0.4 A 2W
JAH0205S09 4.5 to 5.5 Vdc 9 V / 0.222 A 2W
JAH0205S12 4.5 to 5.5 Vdc 12 V / 0.166 A 2W
JAH0205S15 4.5 to 5.5 Vdc 15 V / 0.133 A 2W
JAH0205S24 4.5 to 5.5 Vdc 24 V / 0.083 A 2W
JAH0205S3V3 4.5 to 5.5 Vdc 3.3 V / 0.5 A 2W
JAH0212D03 10.8 to 13.2 Vdc 3.3 V / 0.3 A 2W
-3.3 V / 0.3 A
JAH0212D05 10.8 to 13.2 Vdc 5 V / 0.2 A 2W
-5 V / 0.2 A
JAH0212D09 10.8 to 13.2 Vdc 9 V / 0.111 A 2W
-9 V / 0.111 A
JAH0212D15 10.8 to 13.2 Vdc 15 V / 0.067 A 2W
-15 V / 0.067 A
JAH0212D24 10.8 to 13.2 Vdc 24 V / 0.042 A 2W
-24 V / 0.042 A
JAH0212S05 10.8 to 13.2 Vdc 5 V / 0.4 A 2W
JAH0212S09 10.8 to 13.2 Vdc 9 V / 0.222 A 2W
JAH0212S12 10.8 to 13.2 Vdc 12 V / 0.166 A 2W
JAH0212S15 10.8 to 13.2 Vdc 15 V / 0.133 A 2W
JAH0212S24 10.8 to 13.2 Vdc 24 V / 0.083 A 2W
JAH0212S3V3 10.8 to 13.2 Vdc 3.3 V / 0.5 A 2W
JAH0224D03 21.6 to 26.4 Vdc 3.3 V / 0.3 A 2W
-3.3 V / 0.3 A
JAH0224D05 21.6 to 26.4 Vdc 5 V / 0.2 A 2W
-5 V / 0.2 A
JAH0224D09 21.6 to 26.4 Vdc 9 V / 0.111 A 2W
-9 V / 0.111 A
JAH0224D12 21.6 to 26.4 Vdc 12 V / 0.083 A 2W
-12 V / 0.083 A
JAH0224D15 21.6 to 26.4 Vdc 15 V / 0.067 A 2W
-15 V / 0.067 A
JAH0224D24 21.6 to 26.4 Vdc 24 V / 0.042 A 2W
-24 V / 0.042 A
JAH0224S05 21.6 to 26.4 Vdc 5 V / 0.4 A 2W
JAH0224S09 21.6 to 26.4 Vdc 9 V / 0.222 A 2W
JAH0224S12 21.6 to 26.4 Vdc 12 V / 0.166 A 2W
JAH0224S15 21.6 to 26.4 Vdc 15 V / 0.133 A 2W
JAH0224S24 21.6 to 26.4 Vdc 24 V / 0.083 A 2W
JAH0224S3V3 21.6 to 26.4 Vdc 3.3 V / 0.5 A 2W

Scheda tecnica

APPLICAZIONI
DC-DC
Industriale
POTENZA
1W-5W
USCITA
Doppia
Singola
TIPOLOGIA DI PRODOTTO
DIP
CAMPI DI APPLICAZIONE
Industriale
