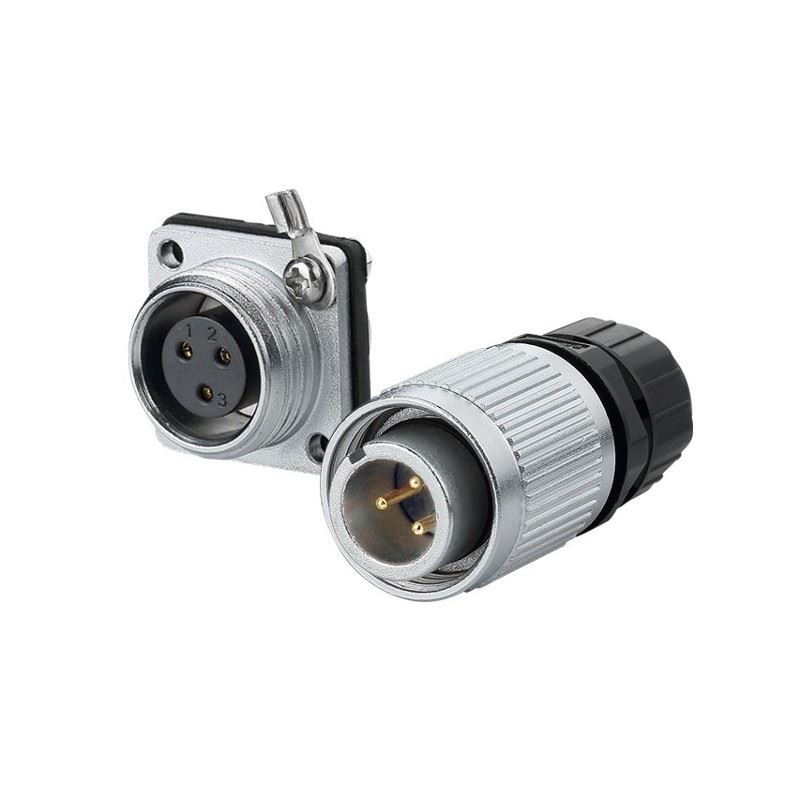

Connettori industriali waterproof serie YW-16 CnLinko
Caratteristiche:
Connettori industriali waterproof serie YW-16 CnLinko IP65/67
Caratteristiche:
- Cover in lega di zinco;
- Fissaggio a vite;
- Prese opzionali (maschio e femmina);
- Componenti di isolamento PBT ad alta performance;
- Waterproof: IP65/67;
- Chiusura a spirale;
- Prese maschio e femmina.
Product parameter | |
Threaded connection | |
Part NO. | YW-16 |
Wire specification | 1.0m??1.5m?/14?12 AWG |
Line diameter range | Φ3mm?Φ7mm |
Diameter×number | Φ1.5×3 |

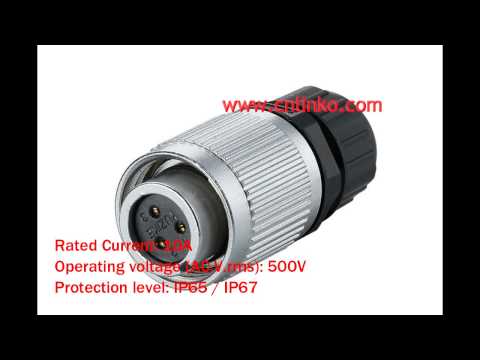

Rated current(A) | 10A |
Operation voltage(AC.V.RMS) | 500V |
Contact resistance | <2.5mΩ |
Temperature rise | 10Aper contact at 30?, 12A......40?, 15A......50?. |
Withstand voltage (AC.V)1minute | 2500V |
Insulation resistance | ?500MΩ |
Protection level | IP65/IP67 |
Mating cycle | ≥500times |
Working temperature | -40??80? |
Connection mode | Threaded connection |
Wiring mode | Welding / Crimping |
Material | |
Insulation components | High-performance engineering plastics |
Hardware | Zinc alloy?Nickel Plating? |
PIN | Copper alloy | gold plating |
Waterproof circle | Silica gel |
Flame retardant grade | UL94-V0 |
Scheda tecnica
- APPLICAZIONI
- IP
Industriale - TIPOLOGIA DI CONTATTO
- A crimpare
A saldare - IMPIEGO
- Connessione Segnali
Connessione di Potenza - CAMPI DI APPLICAZIONE
- Industriale
