Caratteristiche:

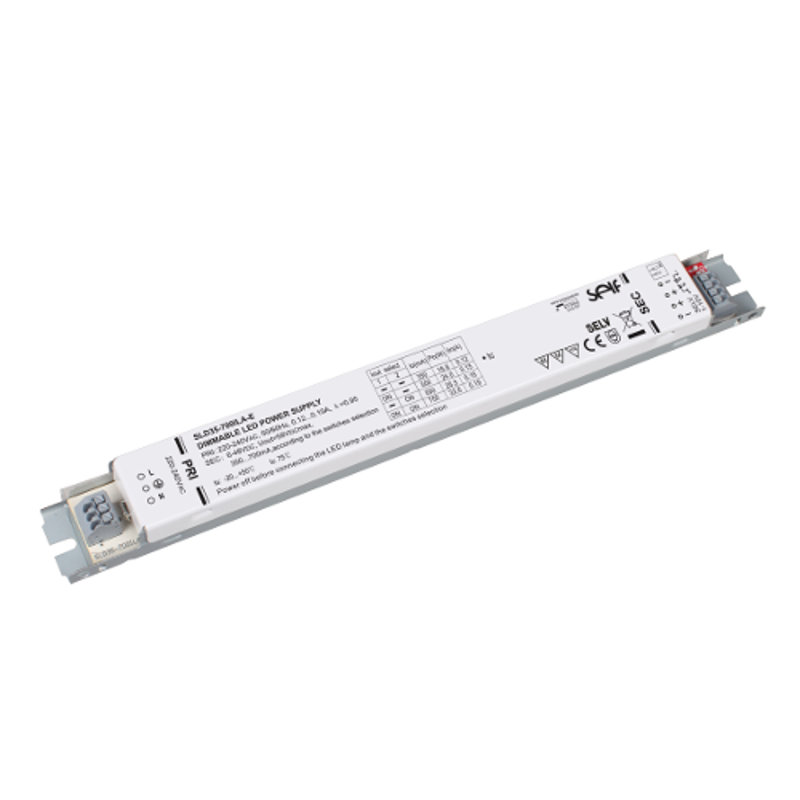

LED Driver Self Electronics CC 35W 700mA IP20 uscita regolabile

Led driver Self Electronics corrente costante.

Caratteristiche:

- Slim design with height of 21mm
- Adjustable output current by dipswitch
- Dipswitch provides variety of output currents: 350mA,500mA,550mA,700mA
- Metal housing class I power supply for constant current LED lamp
- 10-100% dimming range by 150kΩ potentiometer or 1-10V dimmer(electronic potentiometer)
- Quick connection terminal for wire cross selection 0.5-0.75mm2
- Open circuit?short circuit?overload and over-temperature protection
- Auto restart after removal of fault conditions
- SELV output(<60V)
- Surge protection voltage 2 kV (L to N),4 kV (L/N to earth)
- Efficiency:86%?AC230V?full load?

Standards:

- EN 61347-1
- EN 61347-2-13
- EN 61547
- EN 55015
- EN 61000-3-2
- EN 61000-3-3
- EN62384
- EN62493

Scheda tecnica

APPLICAZIONI
AC-DC
CORRENTE
700mA
CARATTERISTICHE
Lineare
