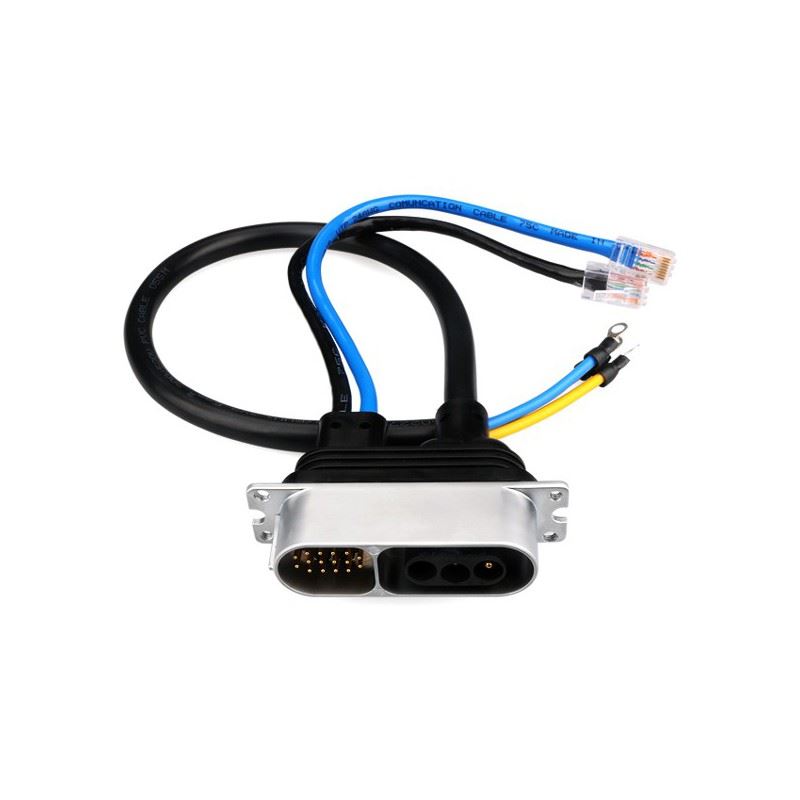

CnLinko waterproof wire connectors IP65/67

Features:

CnLinko waterproof wire connectors IP65/67


Features:

- Multi-type: multi-core power supply, signal, data
- Multi-material: shell + optional plastic/metal/plastic + metal;
- Multi-core customization (single multi-core power supply, RJ45, data, optical fiber, multi-type mixing);
- Multi-type connector optional:
- Multi-environment customization: waterproof version available;

Core advantages:

- Dustproof
- Waterproof
- High quality wires
- Ideal for different applications
- Available in different versions

Product parameter
Wire specification 2.5mm2-4mm2/0.15mm2-0.2mm2
Line diameter range Φ8mm-Φ12mm
Diameter×number Φ2.7×3/8pin
Rated current(A) 20A
Operation voltage(AC.V.RMS) 500V
Contact resistance 3pin<1mΩ /16pin<30mΩ
Temperature rise 25A......40°C, 30A......50°C
Withstand voltage (AC.V)1minute 3pin:2500V/16pin:1000V
Insulation resistance ?500MΩ
Protection level IP65/IP67
The number of durable ≥500times
Working temperature -40°C-80°C
Connection mode Quick plug connection
Wiring mode welded
Material
Insulation components High-performance engineering plastics
Hardware Aluminum alloy
PIN Copper alloy; gold plating
Waterproof circle Silicone
Flame retardant grade UL94-V0

Data sheet

Applications
IP
Industrial
CONNECTION MODE
Solder
WIRING MODE
Wired Connectors
FIELD OF APPLICATION
Industrial
