CnLinko industrial waterproof connectors YW-20 series

Features:

CnLinko industrial waterproof connectors YW-20 series IP65/67


Features:

- Zinc alloy cover to shield signal;
- Screwing fastening method;
- Optional sockets (male socket and female socket);
- High-performance PBT insulation components;
- Claw-fastening design in the tail part;
- Waterproof aprons.

Core advantages:

- Spiral locking;
- Waterproof: IP65/67;
- Multi-core selection;
- Male and female plug;
- Easy to plug and unplug.

Product parameter
Part NO. YW-20
Wire specification 2.5mm2-4mm2/14-12 AWG
Line diameter range Φ8mm-Φ12mm
Diameter×number Φ2.7×2
Rated current(A) 20A
Operation voltage(AC.V.RMS) 500V
Contact resistance <1mΩ
Temperature rise 20Aper contact at 30°C, 25A......40°C, 30A......50°C
Withstand voltage (AC.V)1minute 2500V
Insulation resistance >500MΩ
Protection level IP65/IP67
Mating cycle ≥500times
Working temperature -40°C-80°C
Connection mode Threaded connection
Wiring mode Welding / Crimping
Material
Insulation components High-performance engineering plastics
Hardware Zinc alloy; Nickel Plating
PIN Copper alloy; gold plating
Waterproof circle Silica gel
Flame retardant grade UL94-V0

Data sheet

Applications
IP
Industrial
CONNECTION MODE
Crimp
Solder
WIRING MODE
Power Connectors
Signal Connectors
FIELD OF APPLICATION
Industrial

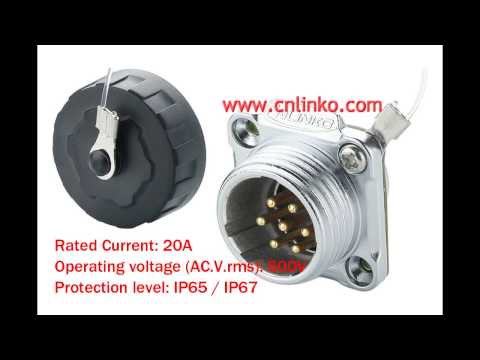

Video
