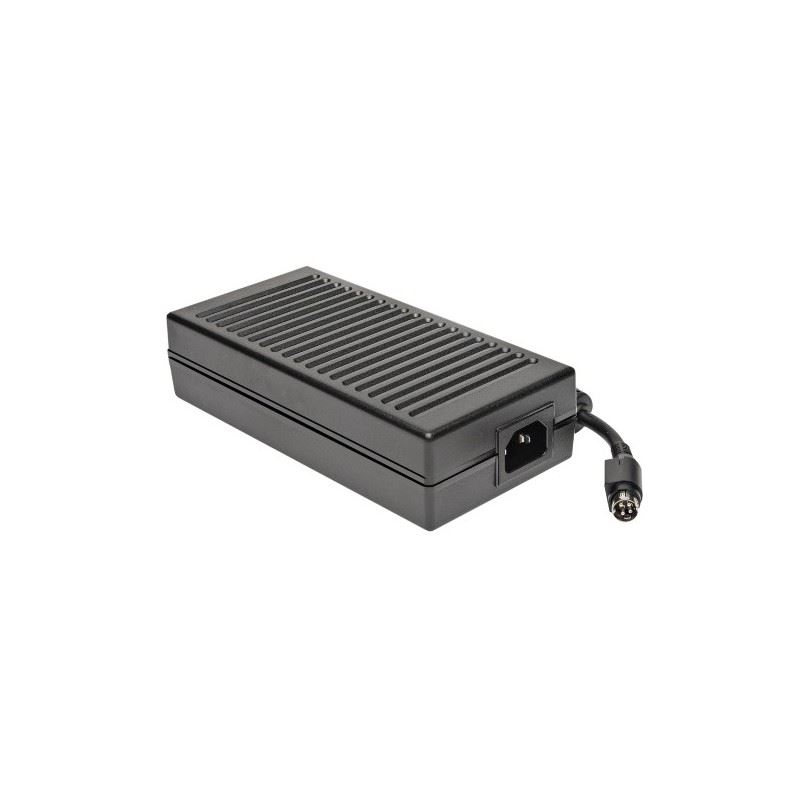

TDK-Lambda DTM Desktop Power Supplies

Features:

TDK-Lambda Medical AC-DC External Power Supplies 40W to 300W


The DTM medical external power supplies are housed in a rugged plastic case and are rated from 40 to 300W with output voltages from 5V to 54V. With off-load power draws as low as <0.21W and high average efficiencies, the units are compliant to ErP Directives and the DoE Level V and VI standards. The DTM65-C8 has Class II operation (no ground wire) and is suitable for home healthcare applications.


Features:

- ErP, CEC and EISA Compliant Models
- Wide Range AC Input
- Medical Certifications

Part numberPower (W)Output infoConstruction
DTM65PW050C8405V / 8AEnclosed Plug in
DTM65PW120C6012V / 5AEnclosed Plug in
DTM65PW120C86012V / 5AEnclosed Plug in
DTM110PW120C9012V / 7.5AEnclosed Plug in
DTM165PW120C16012V / 13.333AEnclosed Plug in
DTM300PW-120D130012V / 25AEnclosed Plug in
DTM300PW-120D230012V / 25AEnclosed Plug in
DTM110PW135C9013.5V / 6.67AEnclosed Plug in
DTM65PW150C6015V / 4AEnclosed Plug in
DTM65PW150C86015V / 4AEnclosed Plug in
DTM110PW150C10015V / 6.67AEnclosed Plug in
DTM165PW150C16015V / 10.67AEnclosed Plug in
DTM65PW180C6518V / 3.6AEnclosed Plug in
DTM65PW190C86519V / 3.42AEnclosed Plug in
DTM110PW190C11019V / 5.8AEnclosed Plug in
DTM165PW190C16019V / 8.42AEnclosed Plug in
DTM300PW-190D130019V / 15.79AEnclosed Plug in
DTM300PW-190D230019V / 15.79AEnclosed Plug in
DTM110PW200C11020V / 5.5AEnclosed Plug in
DTM65PW240C86524V / 2.7AEnclosed Plug in
DTM65PW240C6524V / 2.8AEnclosed Plug in
DTM110PW240C11024V / 4.6AEnclosed Plug in
DTM165PW240C16024V / 6.88AEnclosed Plug in
DTM300PW-240D130024V / 12.5AEnclosed Plug in
DTM300PW-240D230024V / 12.5AEnclosed Plug in
DTM65PW280C86528V / 2.32AEnclosed Plug in
DTM165PW280C16028V / 5.89AEnclosed Plug in
DTM300PW-280D130028V / 10.71AEnclosed Plug in
DTM300PW-280D230028V / 10.71AEnclosed Plug in
DTM65PW360C6536V / 1.8AEnclosed Plug in
DTM165PW360C16036V / 4.58AEnclosed Plug in
DTM65PW480C6548V / 1.35AEnclosed Plug in
DTM65PW480C86548V / 1.35AEnclosed Plug in
DTM165PW480C16048V / 3.44AEnclosed Plug in
DTM300PW-480D130048V / 6.25AEnclosed Plug in
DTM300PW-480D230048V / 6.25AEnclosed Plug in
DTM300PW-540D130054V / 5.56AEnclosed Plug in
DTM300PW-540D230054V / 5.56AEnclosed Plug in

Data sheet

Applications
AC-DC
POWER
100W – 150W
150W – 300W
OUTPUT
Single
PRODUCT RANGE
External
FIELD OF APPLICATION
Medical
