Medical and Industrial IT Approvals EN60601 and EN 62368-1
Wide 4:1 Input Range
Compact 1.6” x 1” Industry Package
Temperature range -40 °C a +105 °C
Full load up to 55 °C Ambient temperature
5000 VAC insulation, 2 x MOPP ; 250 VAC
2.5 µA current leakage
5 years warranty

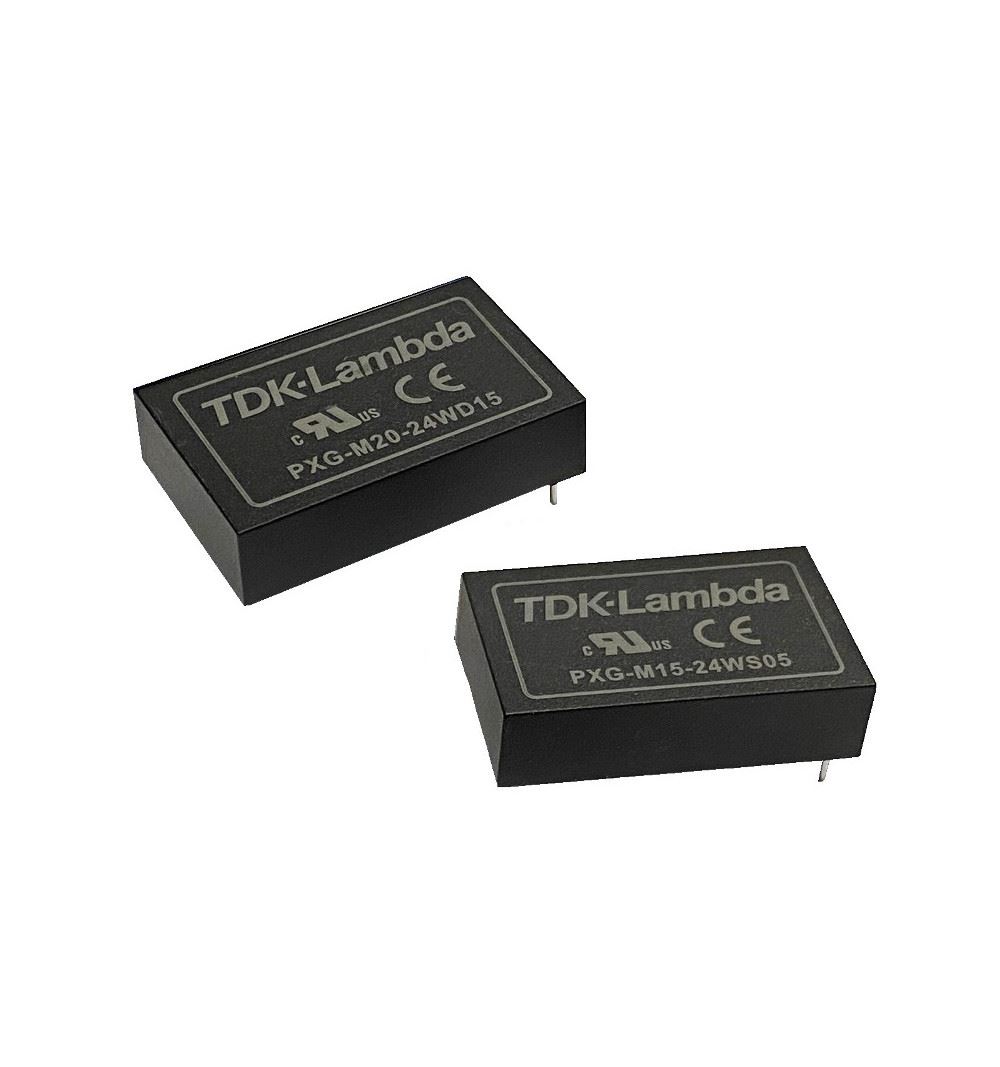

TDK-Lambda PXG-M15-24WD05 Medical DC/DC Converter 15watt 5Vdc; -5Vdc; 1,5A; -1,5A
PXG-M15-24WD05
Features:
Medical and Industrial IT Approvals EN60601 and EN 62368-1
Wide 4:1 Input Range
Compact 1.6” x 1” Industry Package
Temperature range -40 °C a +105 °C
Full load up to 55 °C Ambient temperature
5000 VAC insulation, 2 x MOPP ; 250 VAC
2.5 µA current leakage
5 years warranty
TDK-Lambda PXG-M15-24WD05 Medical DC/DC Converter 15watt 5Vdc; -5Vdc; 1,5A; -1,5A
PXG-M15-24WD05
Data sheet
- Applications
- Medical
- POWER
- 15watt
- VOLTAGE OUT
- -5Vdc
5Vdc - CURRENT
- -1,5A
1,5A - VOLTAGE IN
- 9-36Vdc
- NUMBER OF OUTPUTS
- 2
- CASE
- DIP
- PROTECTION LEVEL
- no IP
- WEIGHT (kg)
- 0,024
- LENGTH (cm)
- 4,06
- WIDTH (cm)
- 2,54
- HEIGHT (cm)
- 1,02
- MANUFACTURER CODE
- PXG-M15-24WD05
