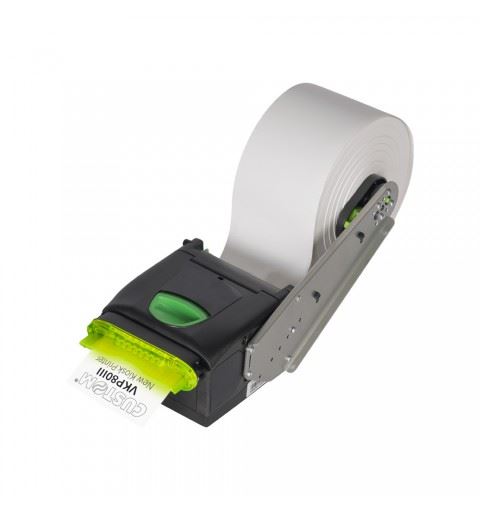

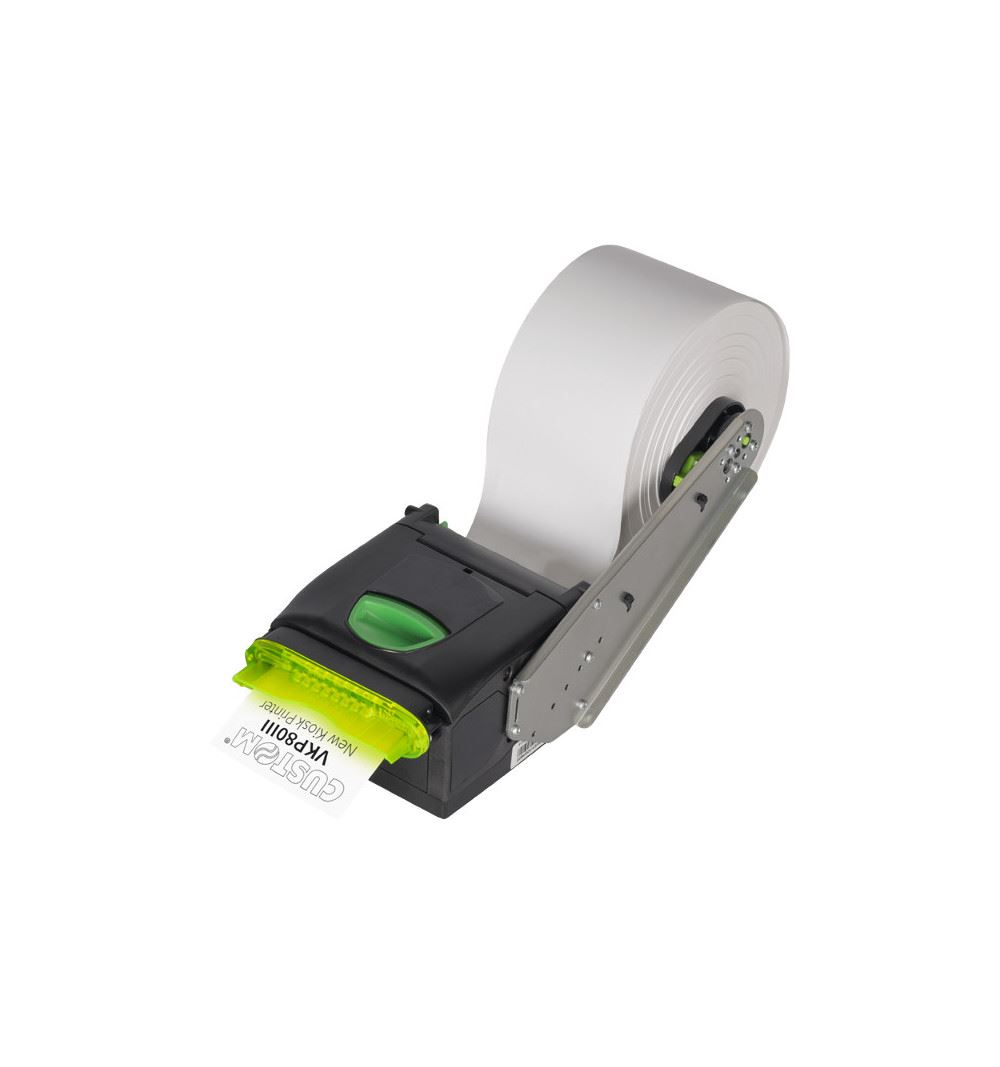

Custom VKP80III Kiosk Printer 80mm USB/ RS232 rear connector

915DX010700300

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

The most compact kiosk printer: only 116x143x76 mm

Flexible: roll holder separate from the printer body, with ergonomic system for paper loading from the right or left side, suitable for all types of kiosks

Connectors available on the left side (standard) or back side (optional)

Anti-jamming system with printer clean command and jam removal

Automatic ticket Presenter

Retracting function without ticket presentation

Hot swap function: the printer can be removed from the kiosk without powering it off

Special VeriNotch and TopNotch sensors (optional)

Print head with auto-diagnostic function: it is possible to get the number of non-working dots

Label management: transparent alignment exploiting the mobile notch sensor and the paper sensor

The most compact kiosk printer: only 116x143x76 mm Flexibles: roll support separated from the printer body with ergonomic paper loading on the right or left side, perfect for any type of kiosk Connectors available on the left side (standard) or on the back (optional) Anti-jamming system with jam removal printer control Automatic ticket issue and withdrawal Collection function without ticket presentation Hot swap function: it is possible to remove the printer from the kiosk without turning it off VeriNotch and TopNotch special sensors (optional) Print head with self-diagnosis function: it is possible to obtain the number of non-functioning dots Label management: transparency alignment using the mobile notch sensor and the paper presence sensor

915DX010700300

Data sheet

Applications
Self-Payment & Info Kiosk
VOLTAGE IN
24Vdc
CASE
Plastico
WEIGHT (kg)
0,8
LENGTH (cm)
14,35
WIDTH (cm)
7,64
HEIGHT (cm)
11,6
MANUFACTURER CODE
915DX010700300
