Anti Jamming System
Automatic Status Back
Adjustable paper infeed for different paper widths
Self-balancing paper roll holder
Illuminated paper bezel
Multi-position paper roll
The standard roll holder handles paper rolls with a diameter of up to 180mm, but the powerful printer motor is capable of handling paper rolls up to 300 mm in diameter
Automatic ticket Presenter
Automatic ticket retracting
Operating temperatures -20 +70°C±10%

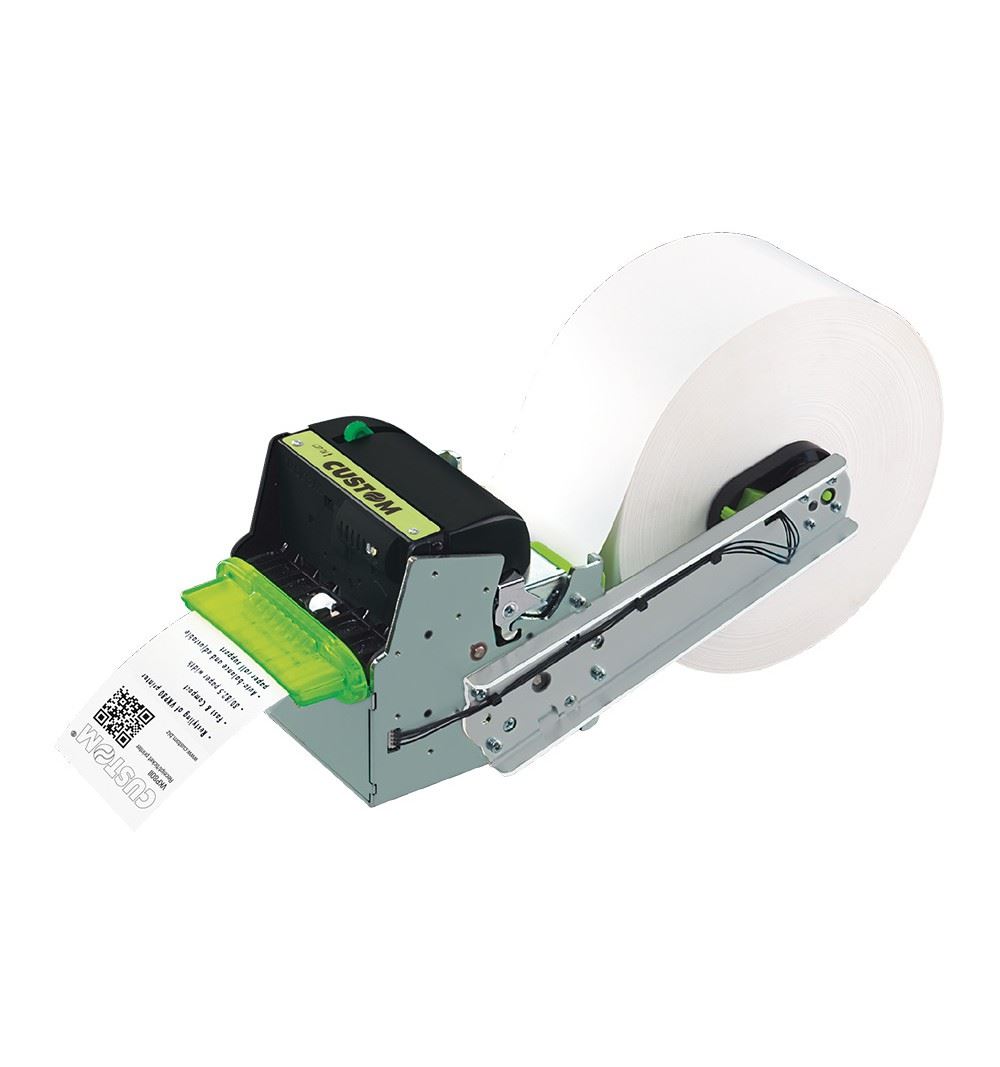

Custom VKP80II SX Kiosk Printer 80mm USB/ RS232 24Vdc
915DW011000300
Features:
Anti Jamming System
Automatic Status Back
Adjustable paper infeed for different paper widths
Self-balancing paper roll holder
Illuminated paper bezel
Multi-position paper roll
The standard roll holder handles paper rolls with a diameter of up to 180mm, but the powerful printer motor is capable of handling paper rolls up to 300 mm in diameter
Automatic ticket Presenter
Automatic ticket retracting
Operating temperatures -20 +70°C±10%
CUSTOM PRINTER RECEIVED / TICKETS 80MM - High print quality at 200 dpi - Paper width from 60 to 82.5mm (adjustable paper input for different paper widths) - Speed> 220 mm / sec - Automatic ticket issue and withdrawal (speed> 1000 mm / s) - High power motor for large rolls of paper (up to 300 mm Ø) - RS232 + USB / RS232 + USB + Ethernet interfaces - Printing 1D and 2D barcodes: (QRCODE, PDF417; DATAMATRIX for ETH version) - International fonts on board: any language available - 4 MB internal flash memory for logos and fonts - Highly reliable cutter: more than 1,500,000 cuts - Sensors: paper end, black mark, ticket presence, printing unit opening and almost paper end on roll support - Web server (Ethernet version)
915DW011000300
Data sheet
- Applications
- Self-Payment & Info Kiosk
- VOLTAGE IN
- 24Vdc
- CASE
- Metallico
- WEIGHT (kg)
- 1,6
- LENGTH (cm)
- 14,95
- WIDTH (cm)
- 12,12
- HEIGHT (cm)
- 12,35
- MANUFACTURER CODE
- 915DW011000300
