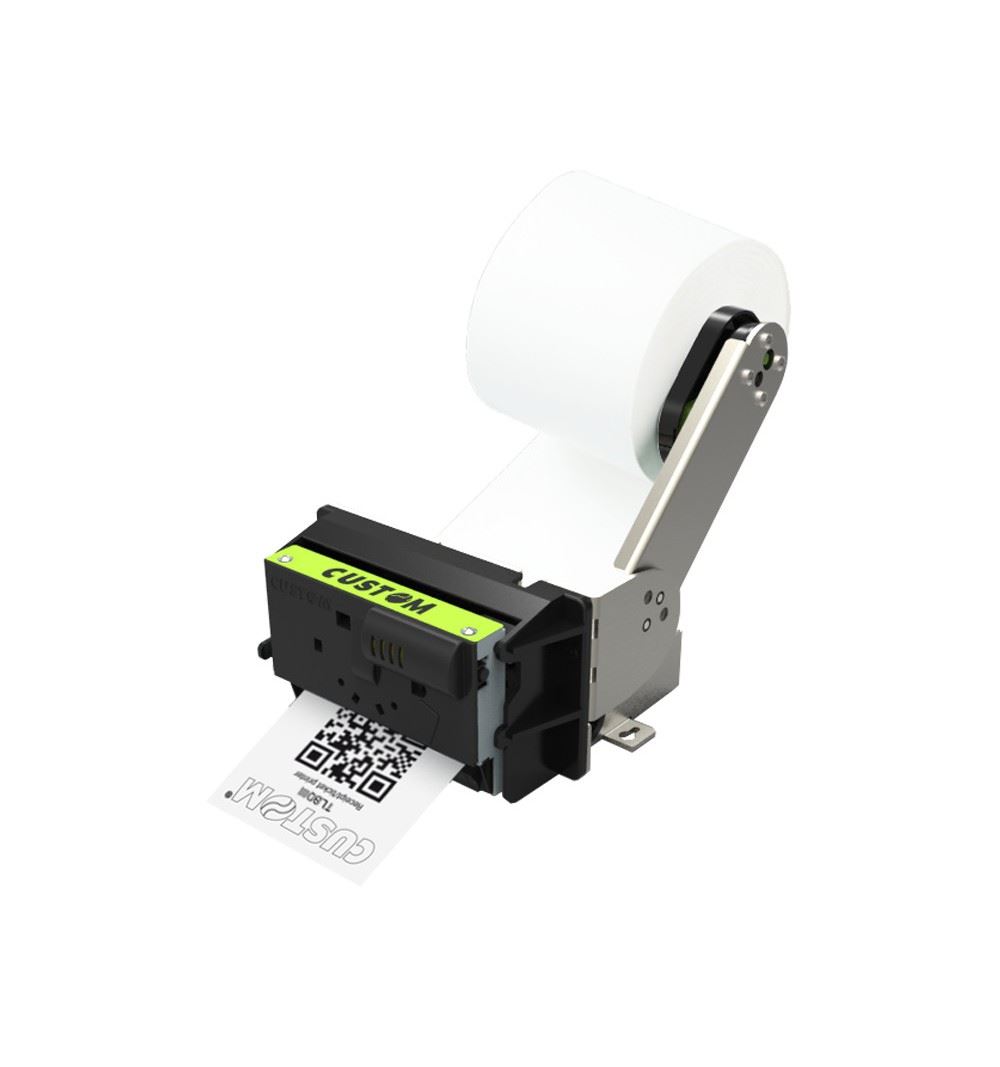

Custom TL80III RS232 Kiosk Printer USB/ RS232 24Vdc with autocutter + roll holder bracket

915CK020100300

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Extremely compact: just 77mm high

Suitable for tough environments, down to -20°C up to +70°C

Adjustable paper roll holder

Multi-position paper roll: lower, top or rear position

Paper roll diameter up to 90 mm

Metal structure that provides increased rigidity for the printing mechanism and facilitates motor heat dissipation, resulting in improved stability and reliability over time

Improved distribution of the head-roller pressure, resulting in improved printing quality

Metal frame (galvanized / aluminum alloy) High print quality at 200 dpi Paper width 80 mm Paper thickness: from 63 to 85 µm Speed> 140 mm / sec RS232 and USB interface Bar codes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE Characters: European, International, Portuguese, Nordic, Arabic, Chinese and Russian Highly reliable cutter: more than 1,000,000 cuts Sensors: paper presence, head opening and almost optional paper end
915CK020100300

Data sheet

Applications
Self-Payment & Info Kiosk
CURRENT
0,8A
VOLTAGE IN
24Vdc
CASE
Metallico
WEIGHT (kg)
0,9
LENGTH (cm)
12,87
WIDTH (cm)
13
HEIGHT (cm)
7,7
MANUFACTURER CODE
915CK020100300
New product
