300W
0-1kV through 0-60kV
Compact Module
Low Ripple
Tight Regulation
Constant Voltage/Constant Current Operation
Arc Quench & Arc Count
Air Insulated
RS232, USB, & Optional Ethernet Control
3 Year Warranty

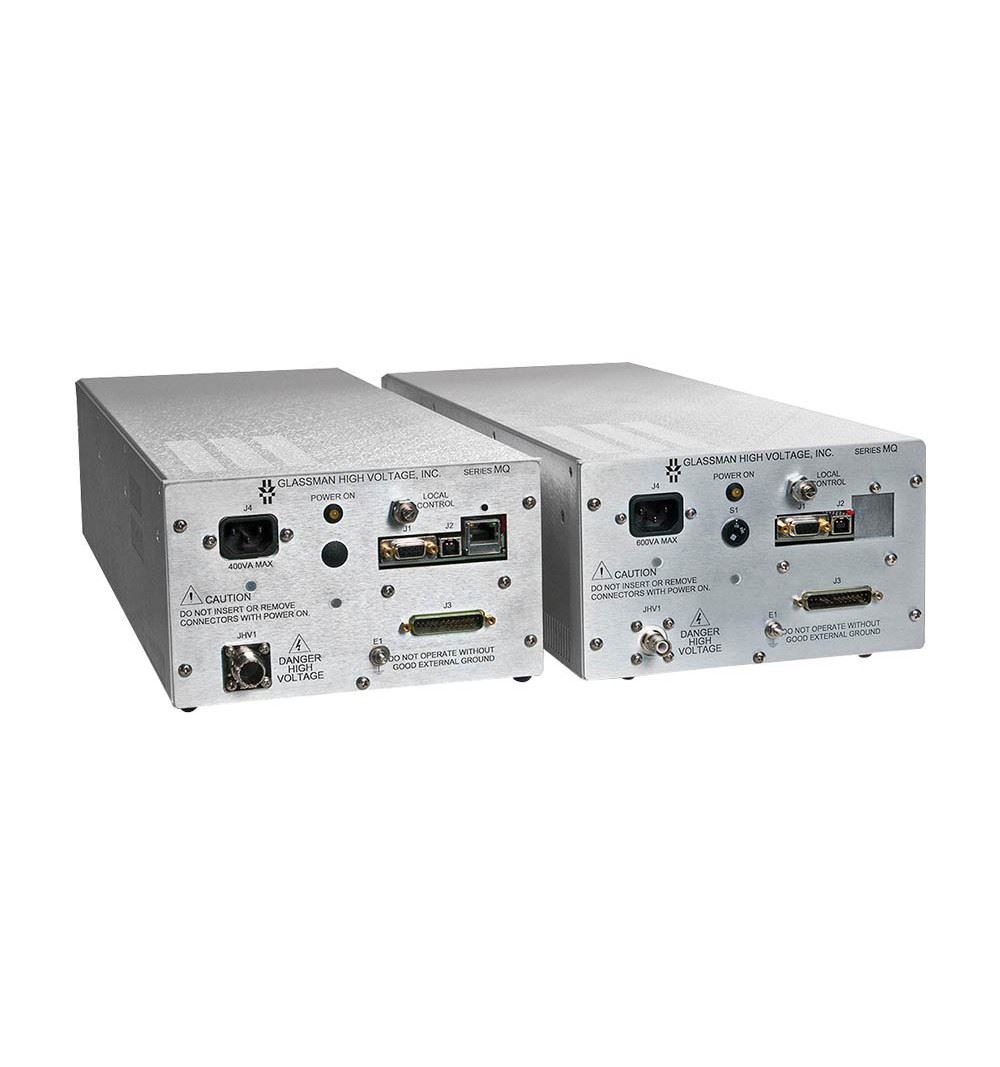

XP GLASSMAN MQ40P7.5 High Voltage Power Supply 0-40kV 0-7.5mA
MQ40P7.5
Features:
300W
0-1kV through 0-60kV
Compact Module
Low Ripple
Tight Regulation
Constant Voltage/Constant Current Operation
Arc Quench & Arc Count
Air Insulated
RS232, USB, & Optional Ethernet Control
3 Year Warranty
XP GLASSMAN MQ40P7.5 High Voltage Programmable Power Supply 0-40kV Vdc 0-7.5mA OEM Version Chassis Mount Positive Polarity - Energia Immagazzinata Cavo HV Options on Datasheet Control and Status Signals Implemented with TTL compatible, 0 to 5.5 V CMOS, positive logic circuit
MQ40P7.5
Data sheet
- Applications
- Laboratory
- POWER
- 300watt
- VOLTAGE OUT
- 0-40kV
- CURRENT
- 0-7.5mA
- VOLTAGE IN
- 180-264Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- WEIGHT (kg)
- 9
- LENGTH (cm)
- 52
- WIDTH (cm)
- 20,3
- HEIGHT (cm)
- 120
- MANUFACTURER CODE
- MQ40P7.5
New
