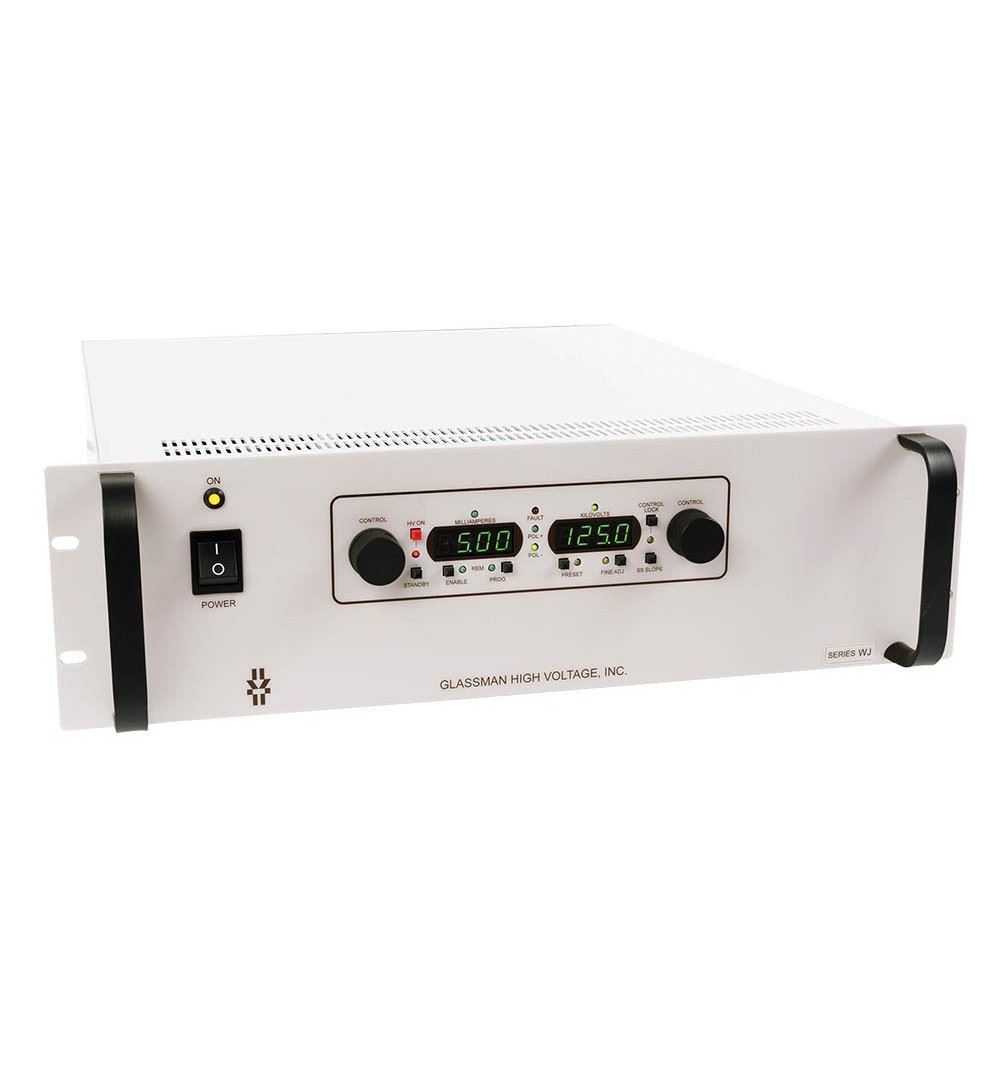

XP GLASSMAN WJ125R5 High Voltage Power Supply 0-125kV 0-5.0mA

WJ125R5

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

600W

0-70kV through 0-125kV

3U Rack Mount

Low Ripple

Tight Regulation

Constant Voltage/Constant Current Operation

Arc Quench & Arc Count

Air Insulated

RS232, USB, & Optional Ethernet Control

3 Year Warranty

XP GLASSMAN WJ125R5 High Voltage Programmable Power Supply 0-125kV Vdc 0-5.0mA Reversible Polarity Other Version : Positive Polarity - WJ125N5 Negative Polarity - Stored Energy HV Cable WJ125P5 Option in Datasheet OEM Panel - Adjustment 0-5V - Arch Counts Arc Quench - Remote control Virtual RS232-COM
WJ125R5

Data sheet

Applications
Laboratory
POWER
600watt
VOLTAGE OUT
0-125kV
CURRENT
0-5.0mA
VOLTAGE IN
198-264Vac
NUMBER OF OUTPUTS
1
CASE
Metallico
WEIGHT (kg)
10
LENGTH (cm)
52
WIDTH (cm)
43,18
HEIGHT (cm)
12,7
MANUFACTURER CODE
WJ125R5
New product
