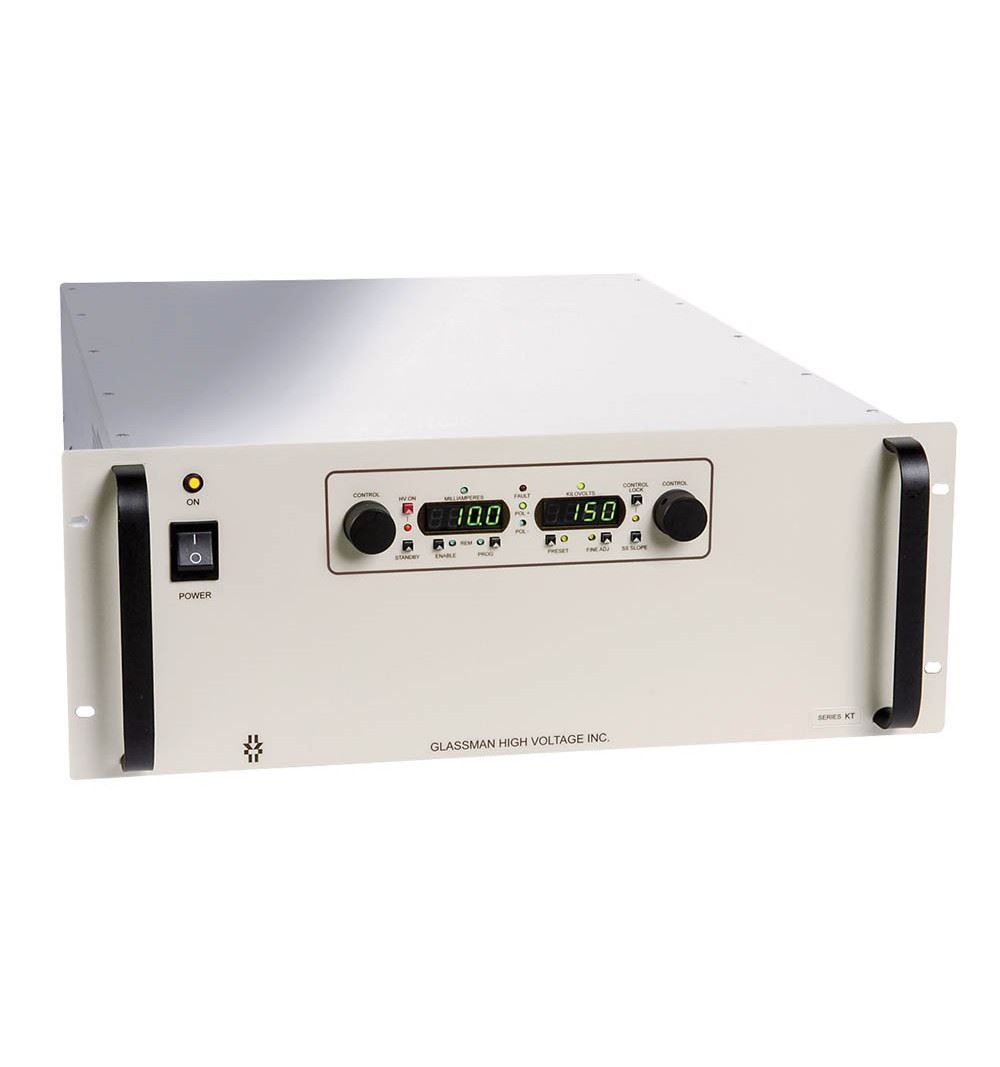

XP GLASSMAN KT80R25 High Voltage Power Supply 0-80kV 0-25mA

KT80R25

Datasheet Download

SF_KT.pdf

Features:

2000W

0-70kV through 0-150kV

4U Rack Mount

Low Ripple

Tight Regulation

Constant Voltage/Constant Current Operation

Arc Quench & Arc Count

Air Insulated

RS232, USB, & Optional Ethernet Control

3 Year Warranty


XP GLASSMAN KT80R25 High Voltage Programmable Power Supply 0-80kV Vdc 0-25mA Reversible Polarity Other Version : Positive Polarity - KT80N25 Negative Polarity - Stored Energy HV Cable KT80P25 Option in Datasheet OEM Panel - Adjustment 0-5V - Arch Counts Arc Quench - Remote control Virtual RS232-COM

KT80R25

Data sheet

Applications
Laboratory
POWER
2000Watt
VOLTAGE OUT
0-80kV
CURRENT
0-25mA
VOLTAGE IN
198-264Vac
NUMBER OF OUTPUTS
1
CASE
Metallico
WEIGHT (kg)
10
LENGTH (cm)
50,48
WIDTH (cm)
43,18
HEIGHT (cm)
12,7
MANUFACTURER CODE
KT80R25
New
