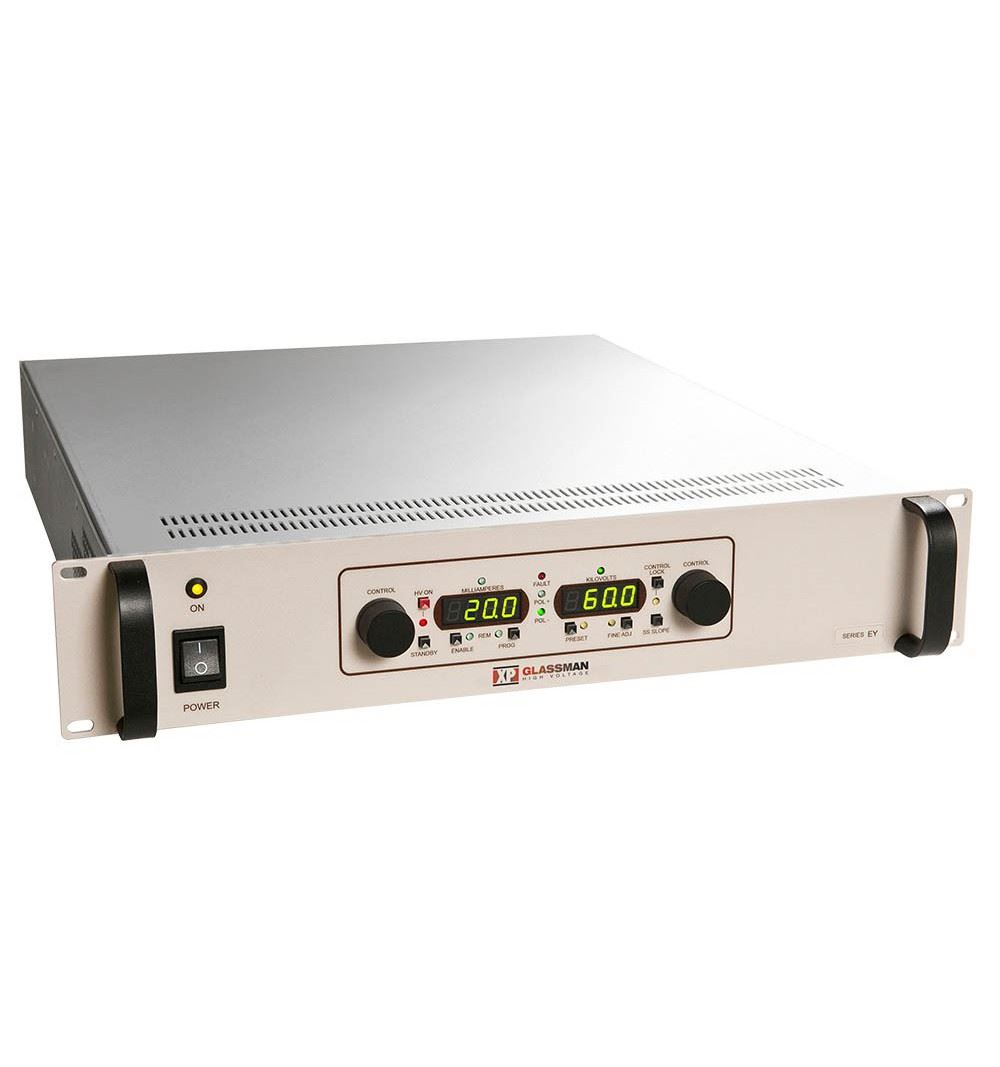

XP GLASSMAN EY5R240-22 High Voltage Power Supply 0-5kV 0-240mA

EY5R240-22

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

1200W

0-1kV through 0-60kV

2U Rack Mount

Low Ripple

Tight Regulation

Constant Voltage/Constant Current Operation

Arc Quench & Arc Count

Air Insulated

RS232, USB, & Optional Ethernet Control

3 Year Warranty

XP GLASSMAN EY5R240-22 High Voltage Programmable Power Supply 0-5KV Vdc 0-240mA Reversible Polarity Other Version : Positive Polarity - ND Negative Polarity - Stored Energy HV Cable ND Option in Datasheet OEM Panel - Adjustment 0-5V - Arch Counts Arc Quench - Remote control Virtual RS232-COM
EY5R240-22

Data sheet

Applications
Laboratory
POWER
1200watt
VOLTAGE OUT
0-5kV
CURRENT
0-240mA
VOLTAGE IN
198-264Vac
NUMBER OF OUTPUTS
1
CASE
Metallico
WEIGHT (kg)
9,09
LENGTH (cm)
50,27
WIDTH (cm)
43,37
HEIGHT (cm)
8,57
MANUFACTURER CODE
EY5R240-22
New product
