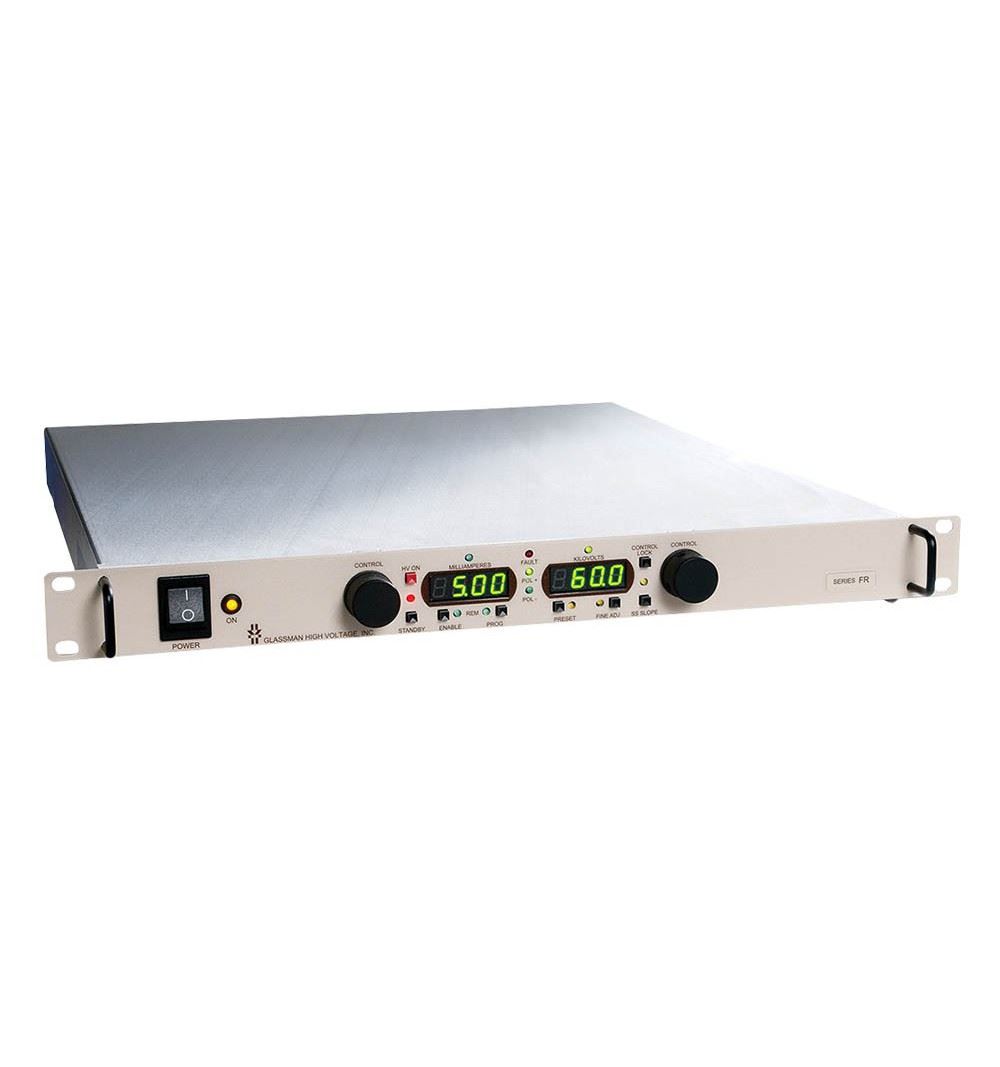

XP GLASSMAN FR50R6 High Voltage Power Supply 0-50kV 0-6mA

FR50R6

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

300W

0-1kV through 0-60kV

1U Rack Mount

Low Ripple

Tight Regulation

Constant Voltage/Constant Current Operation

Arc Quench & Arc Count

Air Insulated

RS232, USB, & Optional Ethernet Control

3 Year Warranty

XP GLASSMAN FR50R6 High Voltage Programmable Power Supply 0-50kV Vdc 0-6mA Reversible Polarity Other Version : Positive Polarity - FR50N6 Negative Polarity - Stored Energy HV Cable FR50P6 Option in Datasheet OEM Panel - Adjustment 0-5V - Arch Counts Arc Quench - Remote control Virtual RS232-COM
FR50R6

Data sheet

Applications
Laboratory
POWER
300watt
VOLTAGE OUT
0-50kV
CURRENT
0-6mA
VOLTAGE IN
198-264Vac
NUMBER OF OUTPUTS
1
CASE
Metallico
WEIGHT (kg)
6,35
LENGTH (cm)
50,8
WIDTH (cm)
43,18
HEIGHT (cm)
4,21
MANUFACTURER CODE
FR50R6
New product
