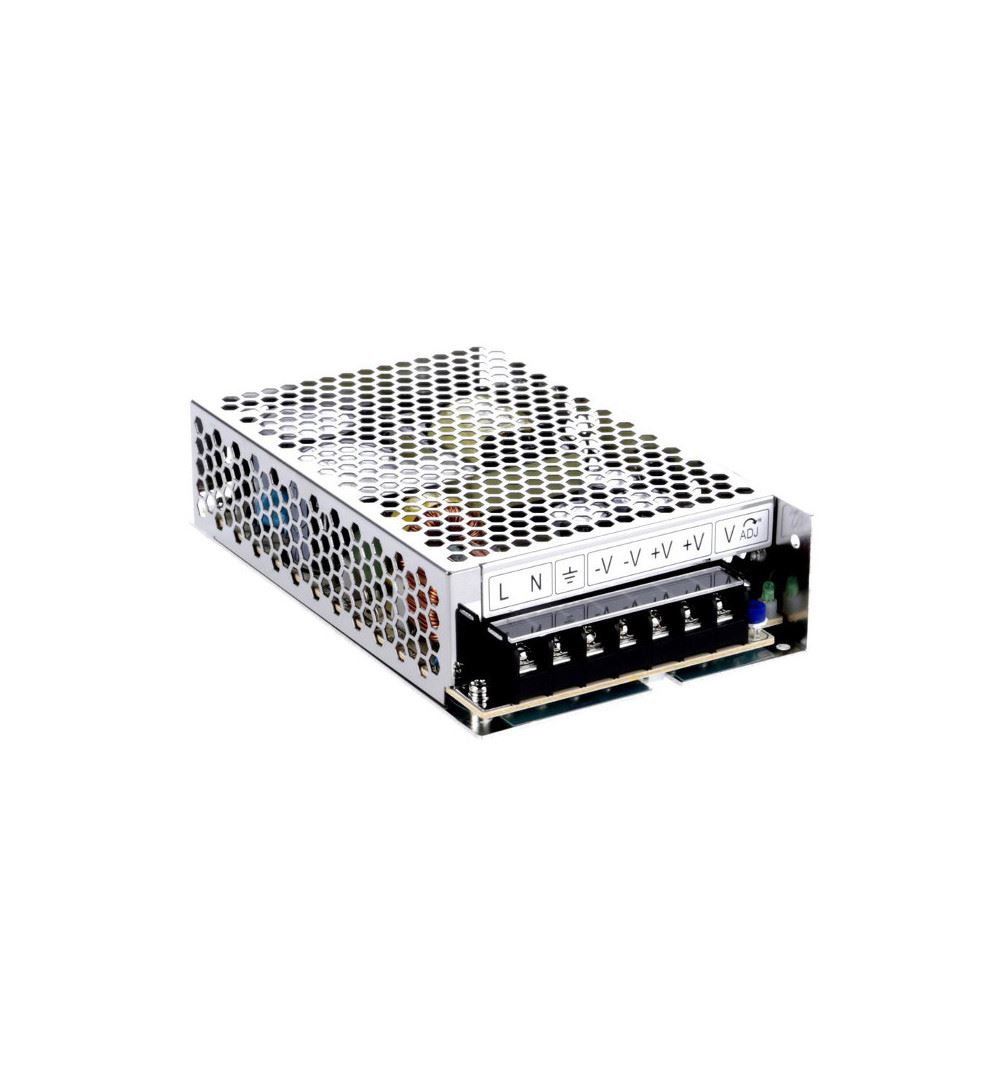

TDK-Lambda LS100-48 AC-DC Power Supply Enclosed 100W 48Vdc 2.3A

LS100-48

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

TDK-LAMBDA power supply IP20 constant voltage output 12V max power 100W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency above 81% Three years warranty Part Number: LS100-48 Output type Constant voltage V input 88-264 V V output 10.8 - 13.2 Vdc P max output 100 W The max output 8.5 A Weight 600 g Dimensions 160 * 97 * 38 mm Ip 20
LS100-48

Data sheet

POWER
100watt
VOLTAGE OUT
48Vdc
CURRENT
2,3A
VOLTAGE IN
88-264Vac o 125-373Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,6
LENGTH (cm)
16
WIDTH (cm)
9,7
HEIGHT (cm)
3,8
MANUFACTURER CODE
LS100-48
New product
