150W convection cooled
Integrated connector cover
ITE, industrial and domestic approvals
Class B conducted and radiated emissions
Input voltage range 85-305V AC
Output voltage regulation ± 10%
90% efficiency
Short circuit, over voltage and overload protection
Operating temperature from -30 ° C to + 70 ° C
3 year guarantee

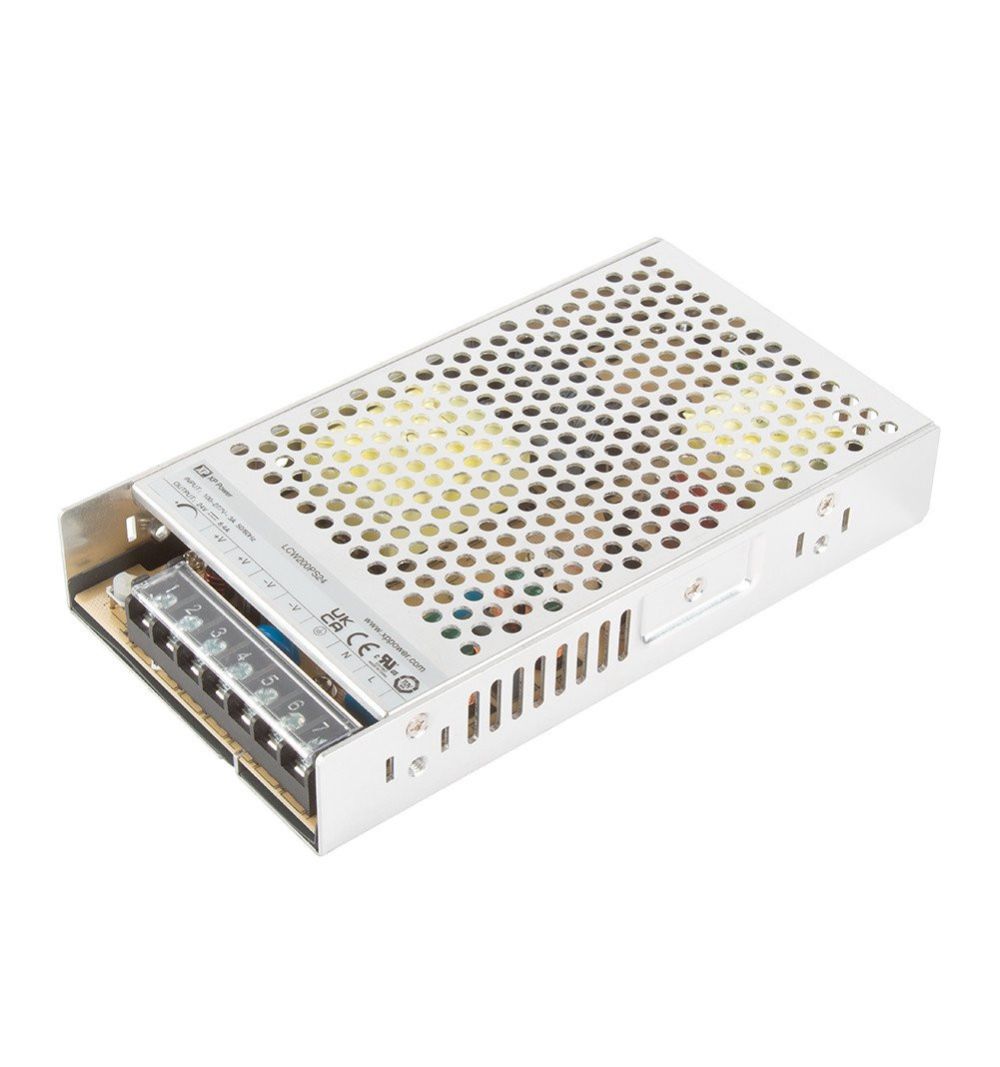

LCW150PS15 XP Power Enclosed 150W AC-DC Power Supply 15Vdc with PFC
LCW150PS15
Features:
150W convection cooled
Integrated connector cover
ITE, industrial and domestic approvals
Class B conducted and radiated emissions
Input voltage range 85-305V AC
Output voltage regulation ± 10%
90% efficiency
Short circuit, over voltage and overload protection
Operating temperature from -30 ° C to + 70 ° C
3 year guarantee
LCW150PS15 XP Power Enclosed 150W AC-DC Power Supply 15Vdc with PFC
LCW150PS15
Data sheet
- Applications
- Self-Payment & Info Kiosk
- POWER
- 150watt
- VOLTAGE OUT
- 15Vdc
- CURRENT
- 10A
- VOLTAGE IN
- 85-305Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Enclosed
- WEIGHT (kg)
- 0,5
- LENGTH (cm)
- 17,9
- WIDTH (cm)
- 9,9
- HEIGHT (cm)
- 3
- MANUFACTURER CODE
- LCW150PS15
