100W convection cooled
Integrated connector cover
ITE, industrial and domestic approvals
Class B conducted and radiated emissions
Input voltage range 85-305V AC
Output voltage regulation ± 10%
90% efficiency
Short circuit, over voltage and overload protection
Operating temperature from -30 ° C to + 70 ° C
3 year guarantee

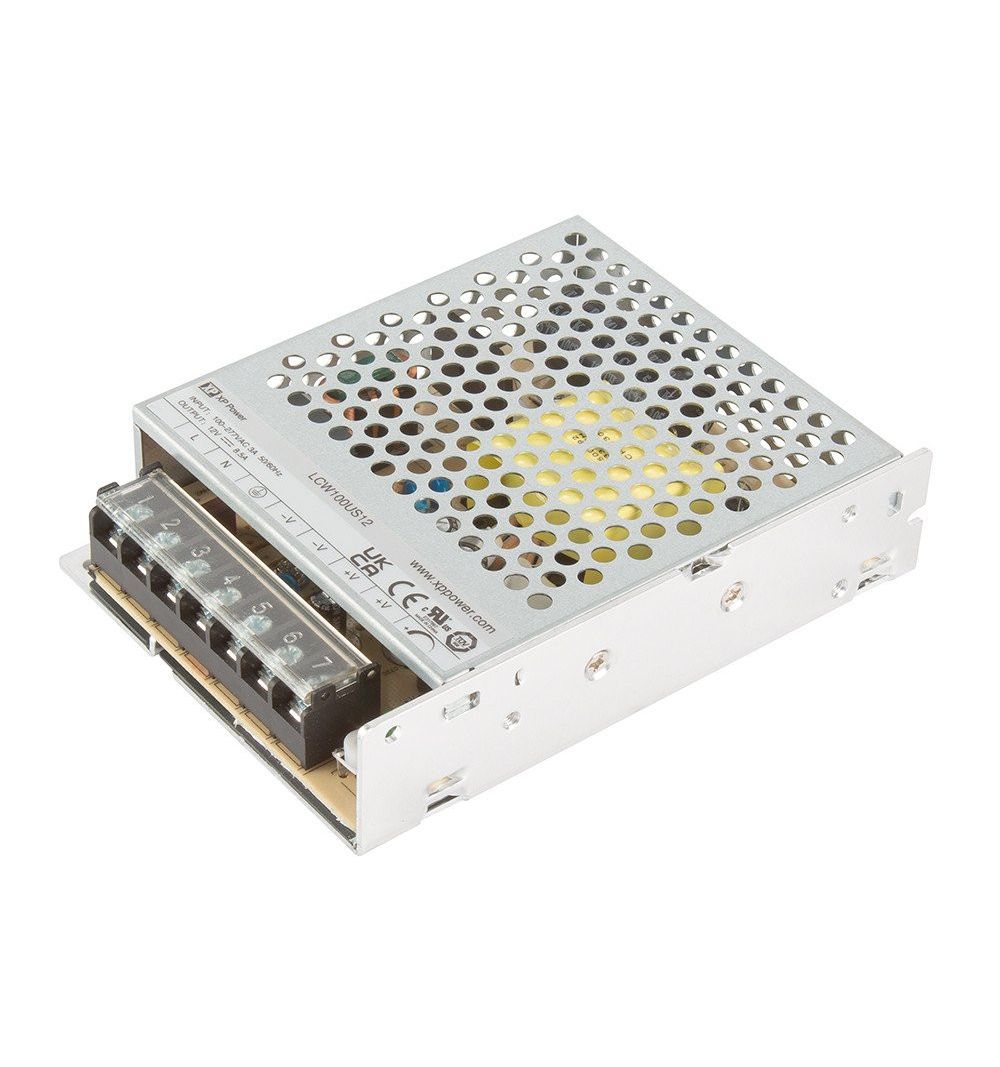

LCW100US05 XP Power Enclosed 100W AC-DC Power Supply 5Vdc
LCW100US05
Features:
100W convection cooled
Integrated connector cover
ITE, industrial and domestic approvals
Class B conducted and radiated emissions
Input voltage range 85-305V AC
Output voltage regulation ± 10%
90% efficiency
Short circuit, over voltage and overload protection
Operating temperature from -30 ° C to + 70 ° C
3 year guarantee
LCW100US05 XP Power Enclosed 100W AC-DC Power Supply 5Vdc
LCW100US05
Data sheet
- Applications
- Self-Payment & Info Kiosk
- POWER
- 100watt
- VOLTAGE OUT
- 5Vdc
- CURRENT
- 18A
- VOLTAGE IN
- 85-305Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Enclosed
- WEIGHT (kg)
- 0,325
- LENGTH (cm)
- 12,9
- WIDTH (cm)
- 9,7
- HEIGHT (cm)
- 3
- MANUFACTURER CODE
- LCW100US05
