200W convection cooled
Active PFC
Integrated connector cover
ITE and industrial approvals
Class B conducted and radiated emissions
Input voltage range 85-305V AC
Adjustment of the output voltage
90% efficiency
Short circuit, over voltage and overload protection
Operating temperature from -30 ° C to + 70 ° C
3 year guarantee
XP Power LCW200PS05 Enclosed Power Supply 5Vdc 200W with PFC
LCW200PS05
Features:
200W convection cooled
Active PFC
Integrated connector cover
ITE and industrial approvals
Class B conducted and radiated emissions
Input voltage range 85-305V AC
Adjustment of the output voltage
90% efficiency
Short circuit, over voltage and overload protection
Operating temperature from -30 ° C to + 70 ° C
3 year guarantee

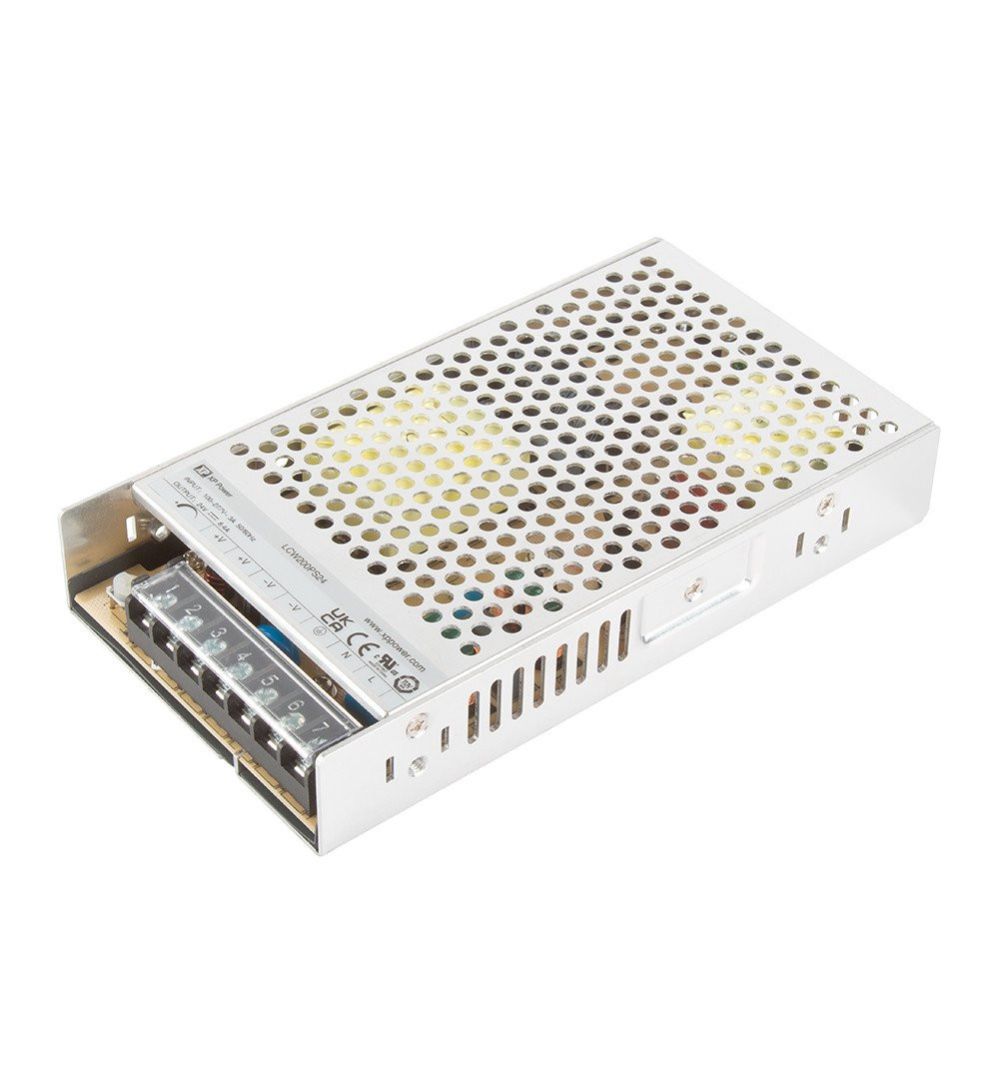

XP Power LCW200PS05 Enclosed Power Supply 5Vdc 200W with PFC
LCW200PS05
Data sheet
- Applications
- Food and Packaging
- POWER
- 200watt
- VOLTAGE OUT
- 5Vdc
- CURRENT
- 40A
- VOLTAGE IN
- 80-305V
- NUMBER OF OUTPUTS
- 1
- CASE
- Enclosed
- WEIGHT (kg)
- 0,75
- LENGTH (cm)
- 21,5
- WIDTH (cm)
- 11,5
- HEIGHT (cm)
- 3
- MANUFACTURER CODE
- LCW200PS05
New
