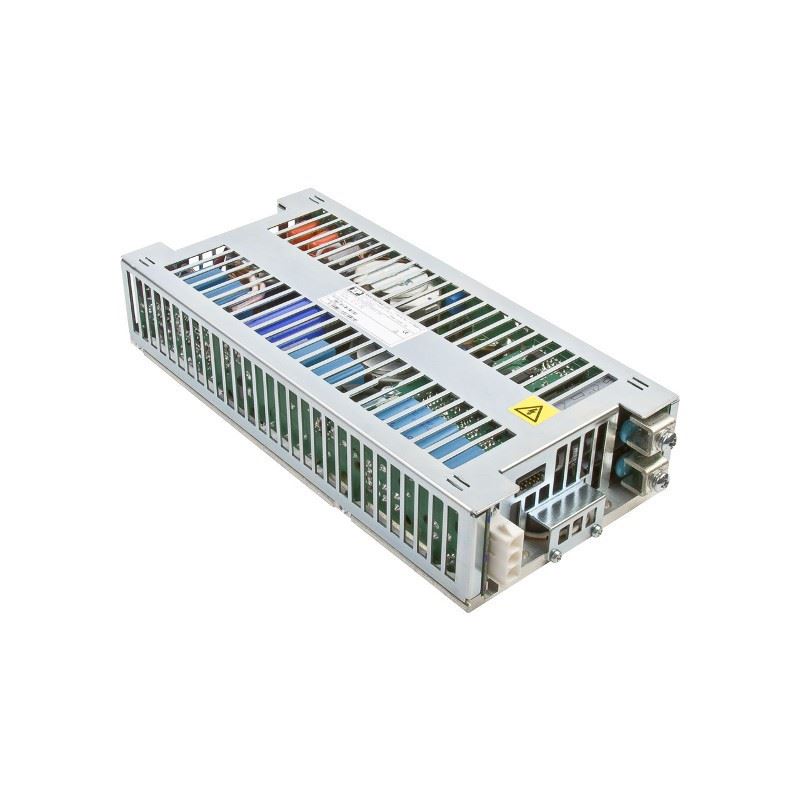

XP Power AC-DC Power Supplies CCH Series 400W and 600W Baseplate

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

XP Power AC-DC Power Supplies CCH Series 400W and 600W with Baseplate Conduction Cooling operation up to 85°C

  • 400 W & 600 W - Baseplate Cooled
  •
  • Compact 8.4” (214 mm) x 4” (102 mm) x 1.69” (43 mm) Package
  •
  • High Efficiency up to 90%
  •
  • -40 °C to +85 °C Baseplate Operating Temperature
  •
  • MIL-STD-461 EMC
  •
  • MIL-STD-810F Shock & Vibration
  •
  • 5 V Standby Output
  •
  • Remote On/Off & AC OK Signal
  •
  • Current Share for Parallel Operation
  •
  • Overtemperature Warning/Shutdown

The CCH series has been designed for use in electronic systems which need to operate in the harshest of environments. These electronic systems are typically sealed to protect them from the elements, thus making thermal management very challenging. The CCH power supplies are designed with the heat generating components directly attached to a baseplate which allows conducted
heat to be easily passed from the equipment through a heatsink to the outside environment.
This AC-DC single output product family, fitted with a 5 V standby and interface signals also features efficiencies in excess of 90%. The discrete design of the CCH allows for all heat dissipating components to be connected to the baseplate, optimising efficiency and resulting in a very compact 8.4” (214 mm) x 4” (102 mm) x 1.69” (43 mm)

Data sheet

Applications
AC-DC
Harsh environment
Industrial
Marine
Railway
Transportation
POWER
300W-600W
600W-1200W
OUTPUT
Single
PRODUCT RANGE
Conductive cooling
Rugged Harsh Environments
FIELD OF APPLICATION
Industrial
Marine
Oil & Gas
Transportation
