Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty

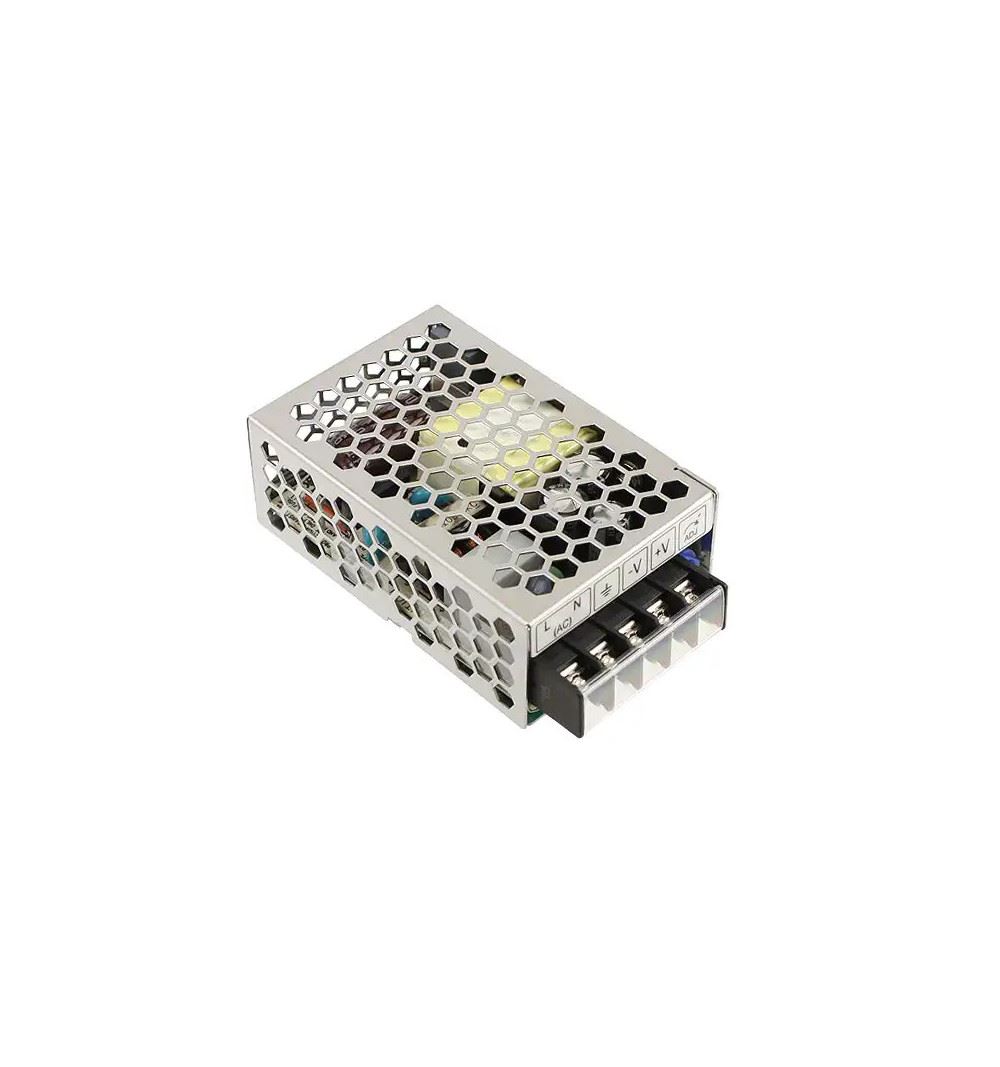

TDK-Lambda LS25-3.3 AC-DC Power Supply Enclosed 3.3Vdc 19.8W 6A
LS25-3.3
Features:
Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty
TDK-LAMBDA IP20 power supply constant voltage output 3.3V max power 19.8W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency exceeding 87% Three years warranty Part Number: LS25-3.3 Output type Constant voltage V input 88-264 V V output 3 - 3.3 Vdc P max output 19.8 W The max 6 A output Weight 170 g Dimensions 79 * 51 * 28 mm Ip 20
LS25-3.3
Data sheet
- POWER
- 19,8watt
- VOLTAGE OUT
- 3,3Vdc
- CURRENT
- 6A
- VOLTAGE IN
- 88-264Vac o 125-373Vdc
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 0,17
- LENGTH (cm)
- 7,9
- WIDTH (cm)
- 5,1
- HEIGHT (cm)
- 2,8
- MANUFACTURER CODE
- LS25-3.3
New
