Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty

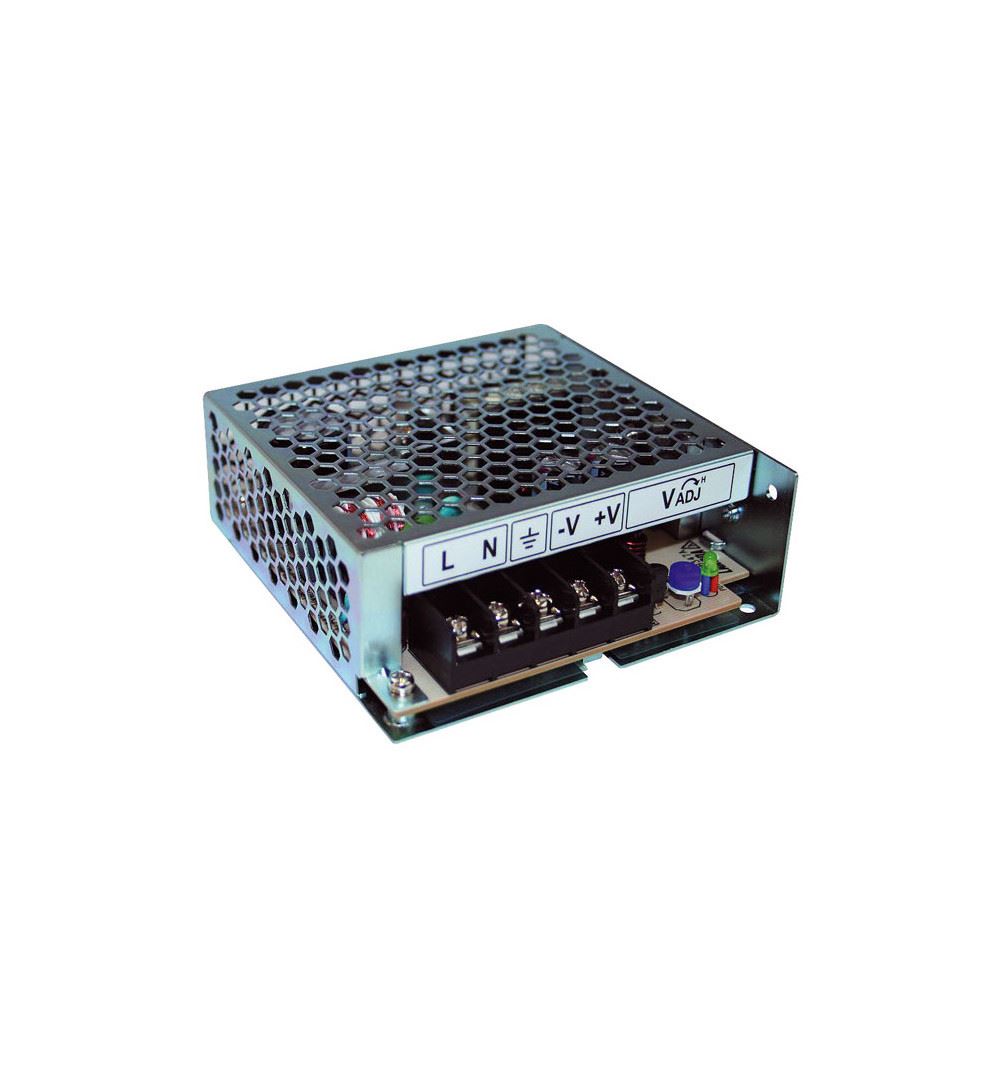

TDK-Lambda LS50-36 AC-DC Power Supply Enclosed 50W 36Vdc 1.4A
LS50-36
Features:
Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty
Power supply TDK-LAMBDA IP20 constant voltage output 36V max power 50W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency over 86% Three years warranty Part Number: LS50-36 Output type Constant voltage V input 88-264 V V output 32 - 40 Vdc P max output 50 W The max output 1.4 A Weight 350 g Dimensions 99 * 97 * 36 mm Ip 20
LS50-36
Data sheet
- POWER
- 50watt
- VOLTAGE OUT
- 36Vdc
- CURRENT
- 1,4A
- VOLTAGE IN
- 88-264Vac o 125-373Vdc
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 0,35
- LENGTH (cm)
- 9,9
- WIDTH (cm)
- 9,7
- HEIGHT (cm)
- 3,6
- MANUFACTURER CODE
- LS50-36
New
