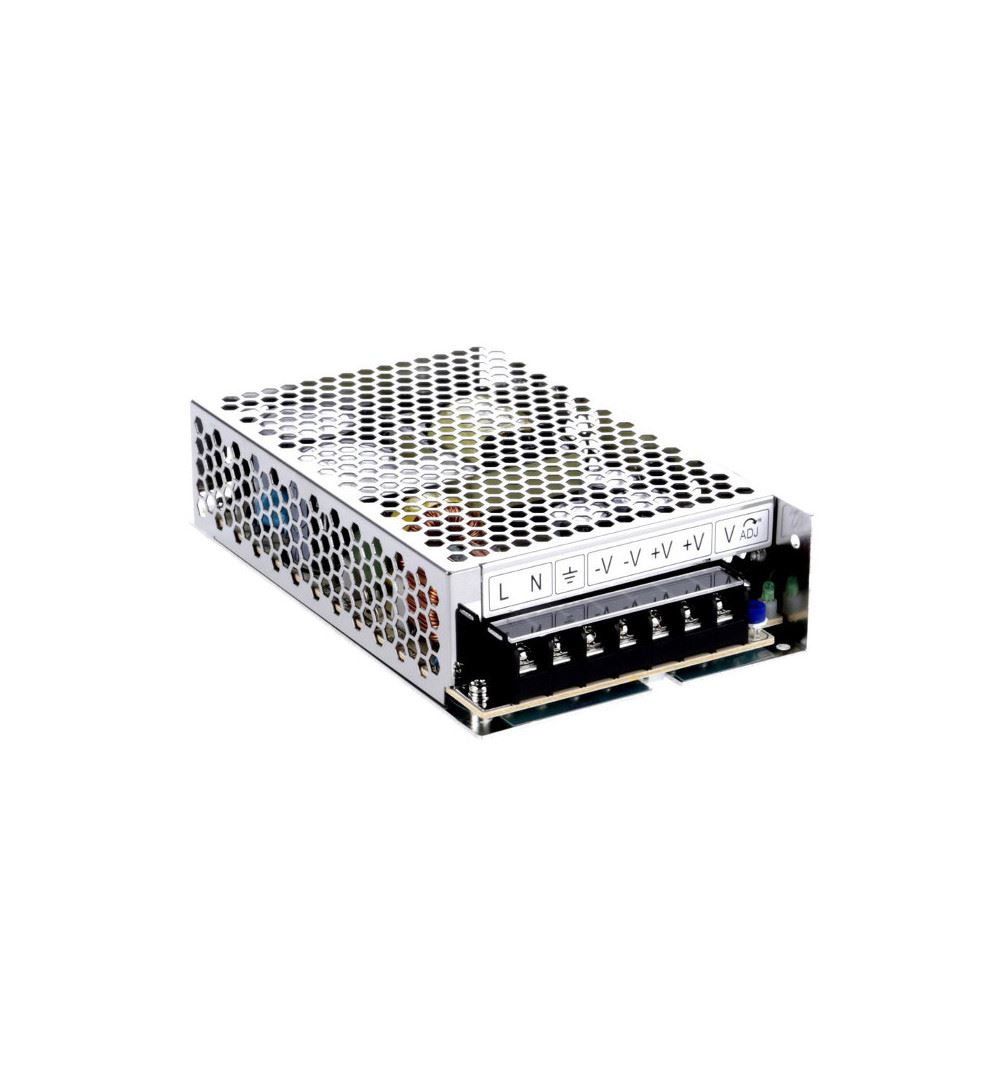

TDK-Lambda LS100-5 AC-DC Power Supply Enclosed 80W 5Vdc 16A

LS100-5

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

TDK-LAMBDA IP20 power supply constant voltage output 5V max power 100W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency of more than 77% Three years warranty Part Number: LS100-5 Output type Constant voltage V input 88-264 V V output 4.75 - 5.5 Vdc P max output 100 W The max output 16 A Weight 600 g Dimensions 160 * 97 * 38 mm Ip 20
LS100-5

Data sheet

POWER
100watt
VOLTAGE OUT
5Vdc
CURRENT
16A
VOLTAGE IN
88-264Vac o 125-373Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,6
LENGTH (cm)
16
WIDTH (cm)
9,7
HEIGHT (cm)
3,8
MANUFACTURER CODE
LS100-5
New product
