Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty

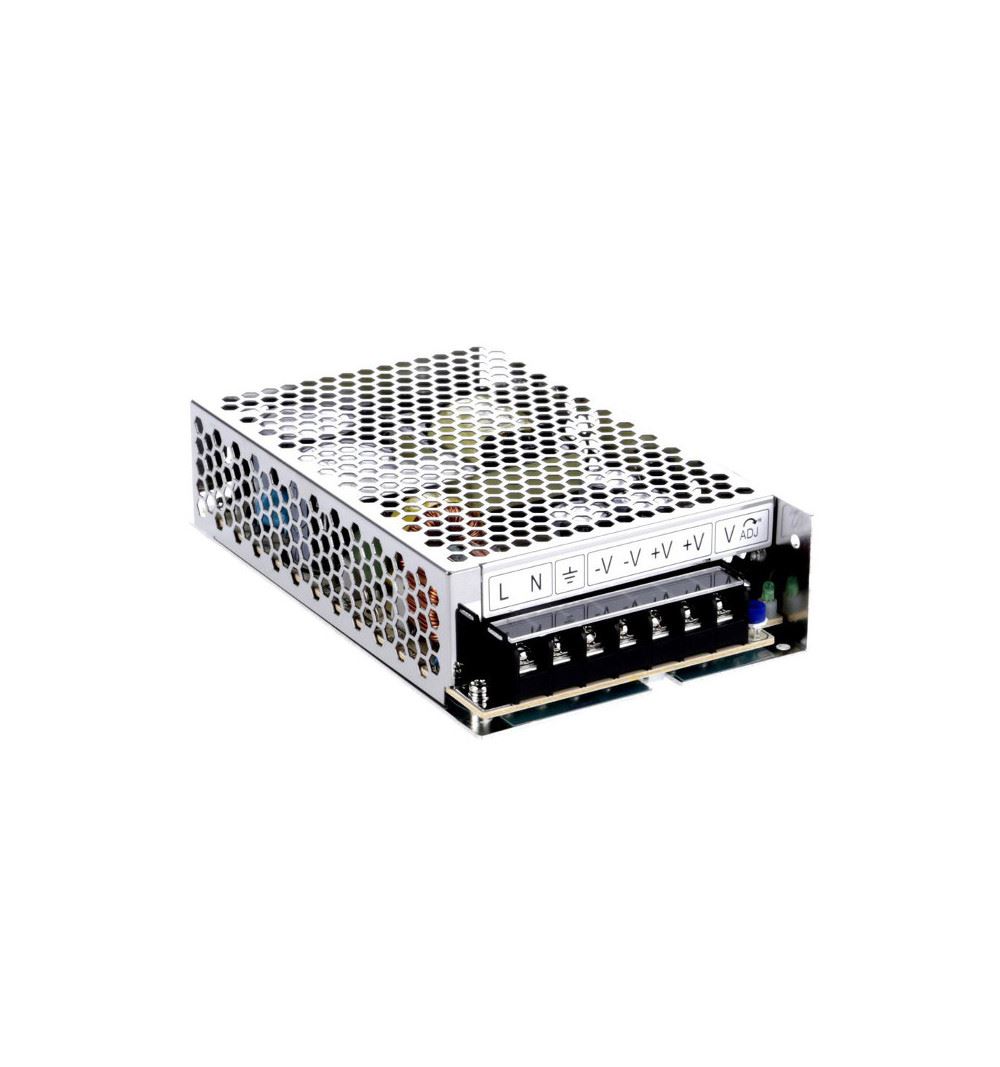

TDK-Lambda LS150-15 AC-DC Power Supply Enclosed 150W 15Vdc 10A
LS150-15
Features:
Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty
Alimentatore TDK-LAMBDA IP20 uscita tensione costante 15V potenza max 150W, protetto contro sovratemperature, sovracorrente, cortocircuito. Elevato MTBF superiore alle 900.000 ore Elevata temperatura di funzionamento fino a 70°C Elevata efficienza superiore al 84% Tre anni di garanzia Part Number: LS150-15 Tipo uscita Tensione Costante V ingresso 88-264 V V uscita 13.5 - 16.5 Vdc P max uscita 150 W I max uscita 10 A Peso 700 g Dimensioni 198*99*38 mm Ip 20
LS150-15
Data sheet
- POWER
- 150watt
- VOLTAGE OUT
- 15Vdc
- CURRENT
- 10A
- VOLTAGE IN
- 88-132/176-264Vac o 248-273Vdc
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 0,7
- LENGTH (cm)
- 19,8
- WIDTH (cm)
- 9,9
- HEIGHT (cm)
- 3,8
- MANUFACTURER CODE
- LS150-15
