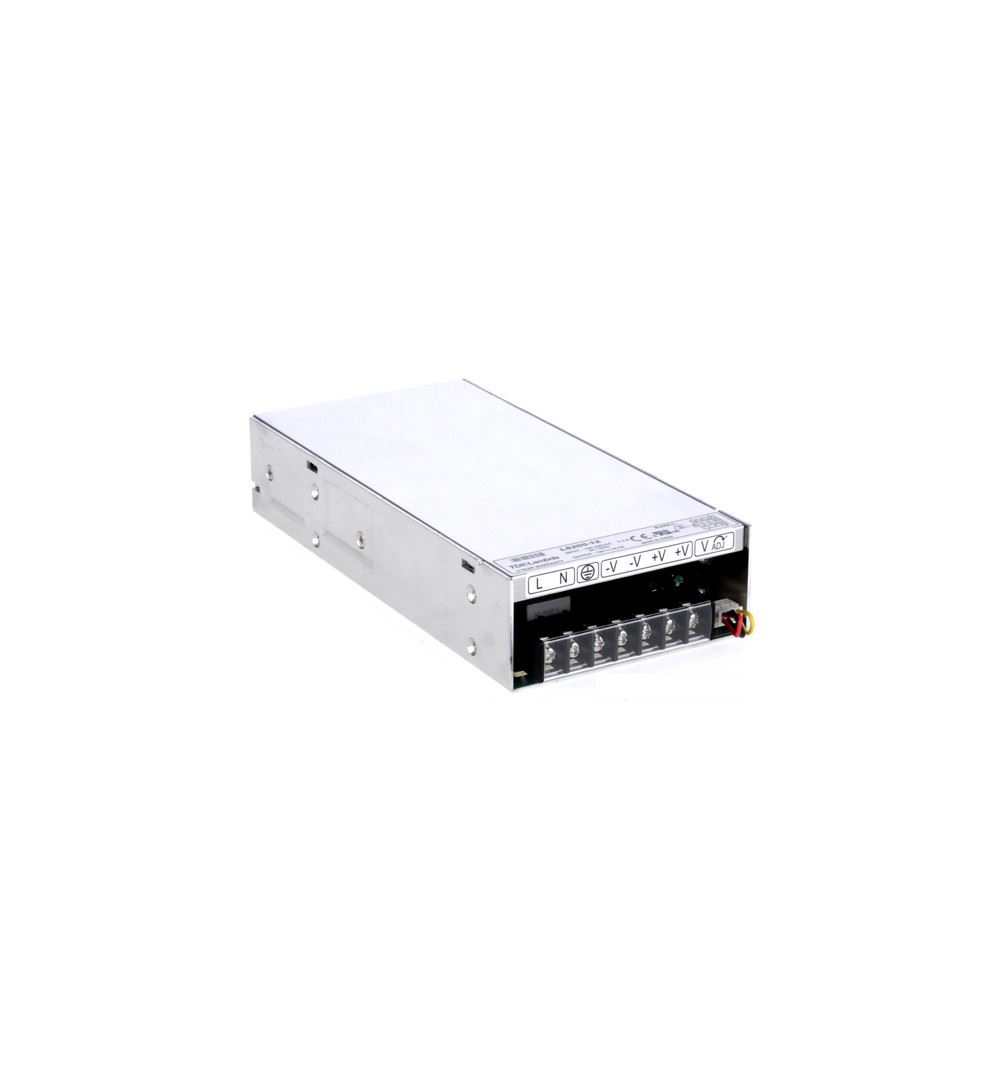

TDK-Lambda LS200-12 AC-DC Power Supply Enclosed 12Vdc 200W 16.7A

LS200-12

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

Power supply TDK-LAMBDA IP20 constant voltage output 12V max power 200W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency higher than 79% Three years warranty Part Number: LS200-12 Output type Constant voltage V input 88-264 V V output 10.8 - 14.4 Vdc P max output 200 W I max output 16.7 A Weight 700 g Dimensions 199 * 98 * 41 mm Ip 20
LS200-12

Data sheet

POWER
200watt
VOLTAGE OUT
12Vdc
CURRENT
16,7A
VOLTAGE IN
88-264Vac o 125-373Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,7
LENGTH (cm)
19,9
WIDTH (cm)
9,8
HEIGHT (cm)
4,1
MANUFACTURER CODE
LS200-12
