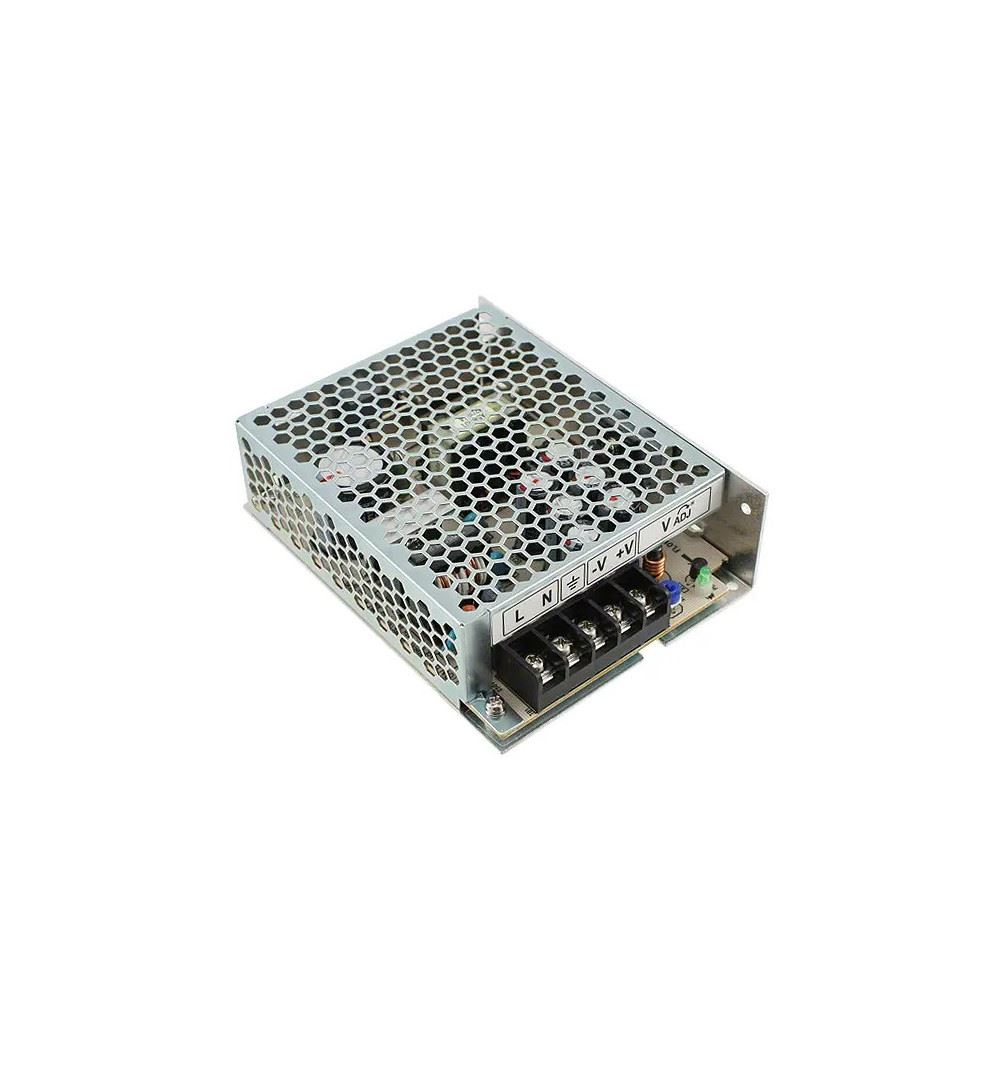

TDK-Lambda LS75-15 AC-DC Power Supply Enclosed 75W 15Vdc 5A

LS75-15

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

TDK-LAMBDA IP20 power supply constant voltage output 5V max power 75W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency over 86% Three years warranty Part Number: LS75-15 Output type Constant voltage V input 88-264 V V output 13.5 - 16.5 Vdc P max output 75 W The max 5 A output Weight 410 g Dimensions 130 * 97 * 38 mm Ip 20
LS75-15

Data sheet

POWER
75watt
VOLTAGE OUT
15Vdc
CURRENT
5A
VOLTAGE IN
88-264Vac o 125-373Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,41
LENGTH (cm)
13
WIDTH (cm)
9,7
HEIGHT (cm)
3,8
MANUFACTURER CODE
LS75-15
New product
