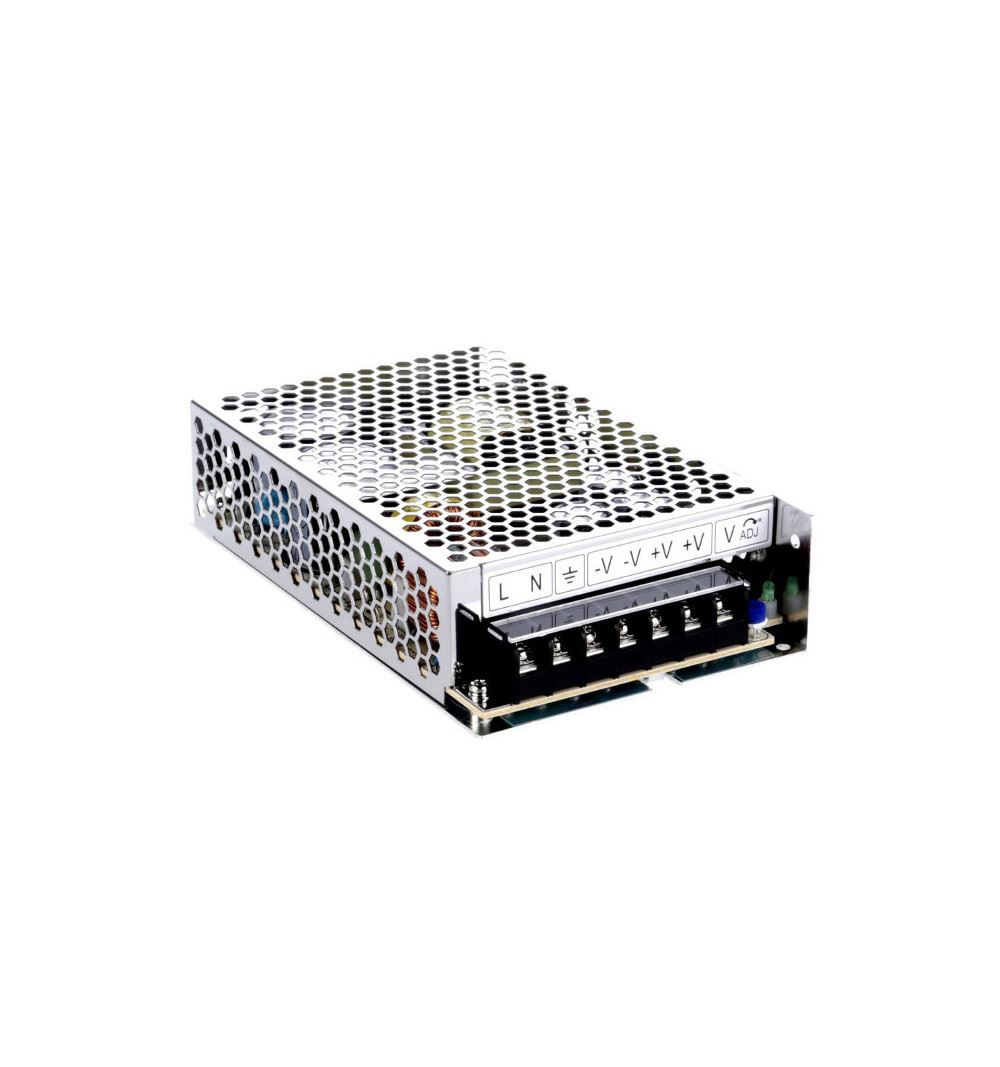

TDK-Lambda LS150-36 AC-DC Power Supply Enclosed 150W 36Vdc 4.3A

LS150-36

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

Power supply TDK-LAMBDA IP20 constant voltage output 36V max power 150W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency over 86% Three years warranty Part Number: LS150-36 Output type Constant voltage V input 88-132 / 176-264 Vac V output 32 - 40 Vdc P max output 150 W The max output 4.3 A Weight 700 g Dimensions 198 * 99 * 38 mm Ip 20
LS150-36

Data sheet

POWER
150watt
VOLTAGE OUT
36Vdc
CURRENT
4,3A
VOLTAGE IN
88-132/176-264Vac o 248-273Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,7
LENGTH (cm)
19,8
WIDTH (cm)
9,9
HEIGHT (cm)
3,8
MANUFACTURER CODE
LS150-36
New product
