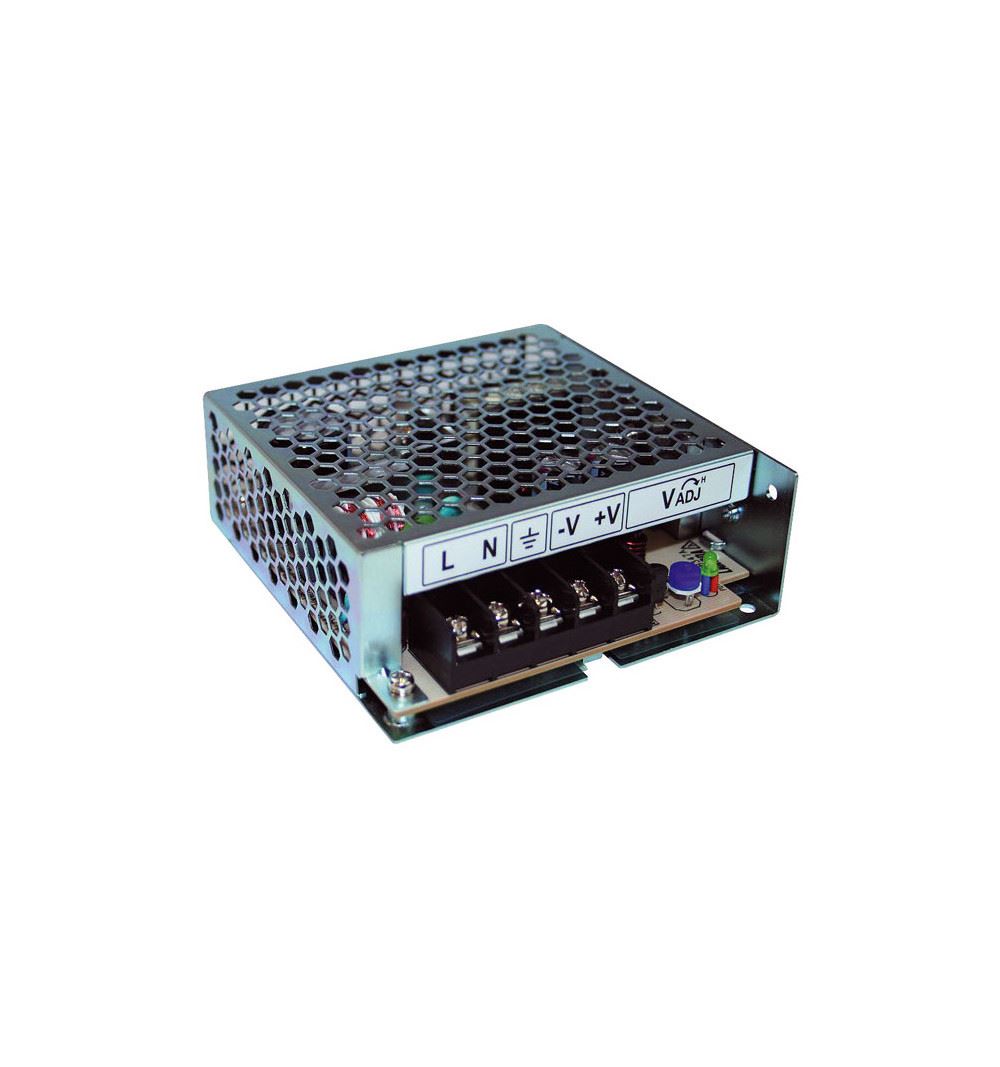

TDK-Lambda LS50-48 AC-DC Power Supply Enclosed 50W 48Vdc 1.1A

LS50-48

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

TDK-LAMBDA power supply IP20 constant voltage output 48V max power 50W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency over 86% Three years warranty Part Number: LS50-48 Output type Constant voltage V input 88-264 V V output 42 - 54 Vdc P max output 50 W I max output 1.1 A Weight 350 g Dimensions 99 * 97 * 36 mm Ip 20
LS50-48

Data sheet

POWER
50watt
VOLTAGE OUT
48Vdc
CURRENT
1,1A
VOLTAGE IN
88-264Vac o 125-373Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,35
LENGTH (cm)
9,9
WIDTH (cm)
9,7
HEIGHT (cm)
3,6
MANUFACTURER CODE
LS50-48
New product
