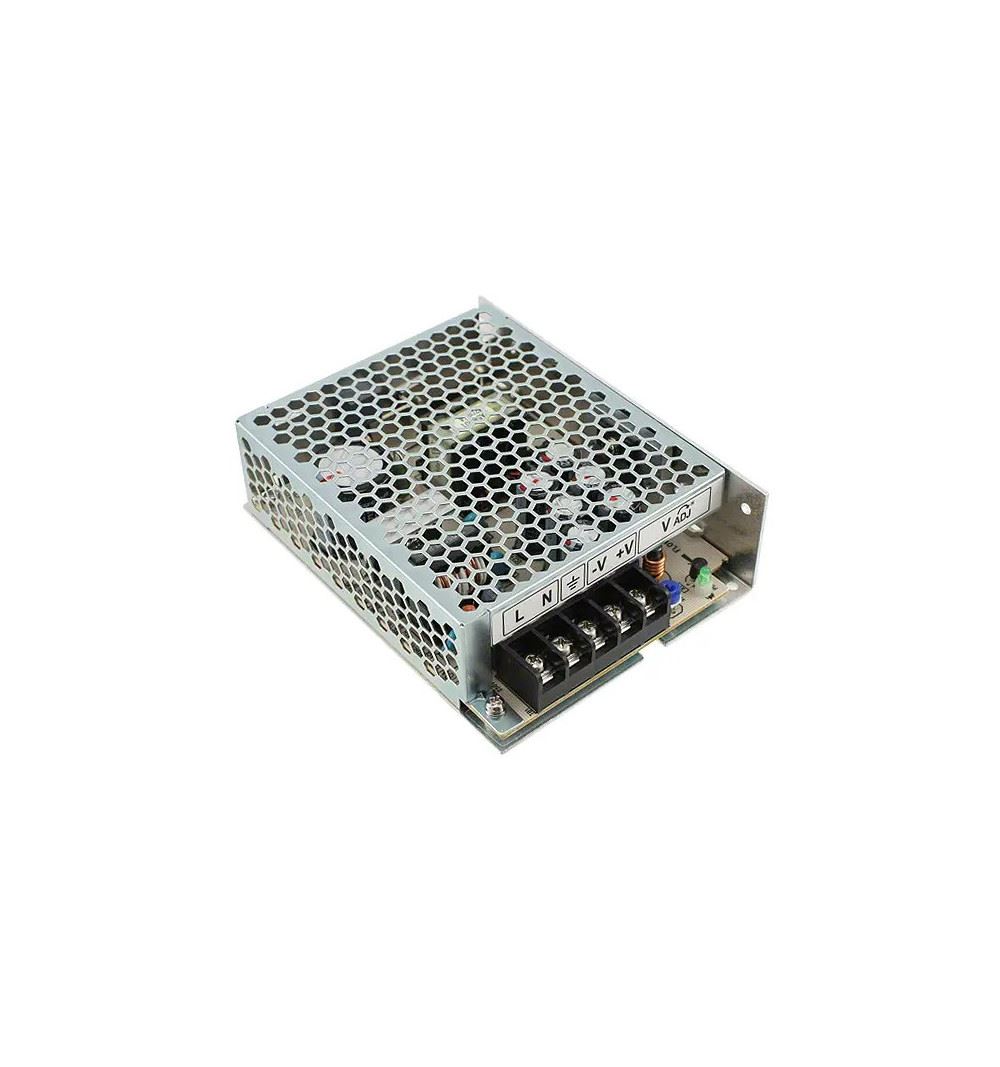

TDK-Lambda LS75-12 AC-DC Power Supply Enclosed 75W 12Vdc 6A

LS75-12

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

Power supply TDK-LAMBDA IP20 constant voltage 12V output max power 75W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency of more than 84% Three years warranty Part Number: LS75-12 Output type Constant voltage V input 88-264 V V output 10.8 - 13.2 Vdc P max output 75 W The max 6 A output Weight 410 g Dimensions 130 * 97 * 38 mm Ip 20
LS75-12

Data sheet

POWER
75watt
VOLTAGE OUT
12Vdc
CURRENT
6A
VOLTAGE IN
88-264Vac o 125-373Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,41
LENGTH (cm)
13
WIDTH (cm)
9,7
HEIGHT (cm)
3,8
MANUFACTURER CODE
LS75-12
New product
