Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty

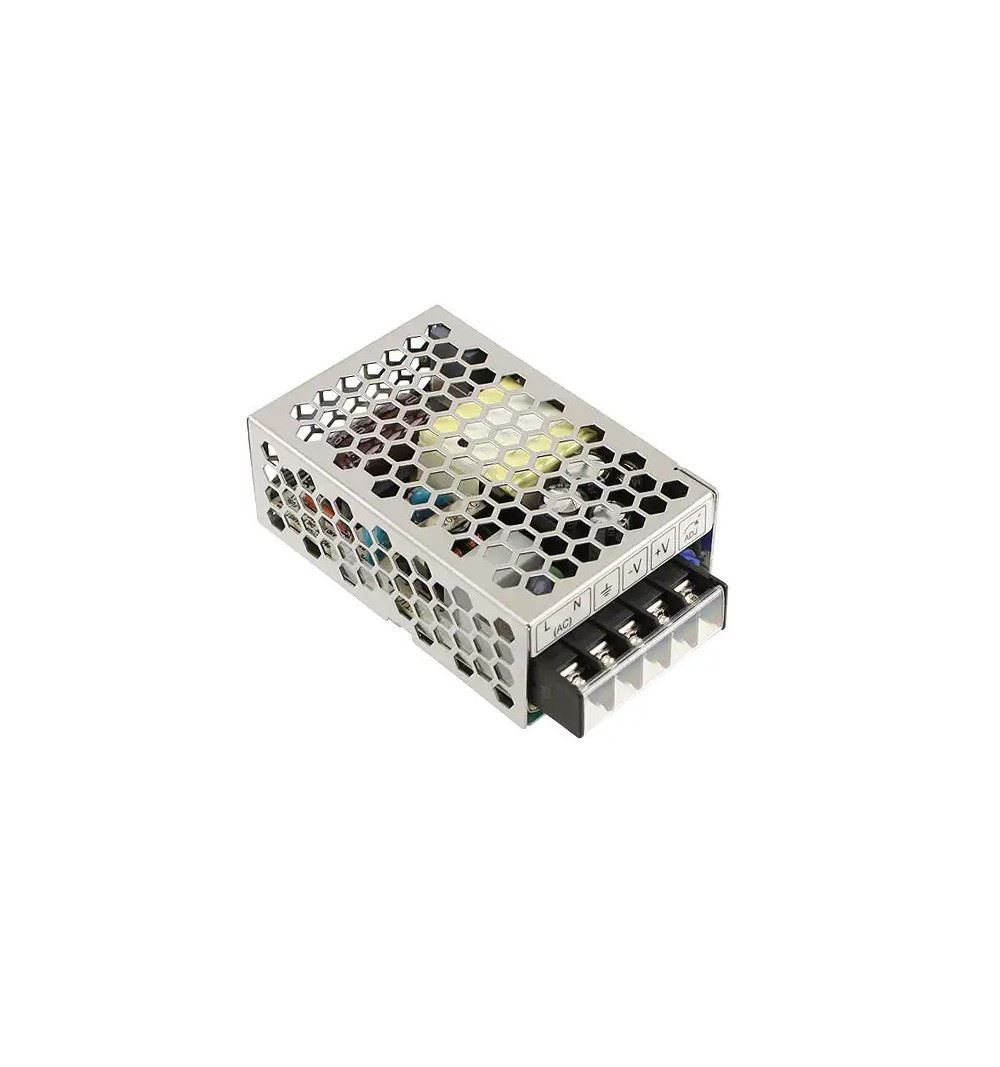

TDK-Lambda LS25-15 AC-DC Power Supply Enclosed 25W 15Vdc 1.7A
LS25-15
Features:
Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty
Power supply TDK-LAMBDA IP20 constant voltage output 15V max power 25W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency above 82% Three years warranty Part Number: LS25-15 Output type Constant voltage V input 88-264 V V output 13.5 - 16.5 Vdc P max output 25 W I max output 1.7 A Weight 170 g Dimensions 79 * 51 * 28 mm Ip 20
LS25-15
Data sheet
- POWER
- 25watt
- VOLTAGE OUT
- 15Vdc
- CURRENT
- 1,7A
- VOLTAGE IN
- 88-264Vac o 125-373Vdc
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 0,17
- LENGTH (cm)
- 7,9
- WIDTH (cm)
- 5,1
- HEIGHT (cm)
- 2,8
- MANUFACTURER CODE
- LS25-15
New
