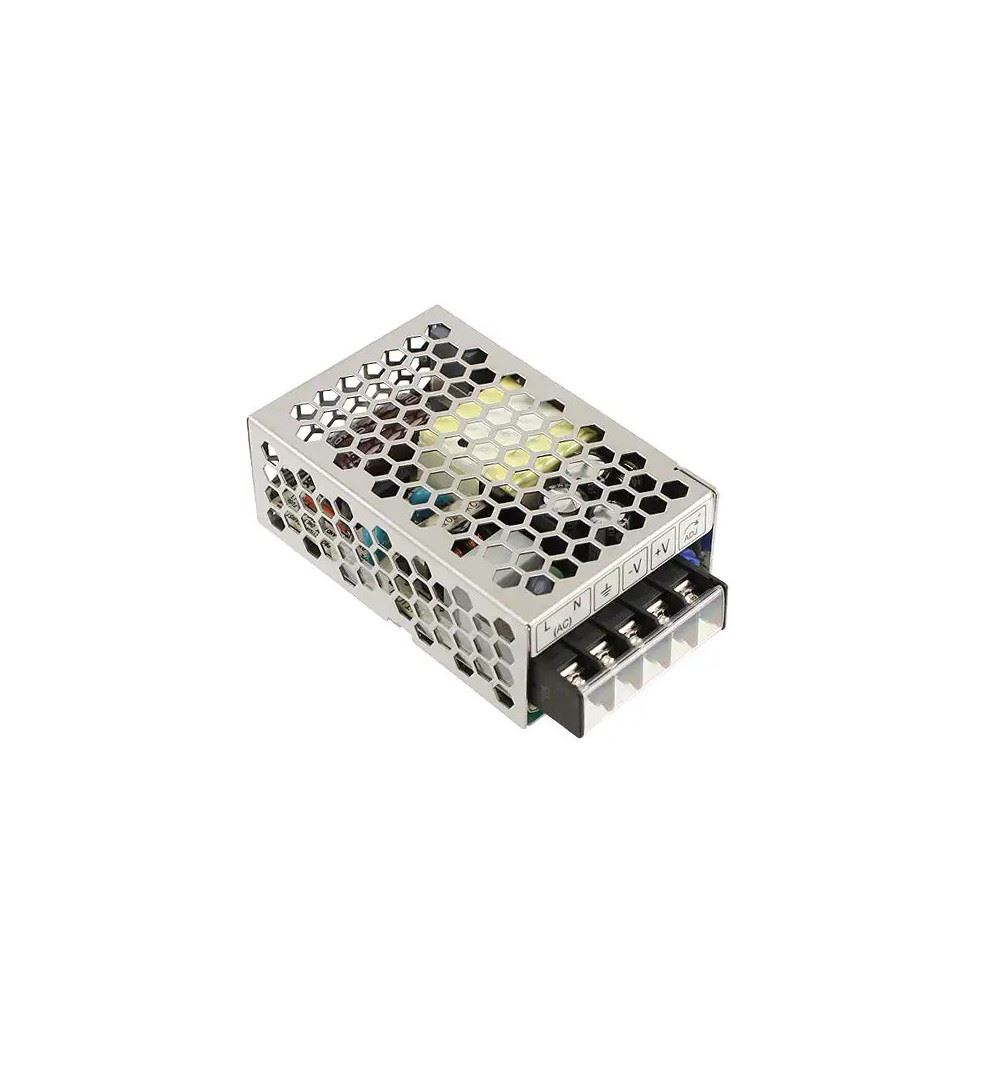

TDK-Lambda LS25-24 AC-DC Power Supply Enclosed 25W 24Vdc 1.1A

LS25-24

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

Power supply TDK-LAMBDA IP20 constant voltage output 24V max power 25W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency of more than 84% Three years warranty Part Number: LS25-24 Output type Constant voltage V input 88-264 V V output 22 - 27.2 Vdc P max output 25 W I max output 1.1 A Weight 170 g Dimensions 79 * 51 * 28 mm Ip 20
LS25-24

Data sheet

POWER
25watt
VOLTAGE OUT
24Vdc
CURRENT
1,1A
VOLTAGE IN
88-264Vac o 125-373Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,17
LENGTH (cm)
7,9
WIDTH (cm)
5,1
HEIGHT (cm)
2,8
MANUFACTURER CODE
LS25-24
New product
