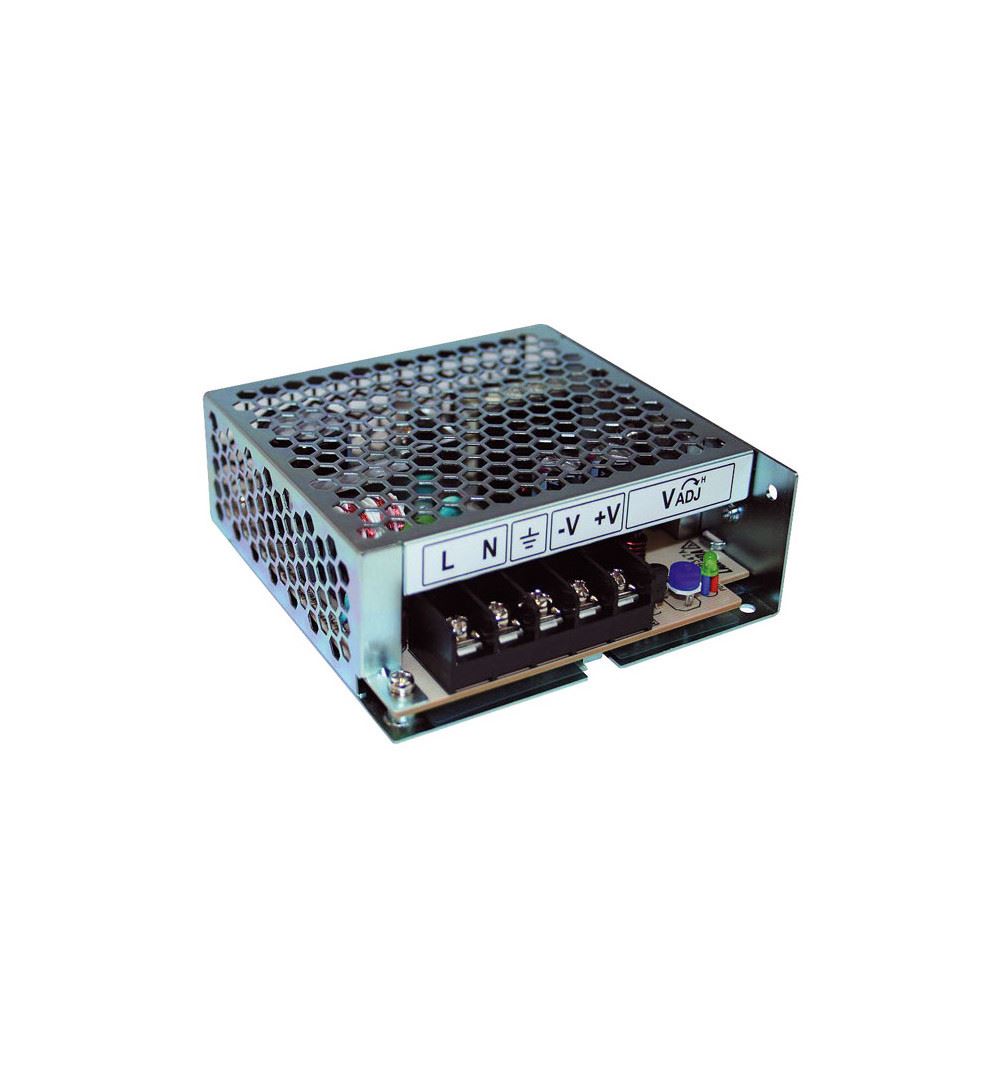

TDK-Lambda LS50-12 AC-DC Power Supply Enclosed 50W 12Vdc 4.2A

LS50-12

Datasheet Download

Contact us for more information

Please fill in this form to contact us


I understand that by clicking on the button below, I accept the Privacy Policy by art.13 of the 2016/679 EU European Regulation (GDPR).

Features:

Superior operating temperature performance up to 70 °C

Very High efficiency up to 87%

Very Low Cost

Compact

Withstands 300VAC surges (5s)

Convection or fan cooled (LS200)

Five Year Warranty

Power supply TDK-LAMBDA IP20 constant voltage 12V output max power 50W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency of more than 84% Three years warranty Part Number: LS50-12 Output type Constant voltage V input 88-264 V V output 10.8 - 13.2 Vdc P max output 50 W The max output 4.2 A Weight 350 g Dimensions 99 * 97 * 36 mm Ip 20
LS50-12

Data sheet

POWER
50watt
VOLTAGE OUT
12Vdc
CURRENT
4,2A
VOLTAGE IN
88-264Vac o 125-373Vdc
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP20
WEIGHT (kg)
0,35
LENGTH (cm)
9,9
WIDTH (cm)
9,7
HEIGHT (cm)
3,6
MANUFACTURER CODE
LS50-12
