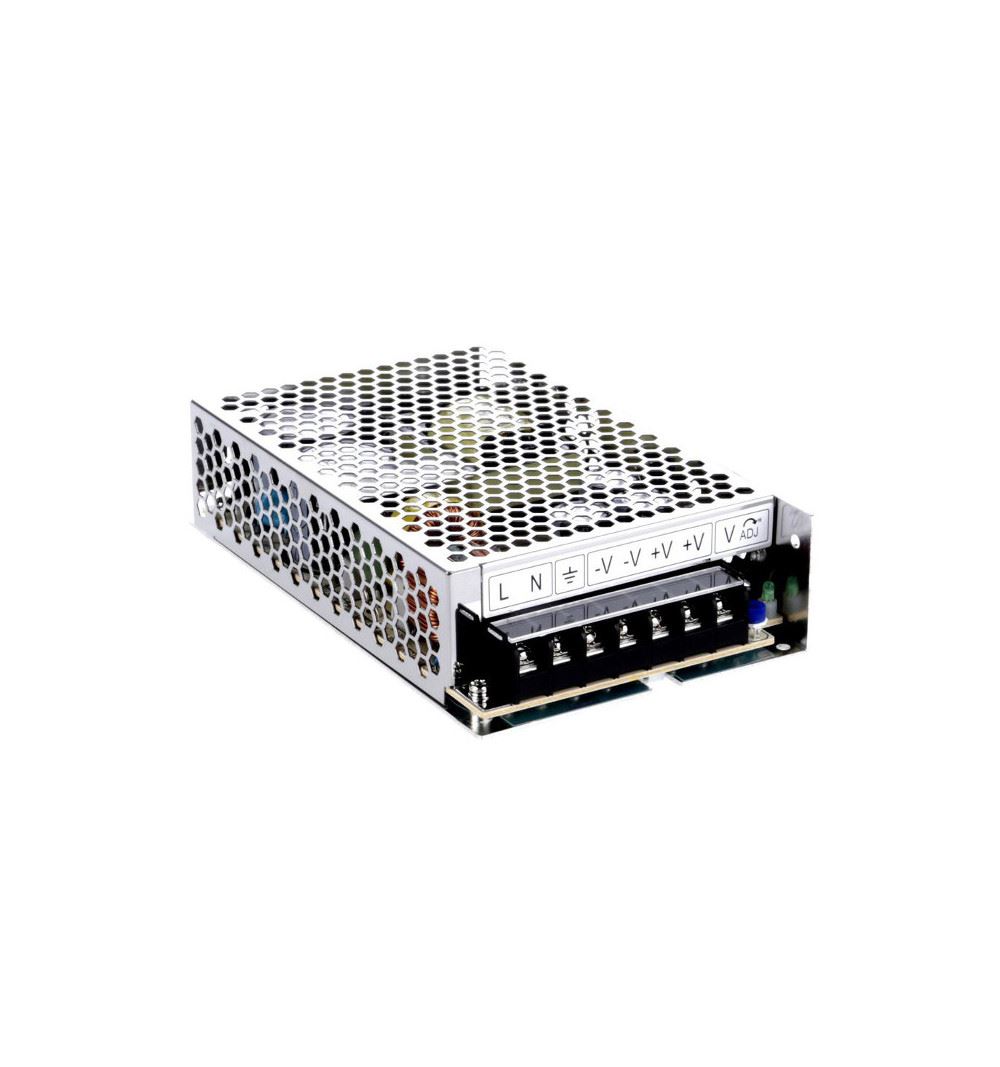

TDK-Lambda LS150-24 AC-DC Power Supply Enclosed 150W 24Vdc 6.5A
LS150-24
Features:
Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty
Power supply TDK-LAMBDA IP20 constant voltage output 24V max power 150W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency over 86% Three years warranty Part Number: LS150-24 Output type Constant voltage V input 88-264 V V output 22 - 27.2 Vdc P max output 150 W The max output 6.5 A Weight 700 g Dimensions 198 * 99 * 38 mm Ip 20
LS150-24
Data sheet
- POWER
- 150watt
- VOLTAGE OUT
- 24Vdc
- CURRENT
- 6,5A
- VOLTAGE IN
- 88-132/176-264Vac o 248-273Vdc
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 0,7
- LENGTH (cm)
- 19,8
- WIDTH (cm)
- 9,9
- HEIGHT (cm)
- 3,8
- MANUFACTURER CODE
- LS150-24
New
