Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty

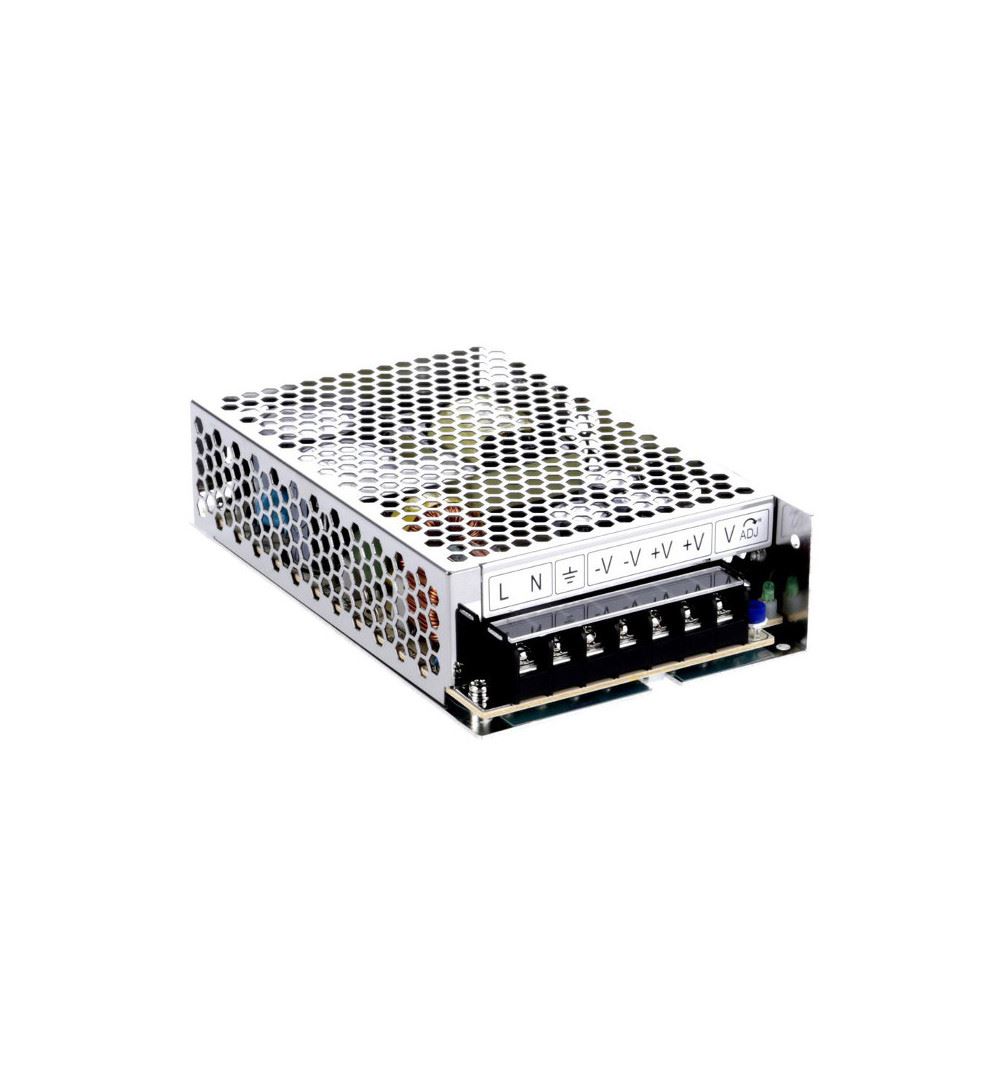

TDK-Lambda LS100-24 AC-DC Power Supply Enclosed 100W 24Vdc 4.5A
LS100-24
Features:
Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty
Power supply TDK-LAMBDA IP20 constant voltage output 24V max power 100W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency of more than 84% Three years warranty Part Number: LS100-24 Output type Constant voltage V input 88-264 V V output 22 - 27.2 Vdc P max output 100 W The max output 4.5 A Weight 600 g Dimensions 160 * 97 * 38 mm Ip 20
LS100-24
Data sheet
- POWER
- 100watt
- VOLTAGE OUT
- 24Vdc
- CURRENT
- 4,5A
- VOLTAGE IN
- 88-264Vac o 125-373Vdc
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 0,6
- LENGTH (cm)
- 16
- WIDTH (cm)
- 9,7
- HEIGHT (cm)
- 3,8
- MANUFACTURER CODE
- LS100-24
