Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty

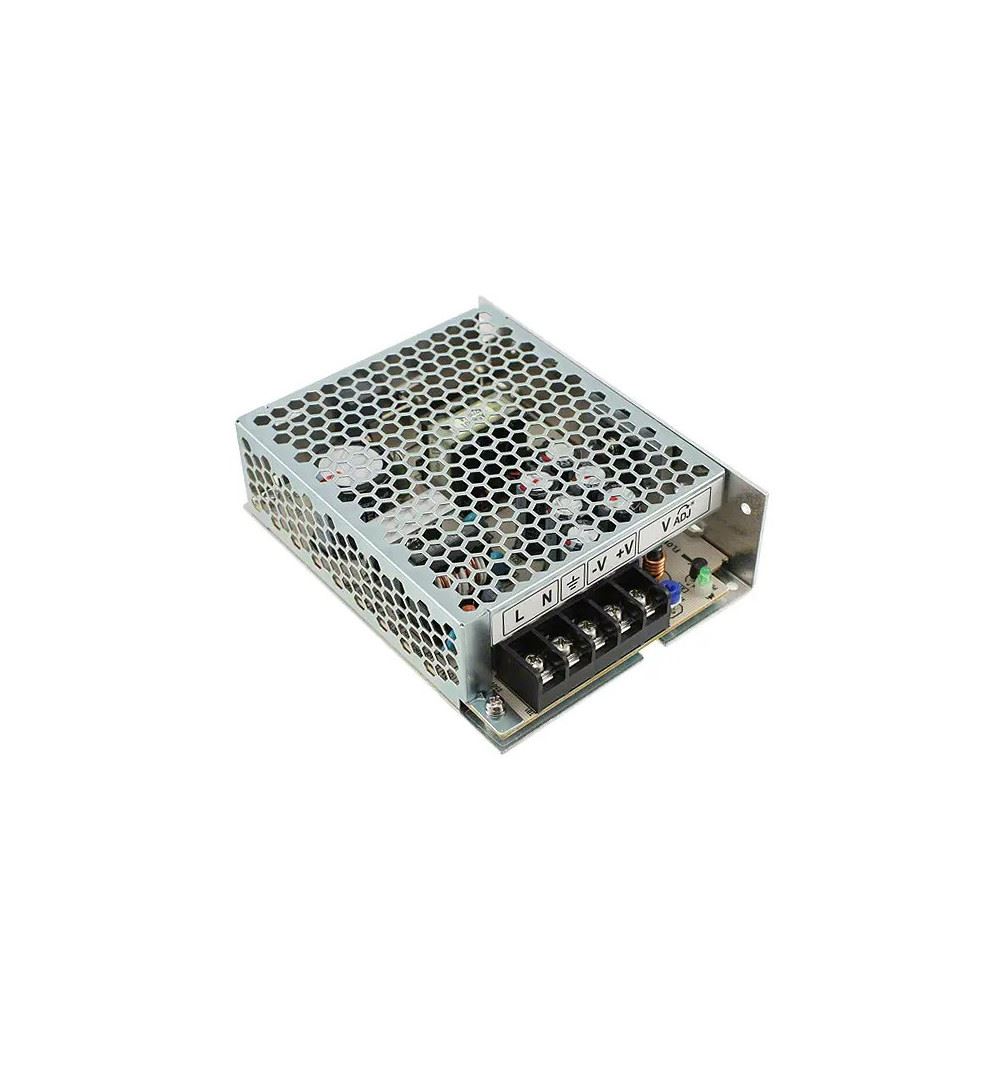

TDK-Lambda LS75-24 AC-DC Power Supply Enclosed 75W 24Vdc 3.2A
LS75-24
Features:
Superior operating temperature performance up to 70 °C
Very High efficiency up to 87%
Very Low Cost
Compact
Withstands 300VAC surges (5s)
Convection or fan cooled (LS200)
Five Year Warranty
TDK-Lambda LS75-24 AC / DC Power Supply Enclosed 24Vdc 75W 3.2A LED power supply TDK-LAMBDA IP20 constant voltage output 24V max power 75W, protected against overheating, overcurrent, short circuit. High MTBF above 900,000 hours High operating temperature up to 70 ° C High efficiency over 86% 3 years warranty Part Number: LS75-24 Output type Constant voltage V input 88-264 V V output 22 - 27.2 Vdc P max output 75 W The max output 3.2 A Weight 410 g Dimensions 130 * 97 * 38 mm Ip 20
LS75-24
Data sheet
- POWER
- 75watt
- VOLTAGE OUT
- 24Vdc
- CURRENT
- 3,2A
- VOLTAGE IN
- 88-264Vac o 125-373Vdc
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 0,41
- LENGTH (cm)
- 13
- WIDTH (cm)
- 9,7
- HEIGHT (cm)
- 3,8
- MANUFACTURER CODE
- LS75-24
