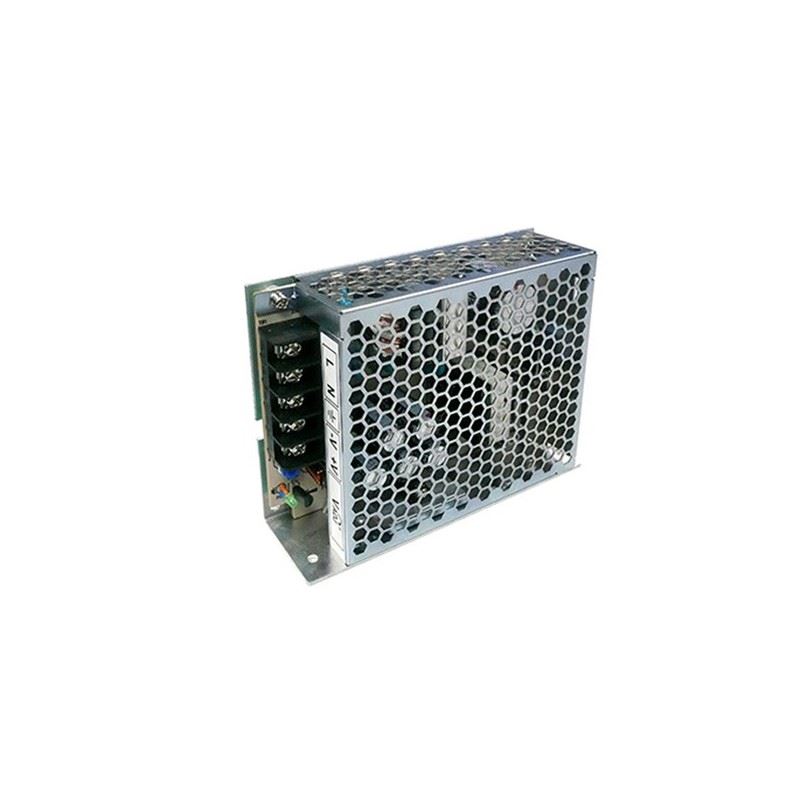

Low cost TDK-Lambda Power supply Series LS 25-200
Features:
TDK-Lambda 20W - 200W Single Output General Purpose Low Cost Power Supplies
- Low Cost
- Superior operating temperature performance up to 70 °C
- Compact
- Withstands 300VAC surges (5s)
- Convection or fan cooled (LS200)
- Five Year Warranty
TDK-Lambda LS series of 25W to 200W power supplies offers users both affordability and reliability with MTBF figures of up to 900,000 hours. Backed by a five year warranty, the LS has a superior operating performance in ambient temperatures up to +70°C. The series accepts a wide AC input of 88 to 264V and can withstand surges of up to 300Vac for five seconds. All commonly used output voltages are available, ranging from 3.3V to 48V.
Models | Power | Voltage | Type | e-Commerce |
LS25-3.3 | 19.8 | 3.3V / 6A | Enclosed | |
LS35-3 | 23.1 | 3.3V / 7A | Enclosed | |
LS50-3 | 33 | 3.3V / 10A | Enclosed | |
LS75-3 | 49.5 | 3.3V / 15A | Enclosed | |
LS100-3 | 66 | 3.3V / 20A | Enclosed | |
LS150-3 | 99 | 3.3V / 30A | Enclosed | |
LS200-3.3 | 132 | 3.3V / 40A | Enclosed | |
LS25-5 | 25 | 5V / 5A | Enclosed | Buy |
LS35-5 | 35 | 5V / 7A | Enclosed | |
LS50-5 | 50 | 5V / 10A | Enclosed | |
LS75-5 | 60 | 5V / 12A | Enclosed | |
LS100-5 | 80 | 5V / 16A | Enclosed | |
LS150-5 | 130 | 5V / 26A | Enclosed | |
LS200-5 | 200 | 5V / 40A | Enclosed | |
LS200-7 | 200.25 | 7.5V / 26.7A | Enclosed | |
LS25-12 | 25.2 | 12V / 2.1A | Enclosed | Buy |
LS35-12 | 36 | 12V / 3A | Enclosed | Buy |
LS50-12 | 50.4 | 12V / 4.2A | Enclosed | |
LS75-12 | 72 | 12V / 6A | Enclosed | |
LS100-12 | 102 | 12V / 8.5A | Enclosed | Buy |
LS150-12 | 150 | 12V / 12.5A | Enclosed | Buy |
LS200-12 | 200.4 | 12V / 16.7A | Enclosed | |
LS25-15 | 25.5 | 15V / 1.7A | Enclosed | |
LS35-15 | 36 | 15V / 2.4A | Enclosed | |
LS50-15 | 51 | 15V / 3.4A | Enclosed | |
LS75-15 | 75 | 15V / 5A | Enclosed | |
LS100-15 | 105 | 15V / 7A | Enclosed | |
LS150-15 | 150 | 15V / 10A | Enclosed | |
LS200-15 | 201 | 15V / 13.4A | Enclosed | |
LS25-24 | 26.4 | 24V / 1.1A | Enclosed | Buy |
LS35-24 | 36 | 24V / 1.5A | Enclosed | Buy |
LS50-24 | 52.8 | 24V / 2.2A | Enclosed | |
LS75-24 | 76.8 | 24V / 3.2A | Enclosed | |
LS100-24 | 108 | 24V / 4.5A | Enclosed | Buy |
LS150-24 | 156 | 24V / 6.5A | Enclosed | Buy |
LS200-24 | 168 | 24V / 8.4A | Enclosed | |
LS25-36 | 27 | 36V / 0.75A | Enclosed | |
LS35-36 | 36 | 36V / 1A | Enclosed | |
LS50-36 | 50.4 | 36V / 1.4A | Enclosed | |
LS75-36 | 75.6 | 36V / 2.1A | Enclosed | |
LS100-36 | 108 | 36V / 3A | Enclosed | |
LS150-36 | 154.8 | 36V / 4.3A | Enclosed | Buy |
LS200-36 | 201.6 | 36V / 5.6A | Enclosed | |
LS25-48 | 27.36 | 48V / 0.57A | Enclosed | |
LS35-48 | 38.4 | 48V / 0.8A | Enclosed | |
LS50-48 | 52.8 | 48V / 1.1A | Enclosed | |
LS75-48 | 76.8 | 48V / 1.6A | Enclosed | |
LS100-48 | 110.4 | 48V / 2.3A | Enclosed | |
LS150-48 | 158.4 | 48V / 3.3A | Enclosed | Buy |
LS200-48 | 201.6 | 48V / 4.2A | Enclosed |
