steel column 1200x165x85mm (HxBxT) RAL 7016 IP54
Front aluminum sheet natural anodised
electric range: solid rubber distribution box model STEYREGG IP54 430x79x129
1xM25 cable gland from bottom (cable diam.: 13-18mm PG21) black
3xSK-sockets 16A 250V IP54 (green)
fused with 3x RCD/MCB 6A 1p+N 30mA C TYP A
RCD/MCB are Eaton ÖVE / VDE branded
distribution box is wired on Vario-Connectgor 5poles 10qmm
Construction and execution according to plan

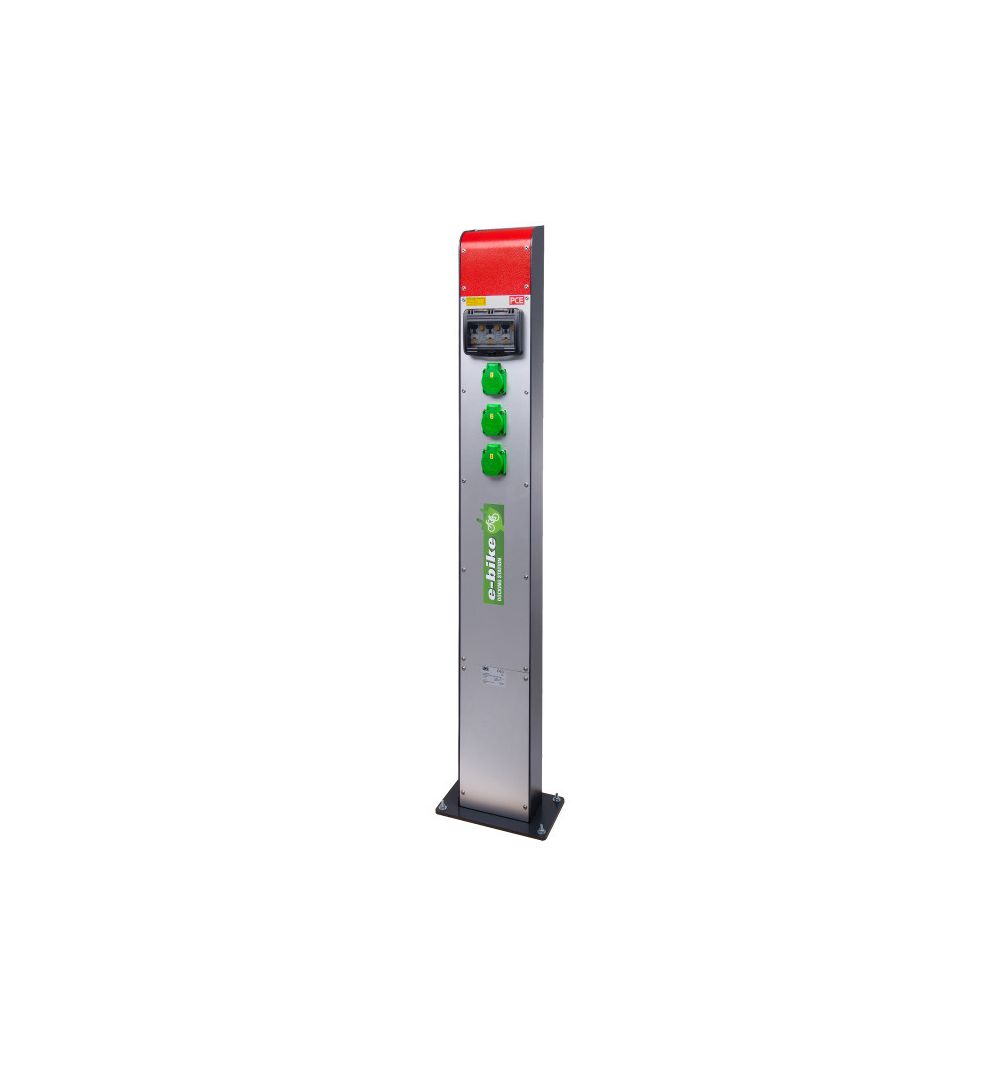

PCE 9081020 Charging station for e-bikes 3xSK-sockets 16A 250V IP54
9081020
Features:
steel column 1200x165x85mm (HxBxT) RAL 7016 IP54
Front aluminum sheet natural anodised
electric range: solid rubber distribution box model STEYREGG IP54 430x79x129
1xM25 cable gland from bottom (cable diam.: 13-18mm PG21) black
3xSK-sockets 16A 250V IP54 (green)
fused with 3x RCD/MCB 6A 1p+N 30mA C TYP A
RCD/MCB are Eaton ÖVE / VDE branded
distribution box is wired on Vario-Connectgor 5poles 10qmm
Construction and execution according to plan
PCE 9081020 Charging station for e-bikes 3xSK-sockets 16A 250V IP54 steel column 1200x165x85mm (HxBxT) RAL 7016 IP54 Front aluminum sheet natural anodised electric range: solid rubber distribution box model STEYREGG IP54 430x79x129 1xM25 cable gland from bottom (cable diam.: 13-18mm PG21) black 3xSK-sockets 16A 250V IP54 (green) fused with 3x RCD/MCB 6A 1p+N 30mA C TYP A RCD/MCB are Eaton ÖVE / VDE branded distribution box is wired on Vario-Connectgor 5poles 10qmm Construction and execution according to plan
9081020
Data sheet
- Applications
- e-Mobility
- CURRENT
- 16A
- VOLTAGE IN
- 250Vac
- NUMBER OF OUTPUTS
- 3
- CASE
- Acciaio Inox
- PROTECTION LEVEL
- IP54
- WEIGHT (kg)
- 1,6
- LENGTH (cm)
- 8,5
- WIDTH (cm)
- 16,5
- HEIGHT (cm)
- 120
- MANUFACTURER CODE
- 9081020
