thermoplastic wall mounted distribution box model ANIF4 IP54 320x222x114 10TE
incl. label (e-bike DOCKINGSTATION)
1xM20 cable gland on top (cable diameter 10-14mm PG16) grey
1x cable gland M20 with blind plug on bottom
3x flanged socket with earth contact 16A 250V IP54 (green) protected over 3xRCBO 6A 1p+N 30mA C TYPE A
RCBO by Eaton ÖVE / VDE branded
distribution box is ready wired on vario connector 5p 10qmm

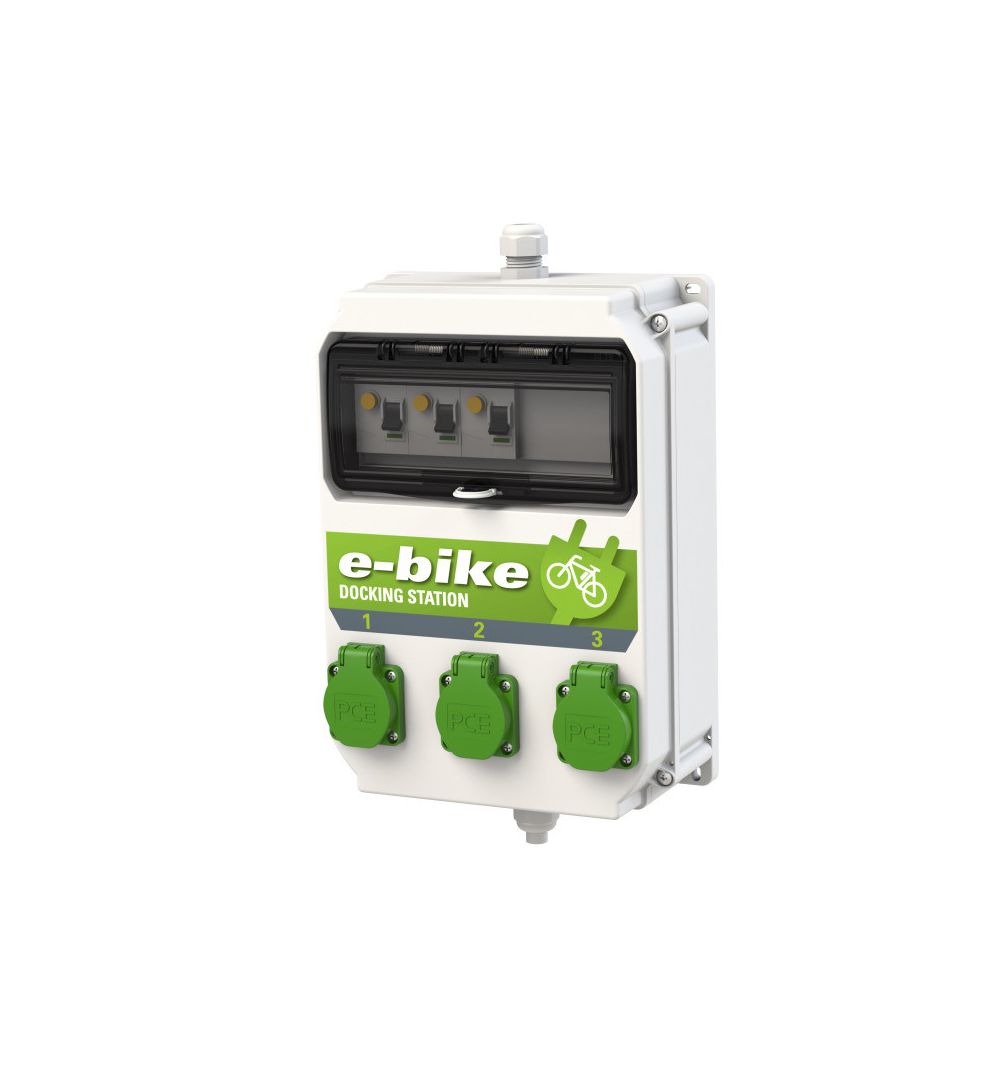

PCE 9134248 Charging station for e-bikes 3xSK-sockets 16A 250V Murau IP54
9134248
Features:
thermoplastic wall mounted distribution box model ANIF4 IP54 320x222x114 10TE
incl. label (e-bike DOCKINGSTATION)
1xM20 cable gland on top (cable diameter 10-14mm PG16) grey
1x cable gland M20 with blind plug on bottom
3x flanged socket with earth contact 16A 250V IP54 (green) protected over 3xRCBO 6A 1p+N 30mA C TYPE A
RCBO by Eaton ÖVE / VDE branded
distribution box is ready wired on vario connector 5p 10qmm
PCE 9134248 Charging station for e-bikes 3xSK-sockets 16A 250V Murau IP54 thermoplastic wall mounted distribution box model ANIF4 IP54 320x222x114 10TE incl. label (e-bike DOCKINGSTATION) 1xM20 cable gland on top (cable diameter 10-14mm PG16) grey 1x cable gland M20 with blind plug on bottom 3x flanged socket with earth contact 16A 250V IP54 (green) protected over 3xRCBO 6A 1p+N 30mA C TYPE A RCBO by Eaton ÖVE / VDE branded distribution box is ready wired on vario connector 5p 10qmm
9134248
Data sheet
- Applications
- e-Mobility
- CURRENT
- 16A
- VOLTAGE IN
- 250Vac
- NUMBER OF OUTPUTS
- 3
- CASE
- Plastico
- PROTECTION LEVEL
- IP54
- WEIGHT (kg)
- 1,6
- LENGTH (cm)
- 25,5
- WIDTH (cm)
- 11,4
- HEIGHT (cm)
- 20,4
- MANUFACTURER CODE
- 9134248
