thermoplastic wall mounted distribution box model MURAU IP54
label (e-bike DOCKINGSTATION) included
earthing pin plug 16A 2p+PE 230V IP44 Dual grounding system
1xM20 cable gland on top (cable diam.: 10-14mm PG16) grey
1xM20 cable gland with blind plugs grey from bottom
2x flanged socket with earth contact 16A 250V IP54 (green) fused with 2xRCBO 6A 1p+N 30mA C TYPE A
RCBO by Eaton ÖVE / VDE branded
distribution box is ready wired on Vario-Connector 3poles 10qmm

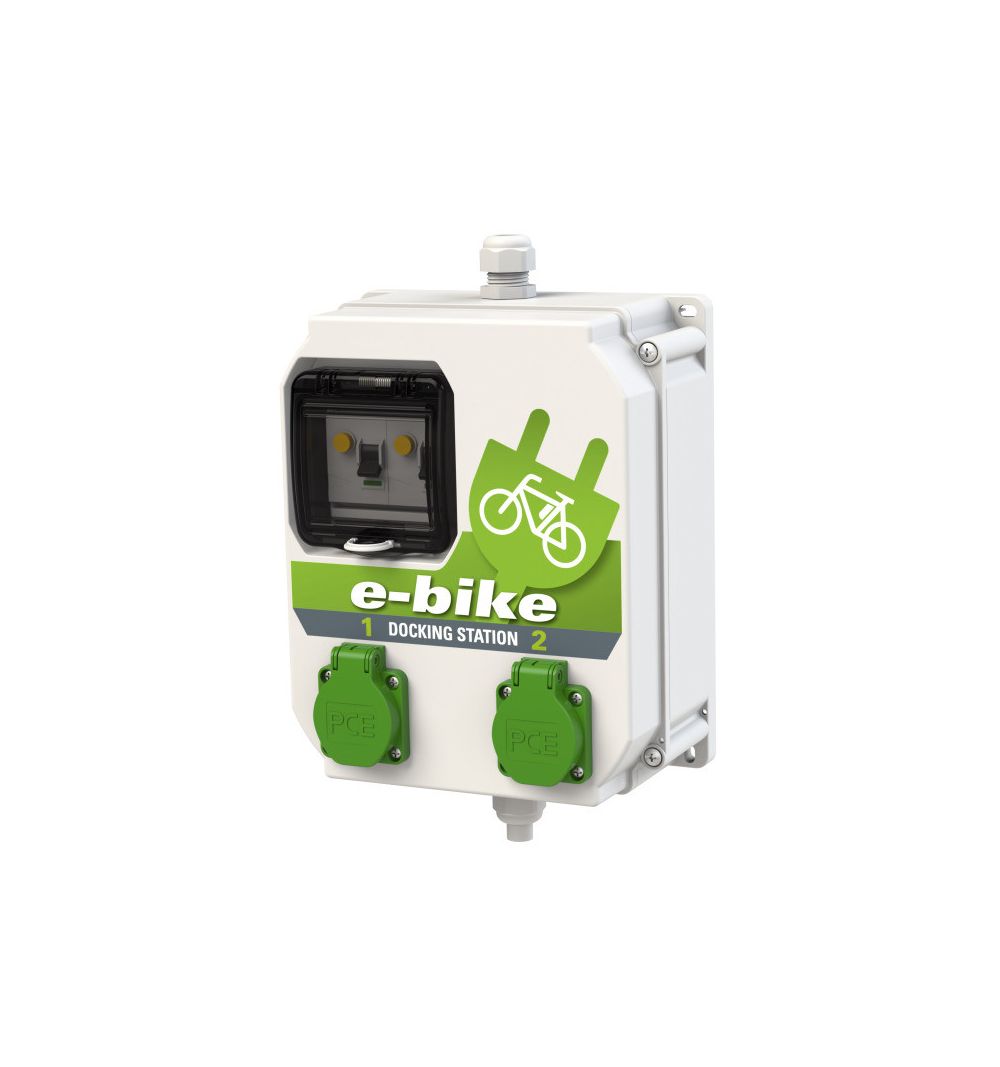

PCE 9013024 Charging station for e-bikes 2xSK-sockets 16A 250V Murau IP54
9013024
Features:
thermoplastic wall mounted distribution box model MURAU IP54
label (e-bike DOCKINGSTATION) included
earthing pin plug 16A 2p+PE 230V IP44 Dual grounding system
1xM20 cable gland on top (cable diam.: 10-14mm PG16) grey
1xM20 cable gland with blind plugs grey from bottom
2x flanged socket with earth contact 16A 250V IP54 (green) fused with 2xRCBO 6A 1p+N 30mA C TYPE A
RCBO by Eaton ÖVE / VDE branded
distribution box is ready wired on Vario-Connector 3poles 10qmm
PCE 9013024 Charging station for e-bikes 2xSK-sockets 16A 250V Murau IP54 thermoplastic wall mounted distribution box model MURAU IP54 label (e-bike DOCKINGSTATION) included earthing pin plug 16A 2p+PE 230V IP44 Dual grounding system 1xM20 cable gland on top (cable diam.: 10-14mm PG16) grey 1xM20 cable gland with blind plugs grey from bottom 2x flanged socket with earth contact 16A 250V IP54 (green) fused with 2xRCBO 6A 1p+N 30mA C TYPE A RCBO by Eaton ÖVE / VDE branded distribution box is ready wired on Vario-Connector 3poles 10qmm
9013024
Data sheet
- Applications
- e-Mobility
- CURRENT
- 16A
- VOLTAGE IN
- 230Vac
- NUMBER OF OUTPUTS
- 2
- CASE
- Plastico
- PROTECTION LEVEL
- IP54
- WEIGHT (kg)
- 1,6
- LENGTH (cm)
- 25,5
- WIDTH (cm)
- 11,4
- HEIGHT (cm)
- 20,4
- MANUFACTURER CODE
- 9013024
