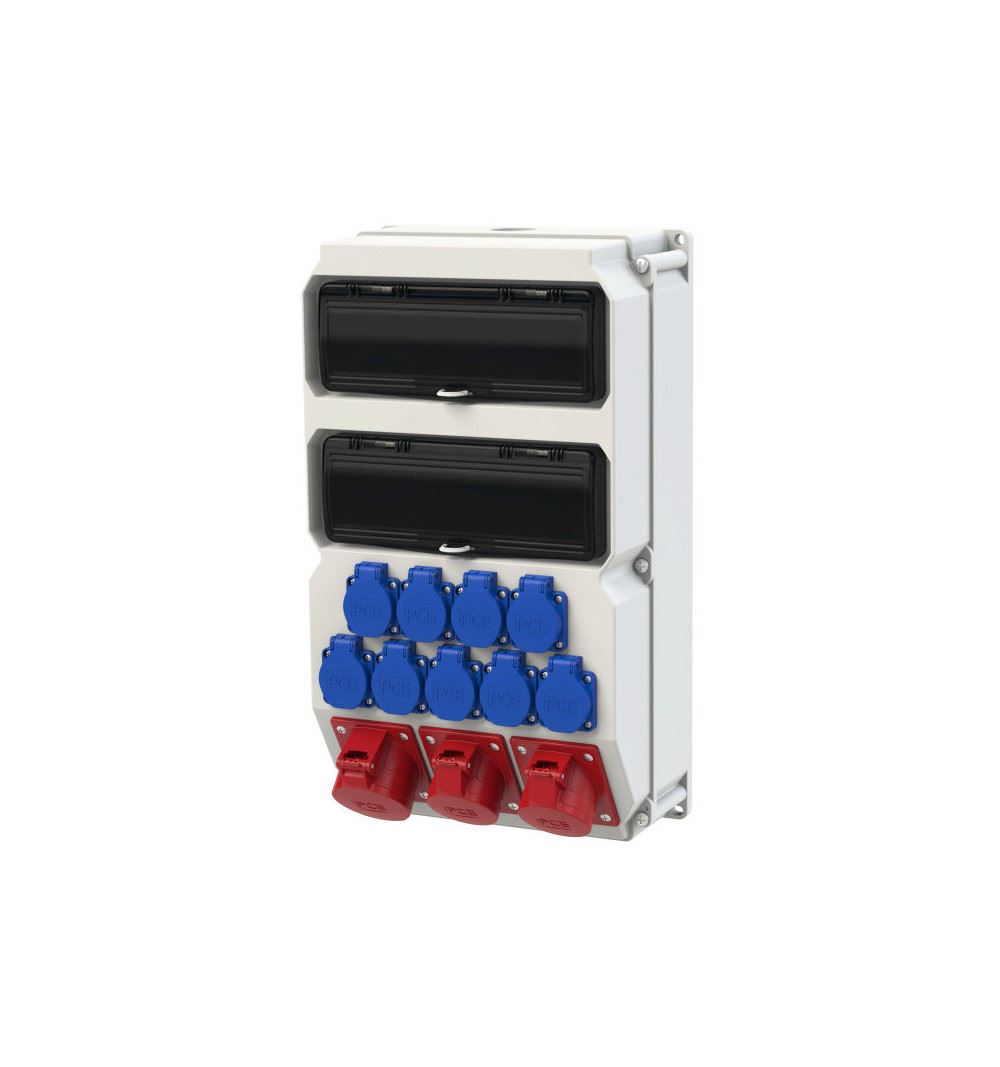

thermoplastic insulated distribution box - wall mounting SOLDEN series IP54 520x297x165 2x14TE BOT
1x M40 electrifying holes at the top, 1x M40 blind cable gland from below
1x CEE 32A 5p 400V socket protected with 1xMCB 32A 3p C
2x CEE 16A 5p 400V socket protected with 2xMCB 16A 3p C
9x safety sockets DIN49440 16A 250V IP54 protected with 9xMCB 16A 1p C
1xRCD 63A / 4 / 0.03A (TYP A 63AT) on all sockets
MCB and RCD made by Eaton ÖVE / VDE
the distribution box is wired on terminals up to a maximum of 5x25qmm (flexible cable 5x16qmm)

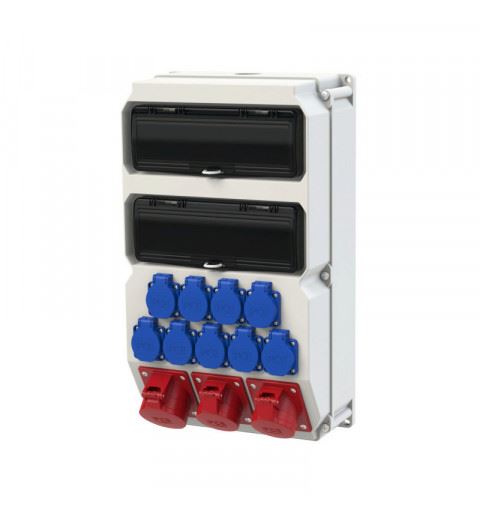

9028883 PCE Wall mounted plastic distribution box Sölden
9028883
Features:
thermoplastic insulated distribution box - wall mounting SOLDEN series IP54 520x297x165 2x14TE BOT
1x M40 electrifying holes at the top, 1x M40 blind cable gland from below
1x CEE 32A 5p 400V socket protected with 1xMCB 32A 3p C
2x CEE 16A 5p 400V socket protected with 2xMCB 16A 3p C
9x safety sockets DIN49440 16A 250V IP54 protected with 9xMCB 16A 1p C
1xRCD 63A / 4 / 0.03A (TYP A 63AT) on all sockets
MCB and RCD made by Eaton ÖVE / VDE
the distribution box is wired on terminals up to a maximum of 5x25qmm (flexible cable 5x16qmm)
9028883 PCE Sölden wall-mounted plastic distribution box CEE socket 16 A 2x16A5p400V CEE 32 A socket 1x32A5p400V Number of sockets with protective contact (SCHUKO) 9
9028883
Data sheet
- Applications
- Industrial Automation
- CURRENT
- 32A
- VOLTAGE IN
- 400V
- NUMBER OF OUTPUTS
- 9
- CASE
- PC/ABS
- PROTECTION LEVEL
- IP54
- WEIGHT (kg)
- 0,9267
- MANUFACTURER CODE
- 9028883
