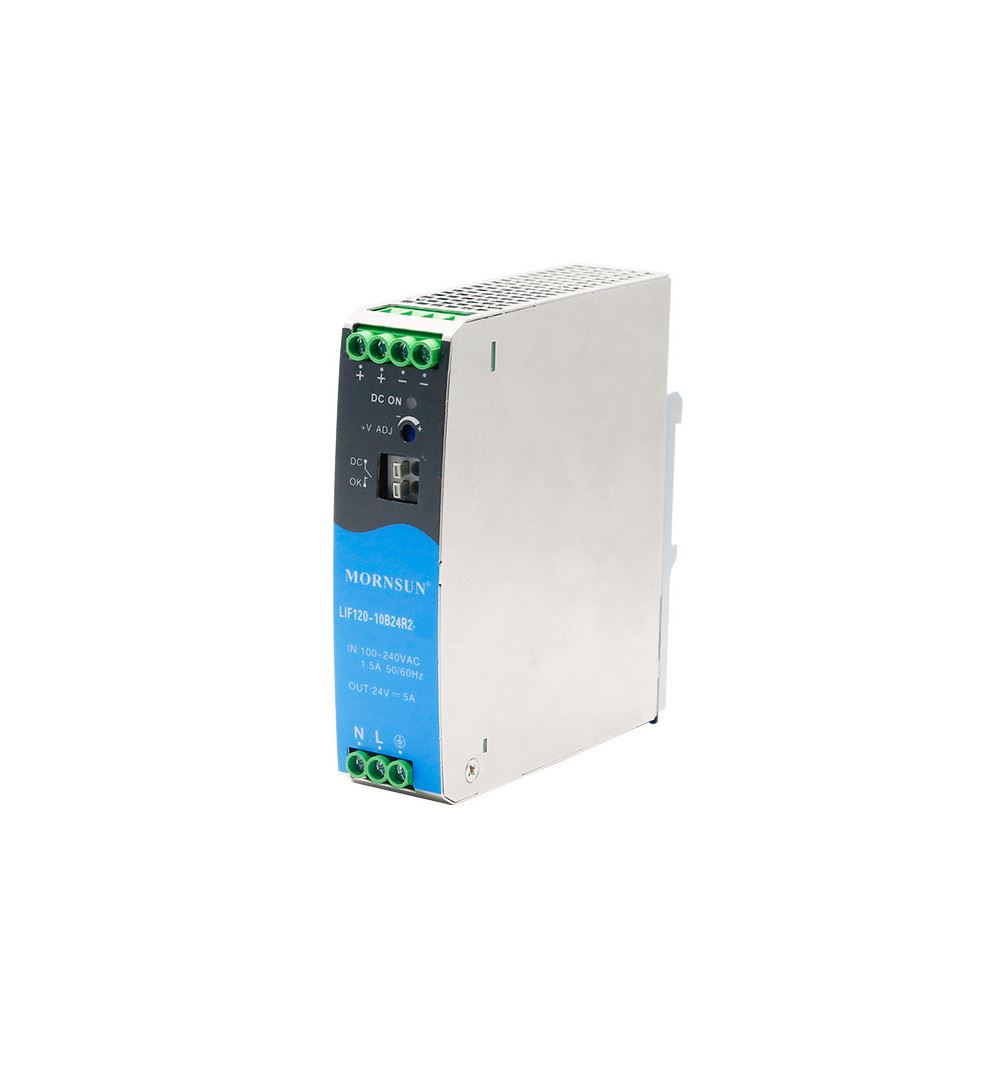

Mornsun LIF120-10B24R2 Din-Rail AC/DC power supply 120watt 24Vdc
LIF120-10B24R2
Features:
Input voltage 85-264 Vac or 120-370 Vdc
Operating temperature: from -40 ° C to + 70 ° C
High efficiency up to 94%
Active PFC
150% peak load output for 3 seconds
DC ON output status indicator LED
Output short circuit, over current, over voltage, over temperature protection
Safety according to IEC / EN / UL62368, UL61010, UL508
Mornsun LIF120-10B24R2 Din-Rail AC/DC power supply 120watt 24Vdc
LIF120-10B24R2
Data sheet
- Applications
- Industrial Automation
- POWER
- 120watt
- VOLTAGE OUT
- 24Vdc
- CURRENT
- 5A
- VOLTAGE IN
- 82-264Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Din-Rail
- PROTECTION LEVEL
- no IP
- WEIGHT (kg)
- 0,49
- LENGTH (cm)
- 11
- WIDTH (cm)
- 3,2
- HEIGHT (cm)
- 12,4
- MANUFACTURER CODE
- LIF120-10B24R2
New
