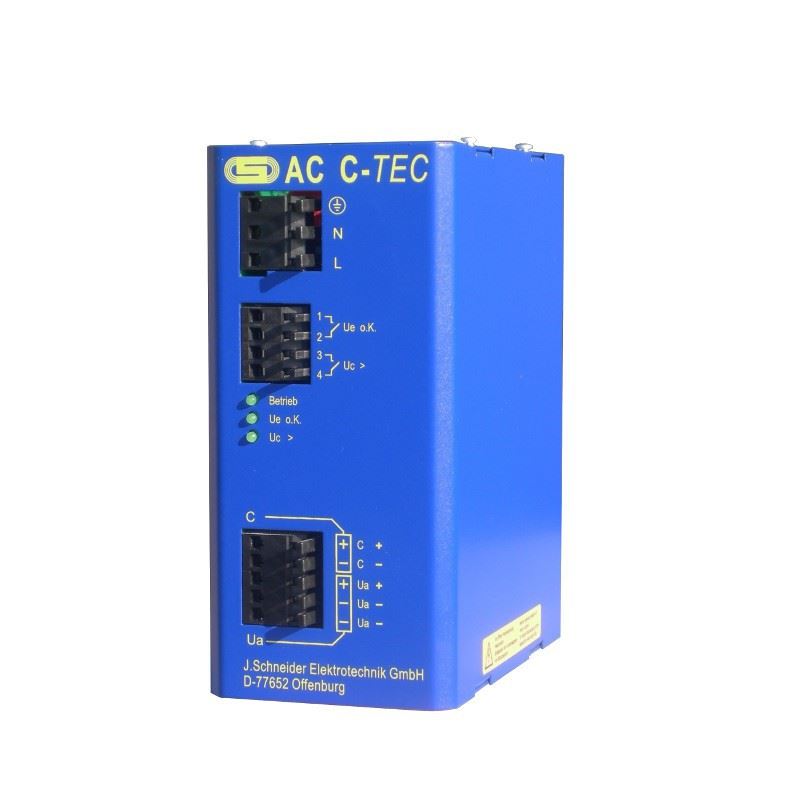

DC-UPS SuperCaps J.Schneider AC C-TEC 24V
Features:
J. Schneider Elektrotechnik buffered DC power supply of the AC C-TEC series includes ultra-capacitors as energy storage inside the housing. During normal operation this capacitor is charged from AC-mains. The connected DC consumers are supplied as well from AC mains. In case of an interruption of the AC supply, the energy of the ultra-capacitor is realesed regulated. With a dc/dc converter the load is supplied from the capacitor until it is discharged. The backup time depends on the state of charge of the capacitor and the discharge current.
Features:
- Maintenance-free because of long-life ultra-capacitors
- Microcontroller based charging and discharging of the ultra-capacitors
- Control of operation and status of charge with potential-free contacts and LED
- Capacity extension possible with external capacitor extension modules
Technical Data | |
Nominal input voltage | 115V … 230VAC (±15%) |
Input voltage range for charging operation | 97,8V … 264,5VAC |
Nominal frequency | 47Hz … 63Hz |
Max. nominal input current | 0,84A @ 115VAC |
0,42A @ 230VAC | |
Max. inrush current | 30A / 2ms |
Nominal output current max. | 3ADC (bei 0,94 kJ) |
Nominal output current at max. energy | 2 A DC (bei 1,0 kJ) |
Current limitation | 1,05 … 1,5 x INenn |
Nominal output voltage (in mains operation) | 24,3VDC ±2% |
Output voltage (in back-up operation) | 23,5VDC ±2% |
Energy | 1 kJ |
Max power loss ‚worst-case‘ | 12W |
efficiency | 88% @ (Ue=230VAC; Ua=24,3VDC; Ia=INenn) |
Internal device protection | 2,5A (T), 250V |
Fuse DC-output circuit (external) | 3,15A (T) |
Type of connection: input Ue | screw terminal max. 2,5mm² 0,5-0,6 Nm |
Type of connection: output Ua | screw terminal max. 2,5mm² 0,5-0,6 Nm |
Type of connection: message contact | screw terminal max. 2,5mm² 0,5-0,6 Nm |
Max. load message contact (Uc> NOTEREF _Ref402518157 \h \* MERGEFORMAT 1 ) | 30V/ 0,5A |
potentialfree relay contact | |
Protective system | IP20 u. EN60529 |
Environmental temperature | -40°C … 60°C |
Storage temperature | -40°C … 60°C |
Rel. humidity | ≤95% condensation not permissible |
Max. mounting height (without load reduction) | 2000above sea level |
Dimensions (H x W x D) | 152,5mm, 72mm, 130mm |
weight | 0,85Kg |
Fixation | Snap-on mountingfor DIN top hat rail |
or mounting bracket for mounting plate | |
UL approvals | UL 508 |
C22.2 |
