Highest Power Density 10/15kW in 3U
High Current up to 1,000ADC
Wide Range of popular worldwide Three Phase AC Inputs
Power Factor 0.88 (Passive Correction on all Inputs)
Output Voltage up to 1500V, Current up to 1,000A

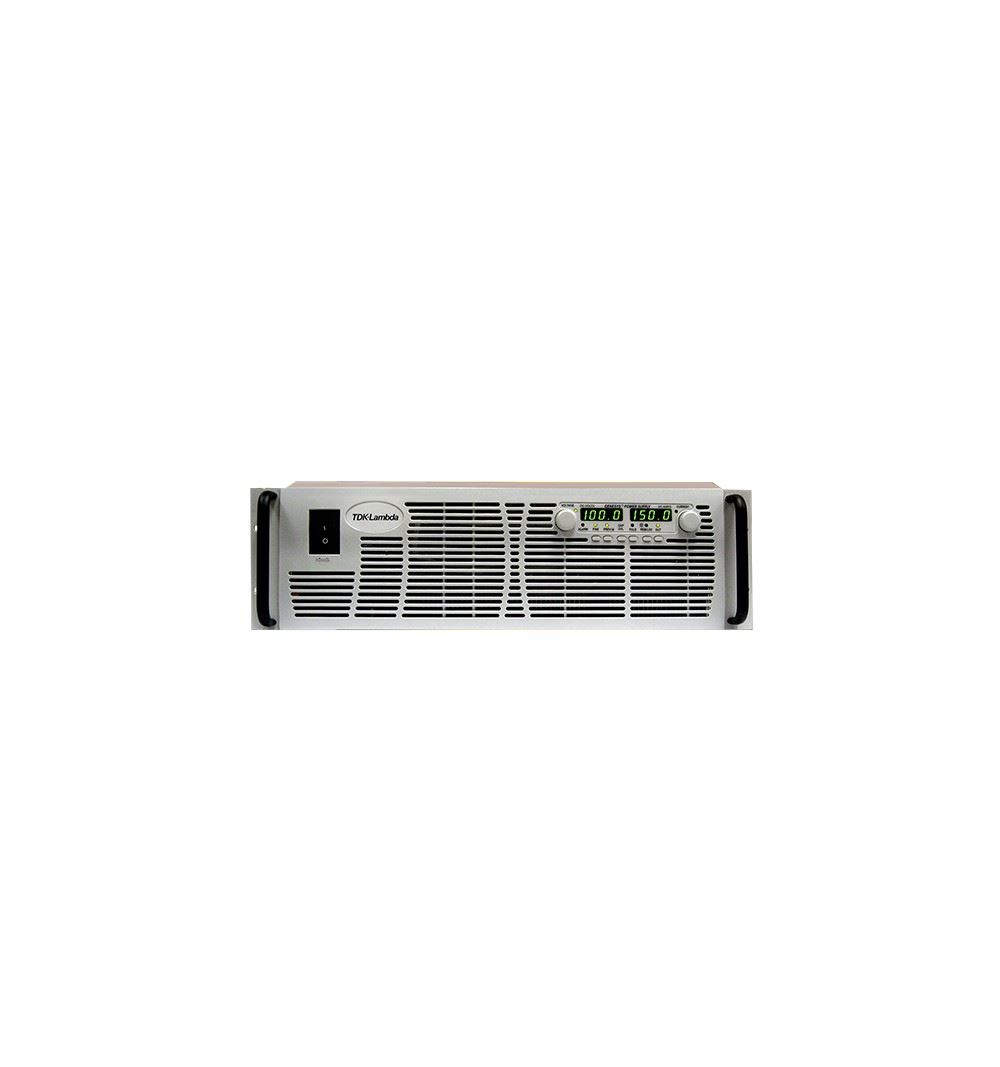

TDK-Lambda GEN10-1000-3P400 Programmable Power Supply 0-10Vdc 0-1000A Three Phase
GEN10-1000-3P400
Features:
Highest Power Density 10/15kW in 3U
High Current up to 1,000ADC
Wide Range of popular worldwide Three Phase AC Inputs
Power Factor 0.88 (Passive Correction on all Inputs)
Output Voltage up to 1500V, Current up to 1,000A
352 built in RS232&484 and non Isolated Analogue Interface - Option: LAN (LXI Class C) - Isolated Analogue Interface IS510/IS420 - IEEE 488.2(GPIB)
GEN10-1000-3P400
Data sheet
- Applications
- Laboratory
- POWER
- 10000watt
- VOLTAGE OUT
- 0-10Vdc
- CURRENT
- 0-1000A
- VOLTAGE IN
- 342-460Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- WEIGHT (kg)
- 15,5
- LENGTH (cm)
- 66,5
- WIDTH (cm)
- 42,3
- HEIGHT (cm)
- 13,6
- MANUFACTURER CODE
- GEN10-1000-3P400
New
