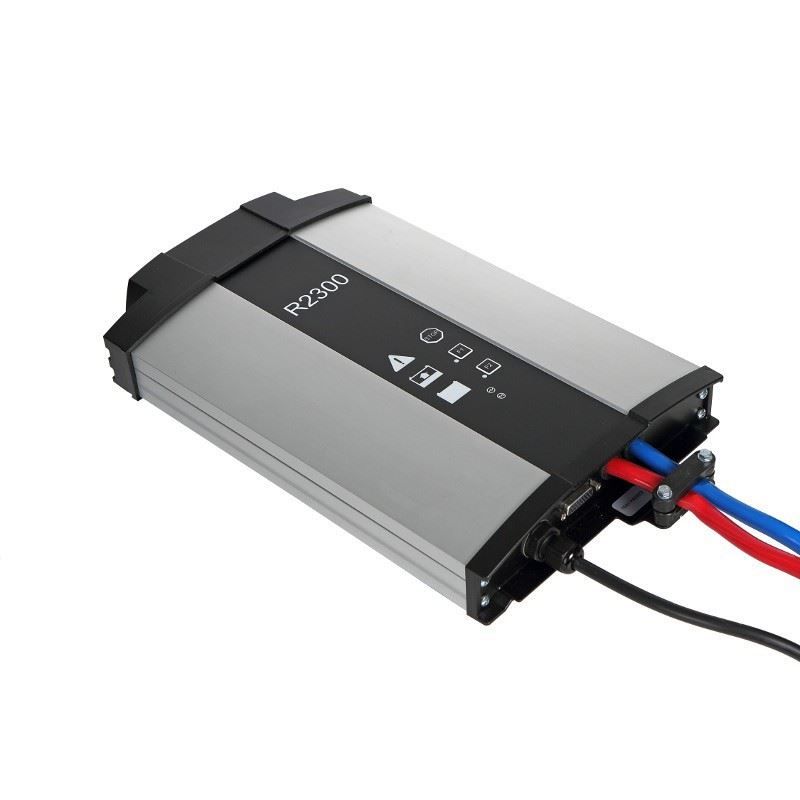

POWERFINN BATTERY CHARGER ROBUST 1100, 2300 & 3000

Datasheet Download

Features:

Powerfinn Battery Chargers 1100W, 2300W & 3000W IP54 optional IP66


  • Output power 1100W, 2300W & 300W
  •
  • Low standby power consumation
  •
  • High efficiency up to 95%
  •
  • IP54 (IP66 optional)
  •
  • Passive cooling (1100W)
  •
  • Forced air cooling through heatsink
  •
  • Designed for harsh enviroment​
  •
  • Also a power supply model
  •
  • CAN Bus (optional)
    ;

Powerfinn Robust series chargers uses modern switching technology. The intelligent microcontroller extends the life of the battery by supervising the charging process. The charger are compact, silent and meets the EU safety and EMC requirements.
Protection class against water & dirt is IP54

Model 1100W Output Voltage and Current 24V 40A, 36V 22A & 48V 20

Model 2300W Output Voltage and Current 24V 80A, 36V 53A e 48V 40A

Model 3000W Output Voltage and Current 24V 105A e 48V 60A

Data sheet

Applications
Caricabatterie
Harsh environment
Railway
POWER
600W-1200W
1200W-2400W
2400W-5000W
OUTPUT
Single
PRODUCT RANGE
Enclosed
Rugged Harsh Environments
FIELD OF APPLICATION
Industrial
Transportation
