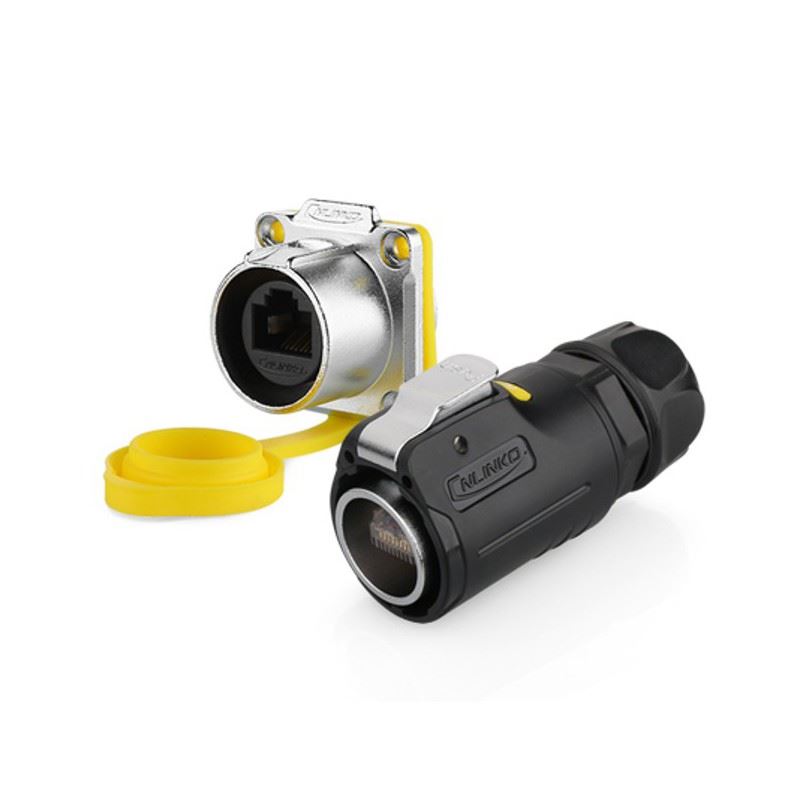

CnLinko industrial signal connectors RJ45 series LP-24
Features:
CnLinko industrial signal connectors RJ45 series LP-24 IP65/67
Features:
- Optional sockets (PCB, double Internet access, direct, upward Internet access, waterproof and non-waterproof);
- Optional connection methods (fast buckled style, plugging and pulling style, pushing and pulling style)
- Optional appearance (plastc, plastic + metal)
- Waterproof rubber gasket in the tail part.
Core advantages:
- Bayonet mount connection;
- Waterproof and shock resistant;
- Military standard;
- Reliable quality.
| Product parameter | |
| Part NO. | LP-24-RJ45 |
| Wire specification | 0.15mm2-0.2mm2/26-24 AWG |
| Line diameter range | Φ5.5mm-Φ7mm |
| Diameter×number | 8 |
| Rated current(A) | 1.5A |
| Operation voltage(AC.V.RMS) | / |
| Contact resistance | <30mΩ |
| Temperature rise | / |
| Withstand voltage (AC.V)1minute | 1000V |
| Insulation resistance | >500MΩ |
| Protection level | IP65/IP67 |
| Mating cycle | ≥500times |
| Working temperature | -40°C-80°C |
| Connection mode | Bayonet connection |
| Wiring mode | Welding / Crimping |
| Material | |
| Insulation components | High-performance engineering plastics |
| Hardware | Zinc alloy; Nickel Plating |
| PIN | Copper alloy; gold plating |
| Waterproof circle | Silica gel |
| Flame retardant grade | UL94-V0 |
