Convection cooling
Models for 24, 48, 60, 110, 220VDC
Max 8.0 kW output power (5.5kW for 24VDC
N+1 redundancy
Plus or Minus Grounded or Floating
Load Distribution 2-pole or 1-pole MCB
Options: Battery LVD, Load LVD, extra battery
connections, Temperature sensors, IP21

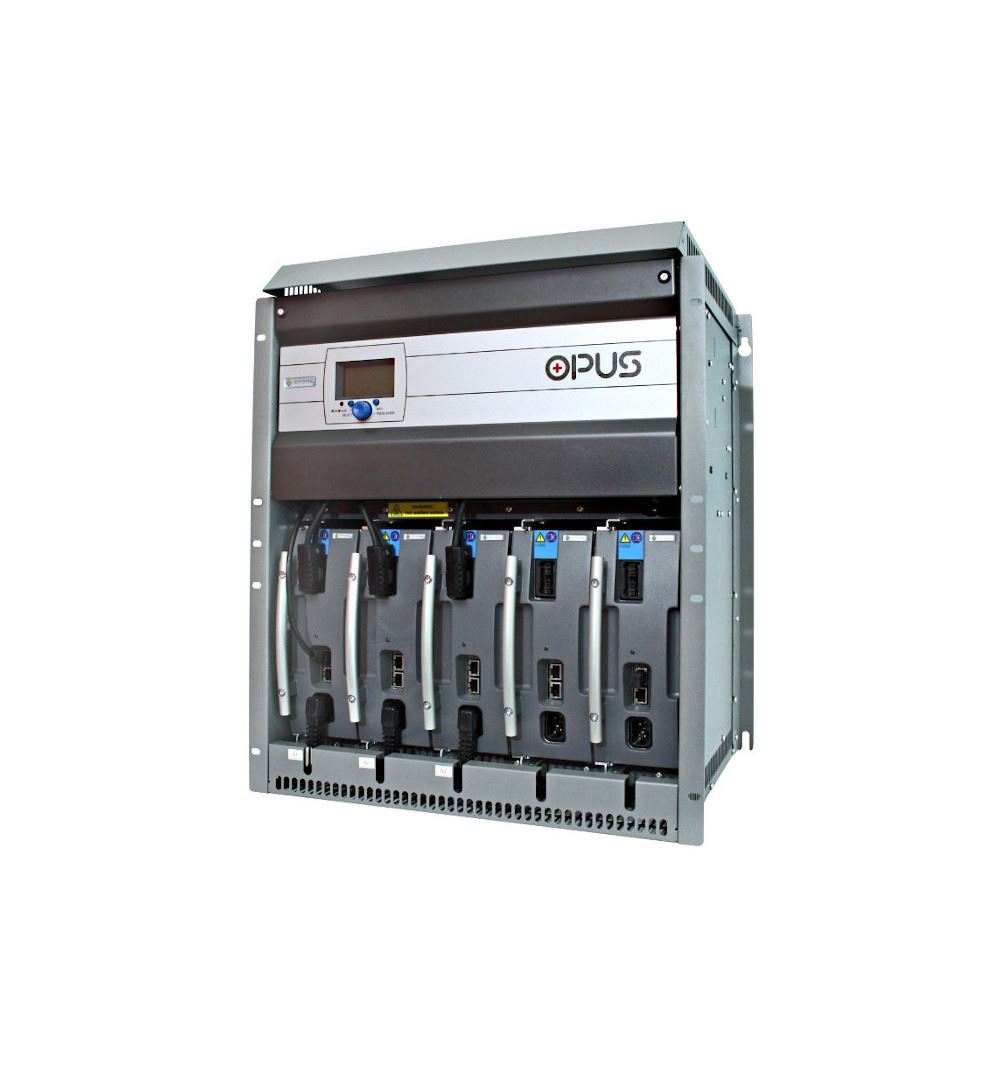

Enedo OPUS C 24 5.5 R 12U F Cabinet 12U-19" 24Vdc up to 5.5kW with 5 MRC modules slots
95MS012
Features:
Convection cooling
Models for 24, 48, 60, 110, 220VDC
Max 8.0 kW output power (5.5kW for 24VDC
N+1 redundancy
Plus or Minus Grounded or Floating
Load Distribution 2-pole or 1-pole MCB
Options: Battery LVD, Load LVD, extra battery
connections, Temperature sensors, IP21

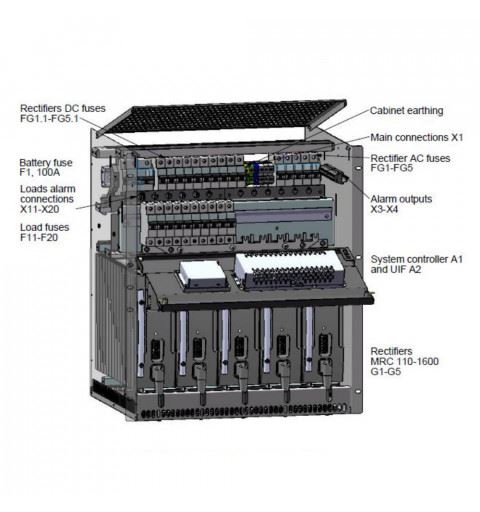

OPUS C DC power systems are robust, free convection cooled, N+1 redundant backup power solutions for critical infrastructure applications such as transmission and distribution substations, process industries and telecommunications. OPUS C DC power systems up to 8kW consist of MRC-rectifiers, VIDI+ controllers protection Up to 3x AC MCB 16A single-pole for the input MRC rectifier modules; 1x DC MCB 250A bipolar for battery protection. Distribution load up to 20x DC MCB 1-63A sinlge-pole or 10x DC MCB 1-63A bipolar.
95MS012
Data sheet
- Applications
- Industrial Automation
- POWER
- 5500watt
- VOLTAGE OUT
- 24Vdc
- CURRENT
- 229A
- VOLTAGE IN
- 230Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 21
- LENGTH (cm)
- 37
- WIDTH (cm)
- 48,2
- HEIGHT (cm)
- 53,3
- MANUFACTURER CODE
- 95MS012
