Compact design and low weight
Convection cooling with low noise
Easy installation
Models for 24, 48, 60, 110, 220Vdc
Max 1600 W output power
Battery MCB protection and shunt resistor

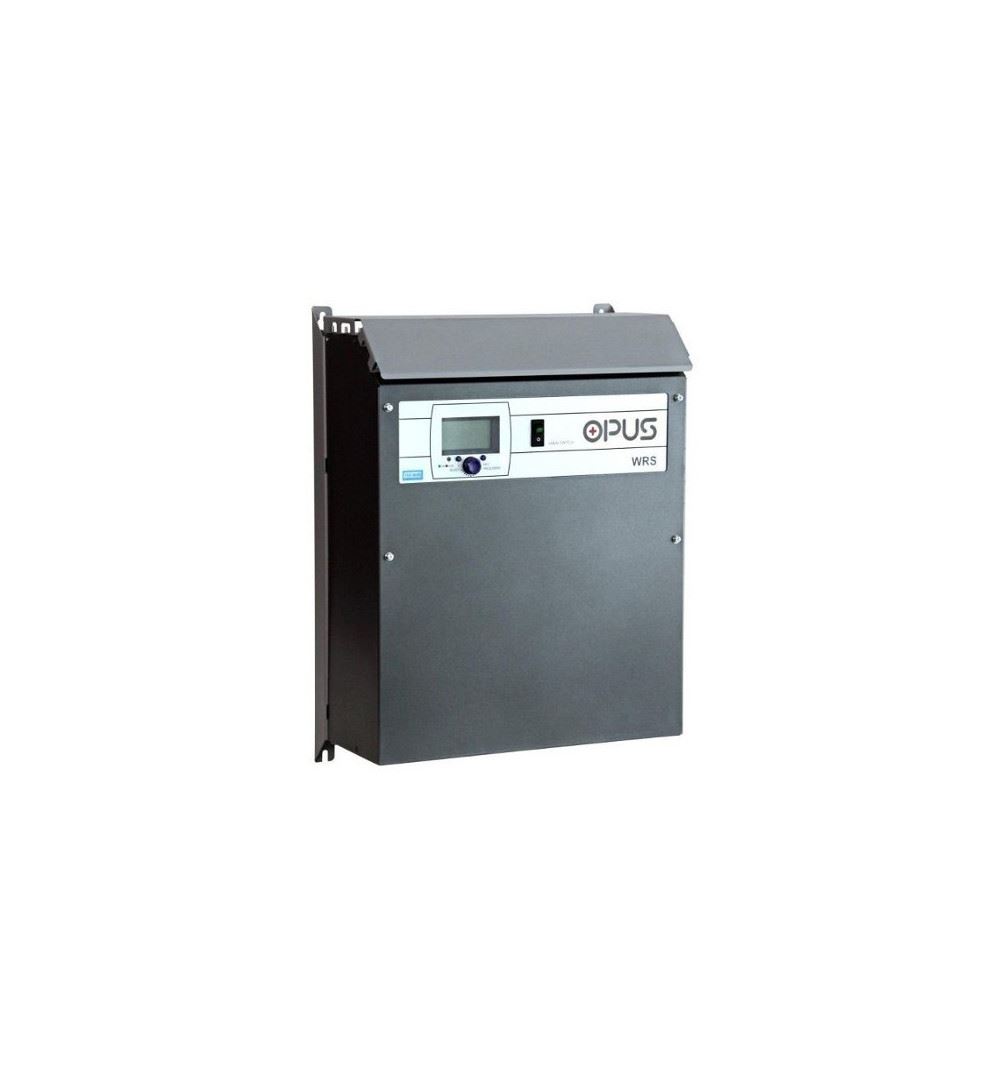

Enedo OPUS WRS 24-1100 F Wall Mounted battery charger 24Vdc 1.1kW
95H660
Features:
Compact design and low weight
Convection cooling with low noise
Easy installation
Models for 24, 48, 60, 110, 220Vdc
Max 1600 W output power
Battery MCB protection and shunt resistor
OPUS WRS are robust, free convection cooled wall mounted charger for critical infrastructure applications such as transmission and distribution substations, process industries and telecommunications. The system with 11.1kW have VIDI+ controllers and protections DC MCB C63A bipolar for battery protection and DC MCB C50A load side.
95H660
Data sheet
- Applications
- Industrial Automation
- POWER
- 1600watt
- VOLTAGE OUT
- 24Vdc
- CURRENT
- 45.8A
- VOLTAGE IN
- 230Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP21
- WEIGHT (kg)
- 14,5
- LENGTH (cm)
- 19,8
- WIDTH (cm)
- 38,5
- HEIGHT (cm)
- 52
- MANUFACTURER CODE
- 95H660
New
