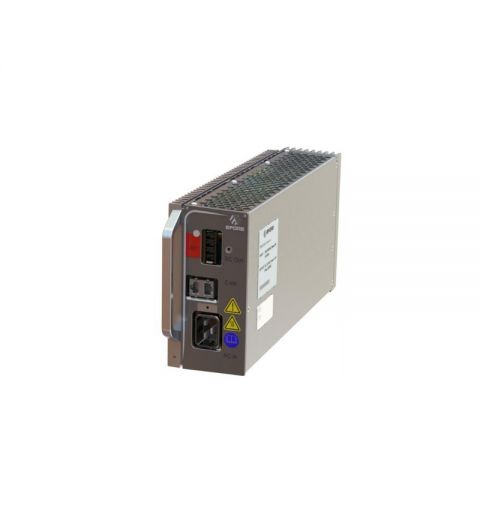

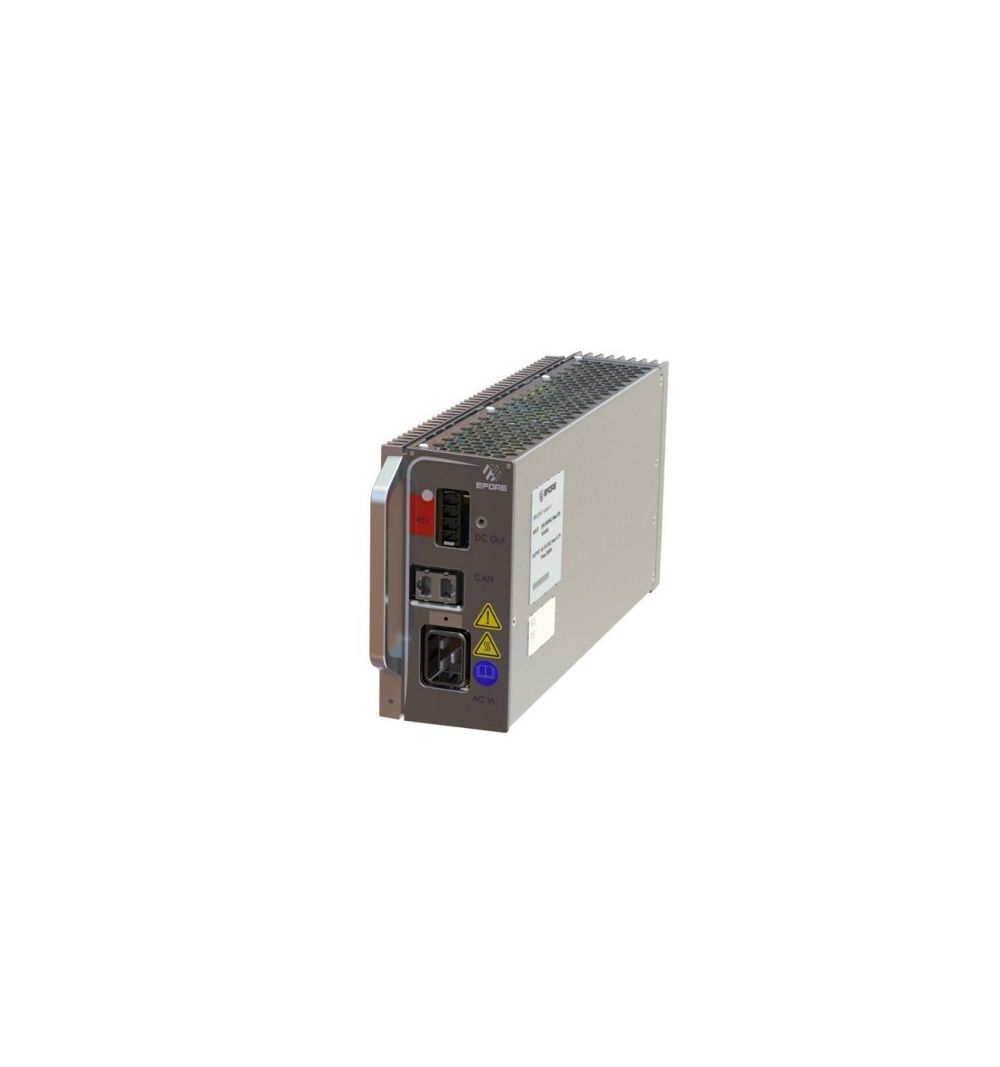

ENEDO MHE48-2000 Modulo rectifier 85-275Vac 48Vdc 2000W 41.7A

92I160

Datasheet Download

Features:

Efficiency up to97 %

Convection cooled – no fans

MTBF 1 800 000 h @ 25°C, Telcordia SR-332

Lacquered PCB for rail and metro applications

Soft-start generator input feature

Active load current sharing

Digital communication over CAN bus with ENEDO VIDI controller

Flexible design with full front cabling

EMC:Generic EN 61000-6-1 / -2 / -3 / -4

Power Utility EN61000-6-5

Railway EN 50121-4

Telecom ETSI EN 300386

Safety:EN/IEC/UL 62368-1 (EN/IEC/UL 60950-1)

EN 50124-1 Railway insulation coordination

The MHE rectifier utilizes ENEDO’s long experience and latest technology on high performance industrial power supplies. MHE rectifiers are designed to meet demanding requirements of utility, industrial, rail and telecom applications with high efficiency and reliability requirements. MHE rectifiers are convection cooled and requires no fans. Rated output power is 2000 W in 48 V – 220 V output versions and 1500 W in 24 V version. Rectifier input is single phase, range 85-300 VAC. Rectifiers can be operated either with a VIDI+ system controller or as stand-alone modules with or without batteries in the output.
92I160

Data sheet

Applications
Railway
POWER
2000W
VOLTAGE OUT
48Vdc
CURRENT
41,7A
VOLTAGE IN
180-275Vac
NUMBER OF OUTPUTS
1
CASE
Metallico
PROTECTION LEVEL
IP10
WEIGHT (kg)
4,6
LENGTH (cm)
35,7
WIDTH (cm)
8,3
HEIGHT (cm)
16,9
MANUFACTURER CODE
92I160
New
