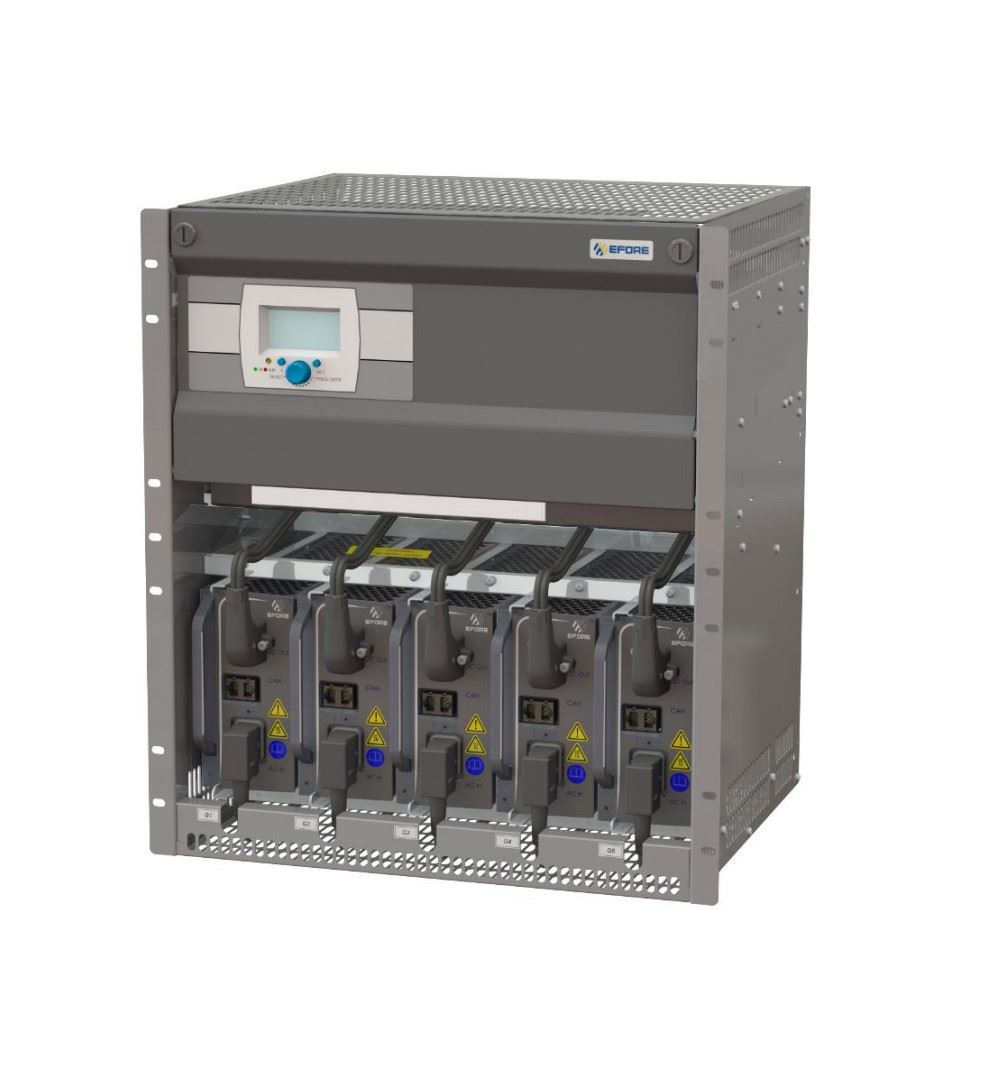

ENEDO OPUS HE 60-10.0 R 12U F Cabinet 12U-19" 60Vdc up to 10.0kW with 5 MHE modules slots
9220X0015103
Features:
Efficiency up to 97%
Convection cooling
Outputs 24, 48, 60, 110, 125, 220VDC
10.0 kW output power, 24VDC 7.5kW
Building block rack for cabinet integration,
VIDI+ I/O controller with remote and local
user interfaces
Flexible design with full front cabling
Safety:
Rack: EN61439-1, EN61439-2
Low voltage switchgear controlgear assemblies
Rectifiers: EN 62368-1, EN 50124-1 rail
EMC:
Rack: EN61439-1, EN61439-2
Rectifiers: EN 61000-6-1 / -2 / -3 / -4 / -5
EN 50121-4 rail, ETSI EN 300386 (48/60V)

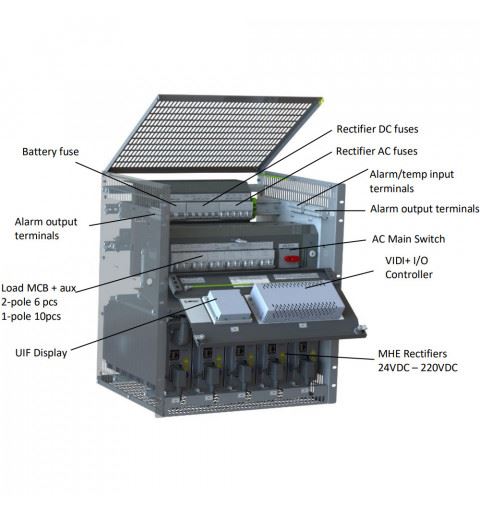

OPUS HE power systems are robust, free convection cooled, N+1 redundant backup power solutions for critical infrastructure applications such as transmission and distribution substations, process industries, railway signalling and substations and telecommunications. OPUS HE DC power systems consist of MHE rectifiers, VIDI+ controllers, Connections for mains and battery and load distribution. System is configurable to match with requirements of the application. 19" 12U Rack delivers maximum 10kW output power at 48, 60, 110, 125 and 220 VDC and 4.5 kW at 24 VDC output. 19" 12U Racks include slots for maximum 5 rectifier modules, battery breakers and shunt for one string and bulk DC load output. Wall mounting, IP21 cover kit, temperature sensor, battery block voltage monitoring and BLVD are options. Master-slave set-up can be used to increase power higher than 10kW. 1x MCB 4 poles 63A main switch 3x MCB 16A single-pole input MCB C40A output for rectifier 1x MCB D200A bipolar battery protection. Load distribution max 6 MCB 2-pole 2-63A+aux
9220X0015103
Data sheet
- Applications
- Industrial Automation
- POWER
- 10000watt
- VOLTAGE OUT
- 60Vdc
- CURRENT
- 166A
- VOLTAGE IN
- 230Vac
- NUMBER OF OUTPUTS
- 1
- CASE
- Metallico
- PROTECTION LEVEL
- IP20
- WEIGHT (kg)
- 15
- LENGTH (cm)
- 39,5
- WIDTH (cm)
- 48,2
- HEIGHT (cm)
- 53,3
- MANUFACTURER CODE
- 9220X0015103
